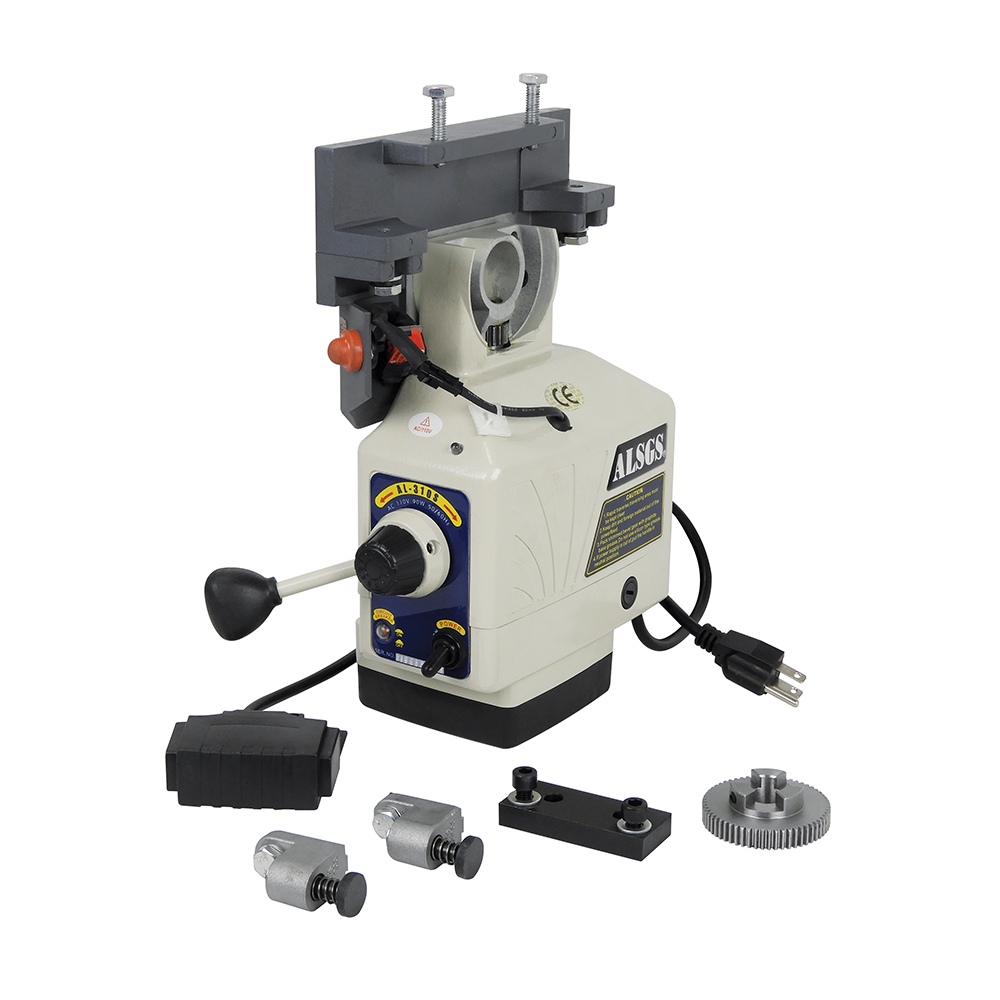

PFM-32 TABLE POWERFEED

TABLE POWERFEED

TABLE POWERFEED

MODEL: PFM-32

TABLE POWERFEED

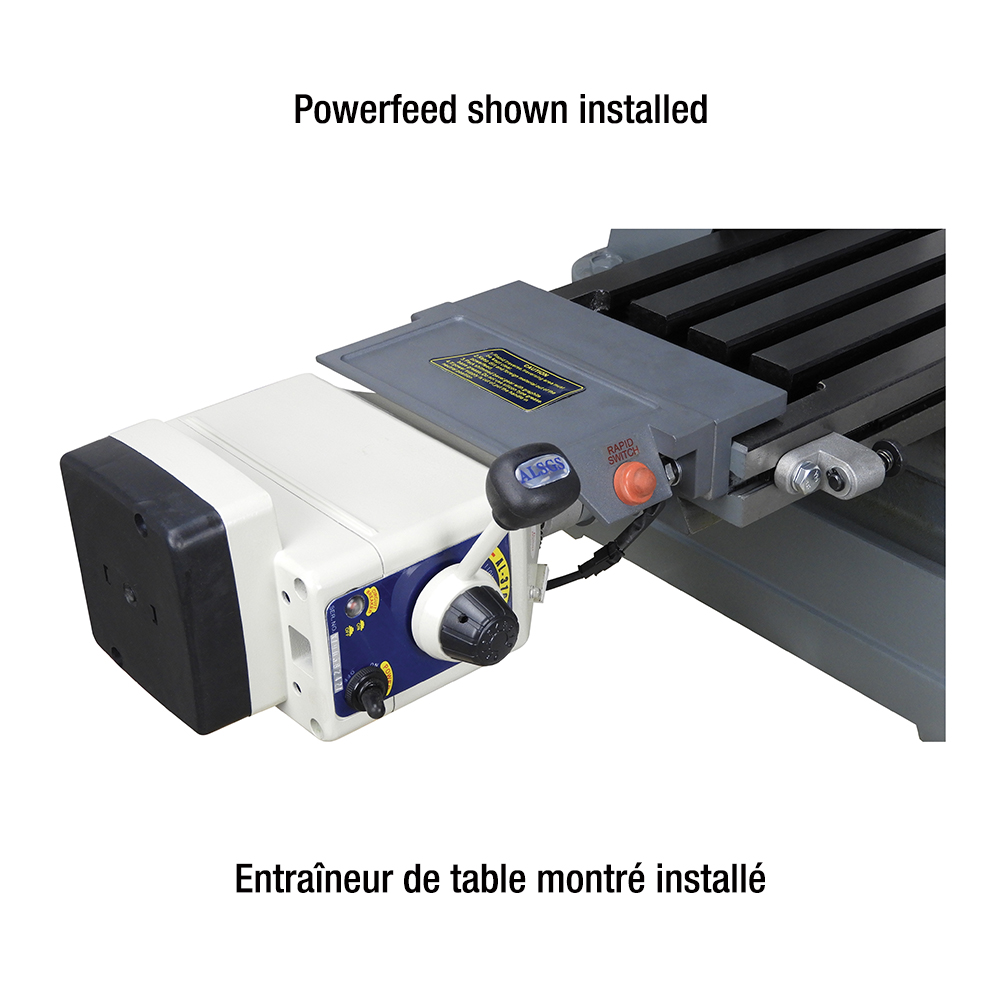

Powerfeed system for the X axis to provide a smooth, variable speed drive for the longitudinal travel of the table
Enables control of the cut finish to a much greater extent than achievable by hand
Simple controls for left/right movement
Overload protection

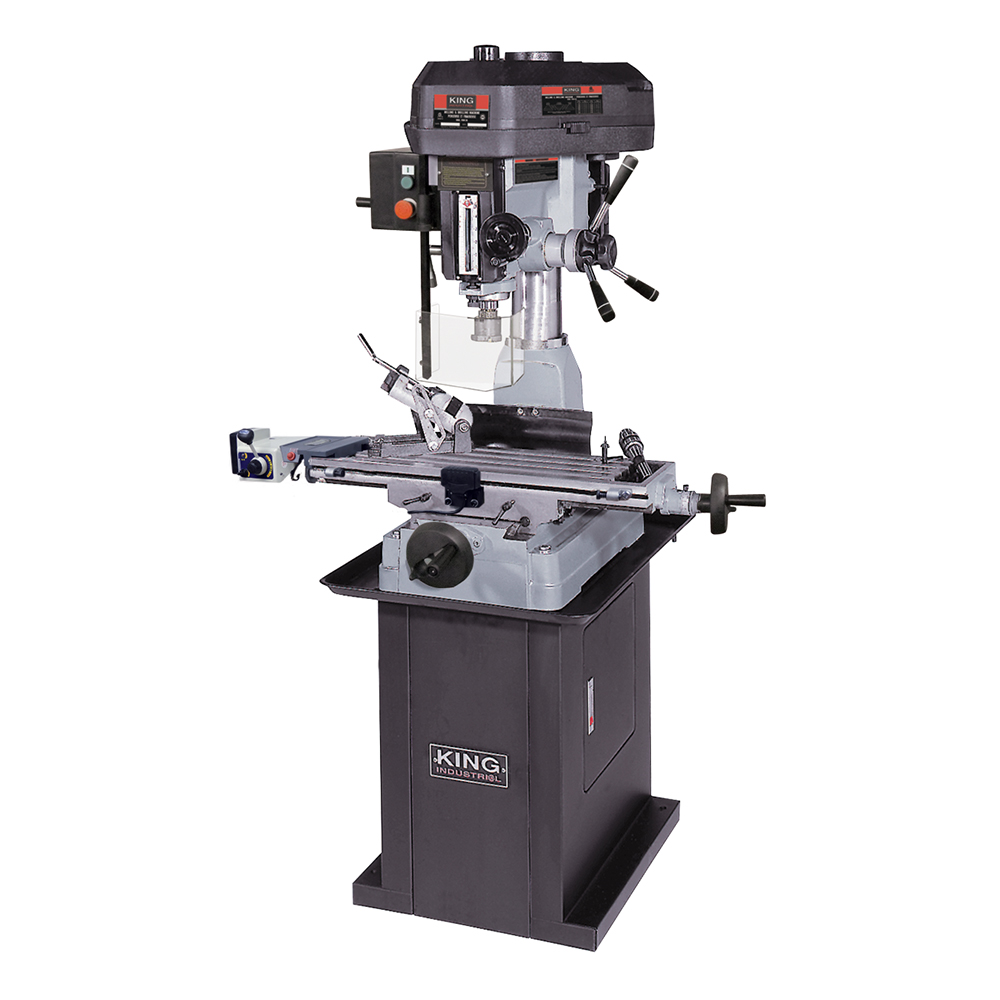

Fits models PDM-25, PDM-30, KC-45, KC-40HC, KC-40HC-6

Substitute Banks Item

UPC

772995300020

Add to Compare

Specification

Specification

Specification

TYPELongitudinal
speeds0 - 140 RPM
rapid speed200 RPM
torque450 lbs
motor2.5 Amp.
voltage110V, 1 phase, 60 Hz
weight15 lbs
UPC7 72995 30002 0
