MODEL: KC-689-OSC-FX-1

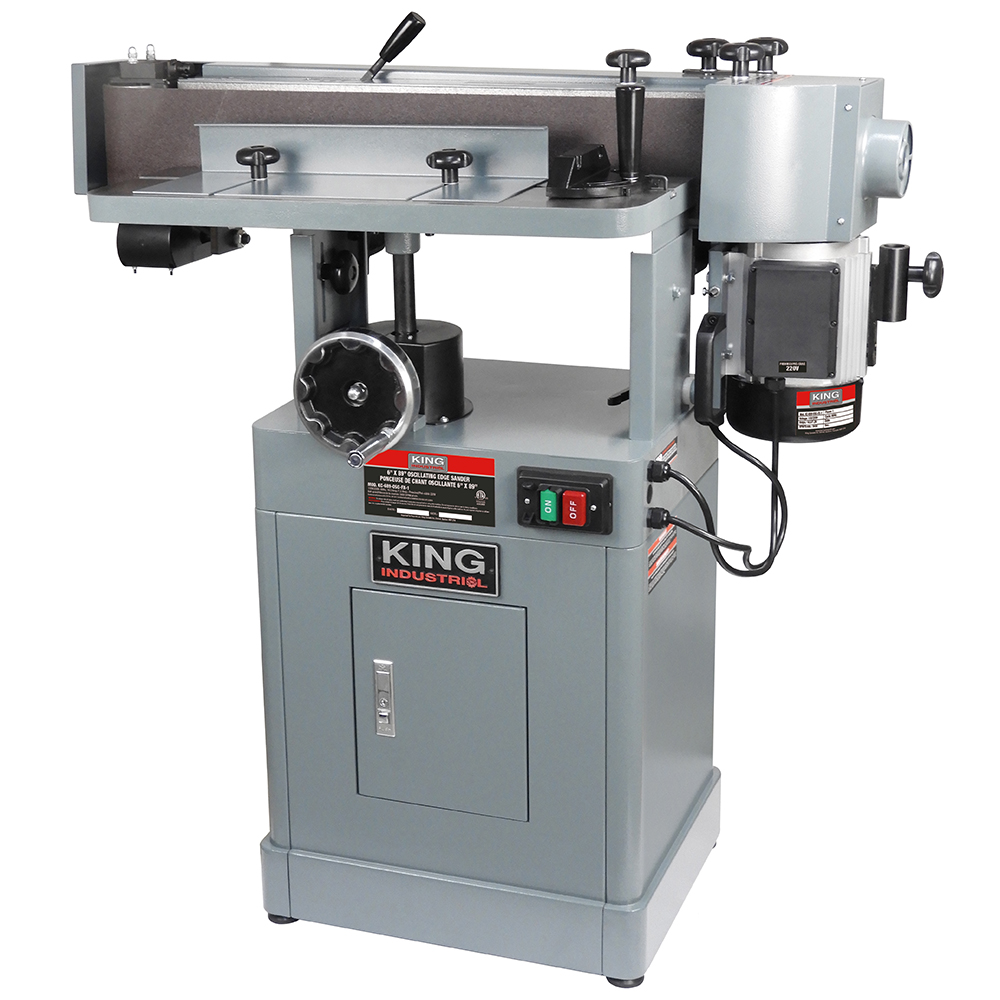

6" X 89" OSCILLATING EDGE SANDER

  • Powerful 2 HP motor
  • Heavy duty cast iron table construction
  • Front table can be adjusted to different heights to use different sections of the sanding belt using the table raising handwheel mechanism

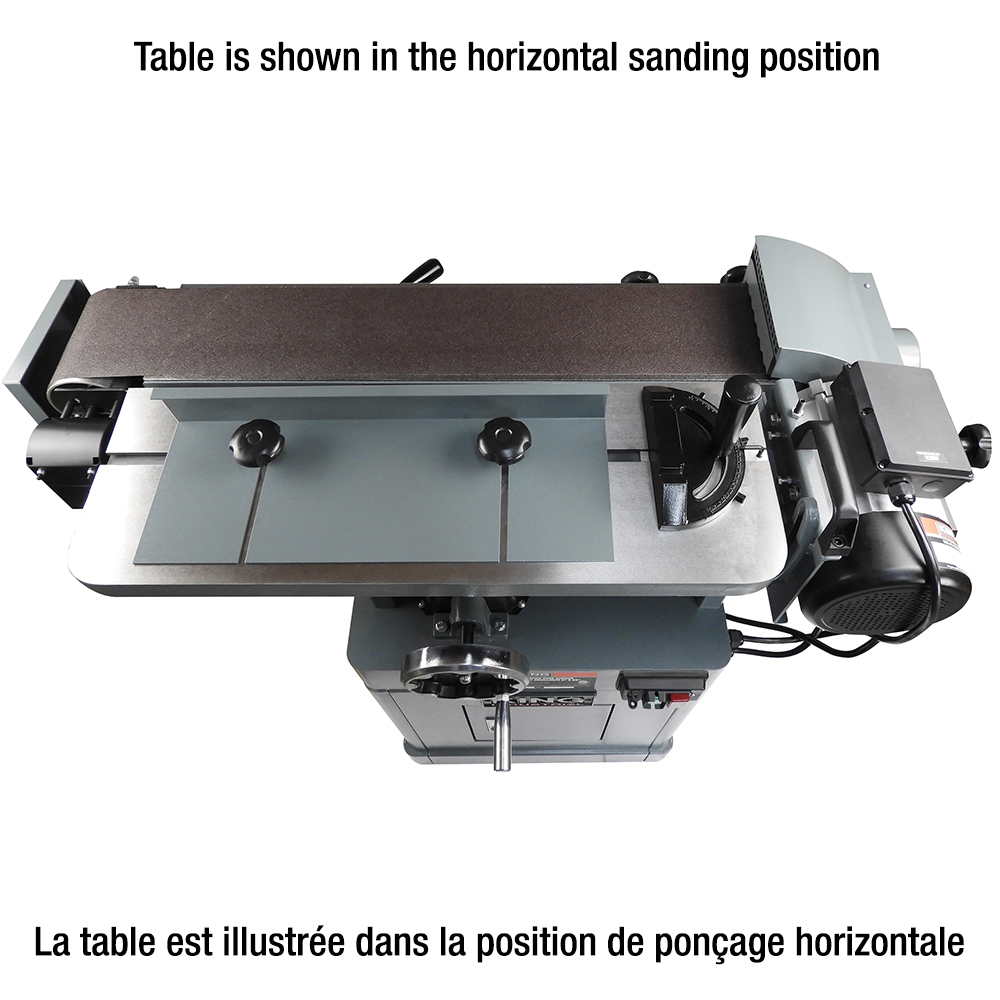

  • Head tilts 900 down for horizontal sanding operations
  • Graphite backing diminishes belt friction for increased sanding belt life
  • Quick belt release lever
  • Heavy-duty enclosed cabinet stand has built-in door for storage
  • 4” Dust chute for dust collector hook-up

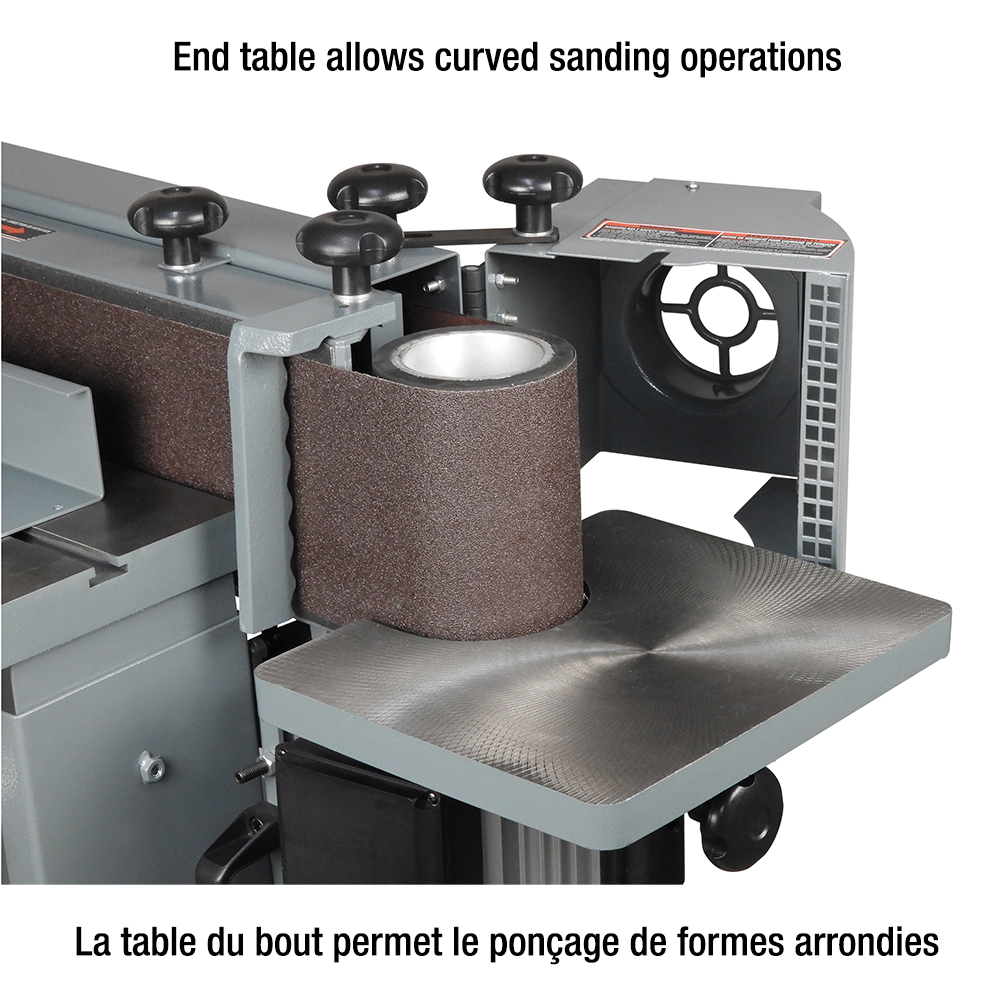

  • Comes with miter gauge, table guide and end table for curved sanding operations
Substitute Banks Item
UPC
772995022021

Specification

Specification

  • BELT6" x 89"
  • TABLE SIZE (FRONT)9-7/8" x 29-5/8"
  • TABLE SIZE (SIDE)9-7/8" x 11-7/8"
  • BELT SPEED3,850 SFPM
  • OSCILLATIONS STROKE1/2"
  • OSCILLATIONS PER MINUTE103
  • MOTOR14.5 Amp. @ 110V, 7.2 Amp. @ 220V
  • VOLTAGE120/240V, 1 phase, 60 Hz
  • PRE-WIRED AT240V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT48-1/4” x 26” x 47-1/2” / 265 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT55-1/8” x 25-1/2” x 24-1/2” / 340 lbs
  • UPC7 72995 02202 1
