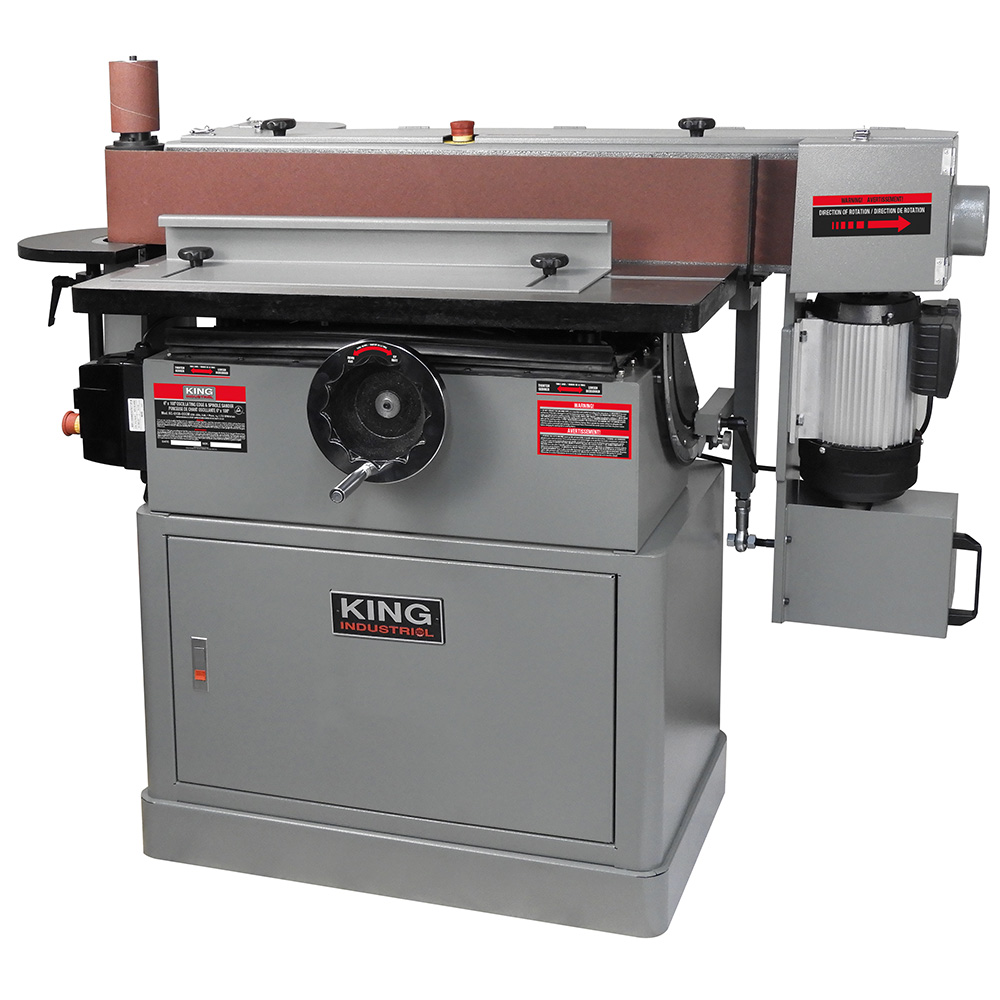

KC-6108-OSCM 6" X 108" OSCILLATING EDGE & SPINDLE SANDER Zoom

MODEL: KC-6108-OSCM

6" X 108" OSCILLATING EDGE & SPINDLE SANDER

  • Powerful 2 HP motor
  • Precision ground cast iron tables
  • Ocillating sanding belt tilts from 0º - 90º instead of the table

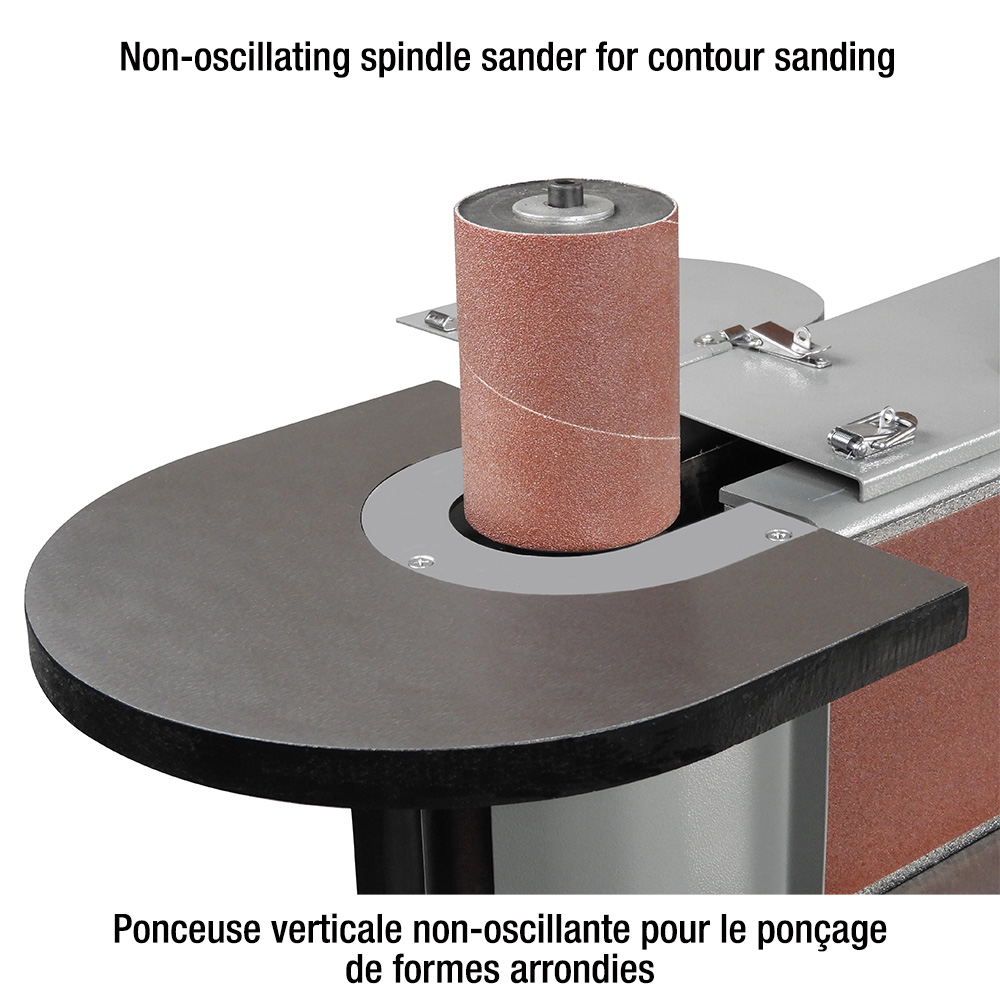

  • Features a non-oscillating spindle sander for contour sanding
  • Balanced 7” aluminum drive wheel and 4” idler rubber wheel ensure positive grip
  • Quick release sanding belt tension lever
  • Graphite pad diminishes belt friction for increasedsanding belt life
  • Two 4” dust chutes mounted on hinged safety guards provide optimal dust collection
  • Magnetic safety switch and top mounted emergency stop button
  • Includes miter gauge, work stop, three end-tableinserts and three 4-1/2” high spindle drums and sanding sleeves (1-1/2”, 2”, 3”)
Substitute Banks Item
UPC
772995022038
KING INDUSTRIAL

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • BELT6” x 108”
  • TABLE SIZE (FRONT)35-5/8” x 12”
  • TABLE SIZE (END TABLE)10” x 11-1/2”
  • BELT SPEED3,150 SFPM
  • BELT OSCILLATIONS STROKE3/4”
  • TABLE TRAVEL (UPWARD / FORWARD/BACK)4” / 4-1/2”
  • MOTOR9.4 Amp.
  • VOLTAGE220V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT60” x 28” x 49-1/2” / 485 lbs
  • PACKAGE DIMENSIONS (LxWxH) / WEIGHT58” x 32” x 44-1/2” / 550 lbs
  • UPC7 72995 02203 8
