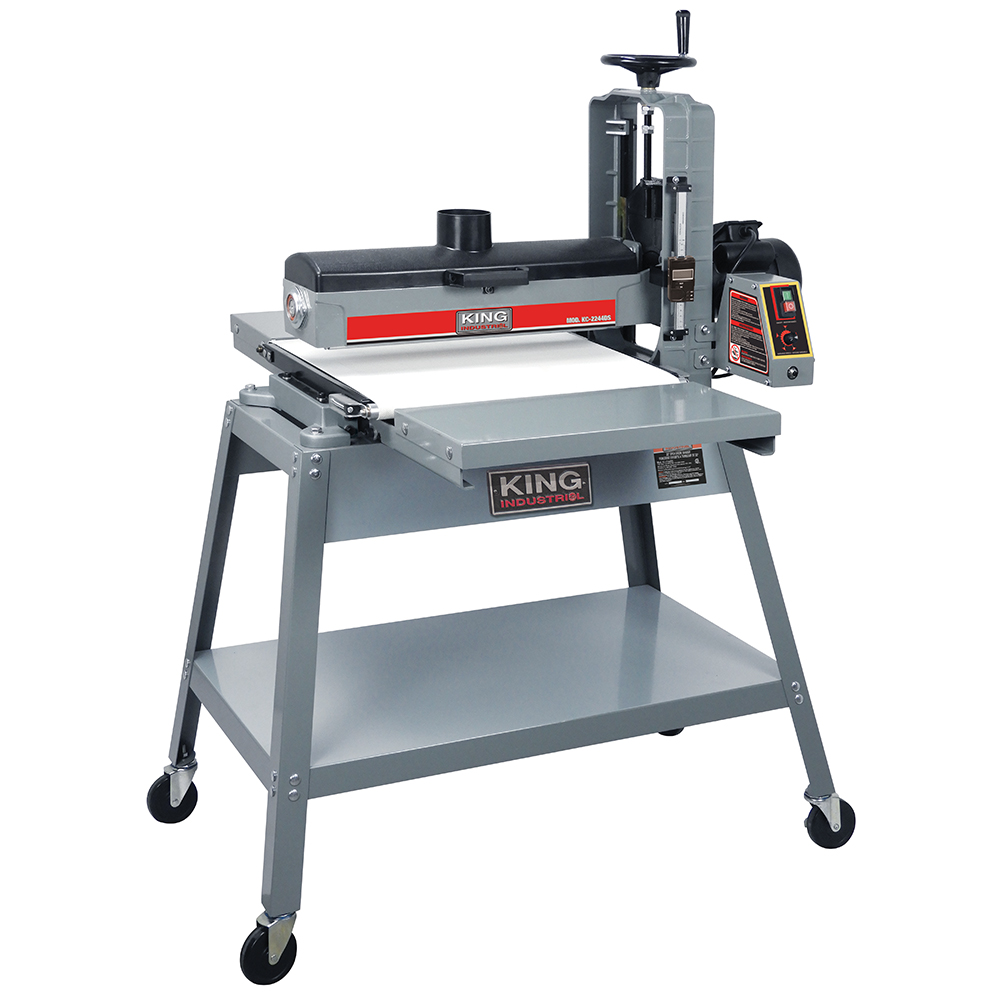

KC-2244DS 22'' OPEN DRUM SANDER Zoom

MODEL: KC-2244DS

22'' OPEN DRUM SANDER

  • Powerful 1.75 HP motor
  • All ball bearing die cast construction
  • Conveyor belt tracking is easy to adjust
  • Easy clamping sanding belt loading system
  • 4" dust chute and rear hook to support dust collection hose
  • Comes with metal stand with 4 caster wheels for mobility

IMPORTANT! With its open ended design this machine can sand a 44” wide piece in 2 passes

Substitute Banks Item
UPC
772995016723
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Video

Video



Specification

Specification

  • Drum motor1.75 HP, 15 Amp.
  • belt feed motor1/8 HP
  • maximum width of sanding2 x 22"
  • maximum sanding capacity per pass1/64"
  • maximum thickness of board5"
  • maximum thickness of board1/8"
  • minimum board length2-1/4"

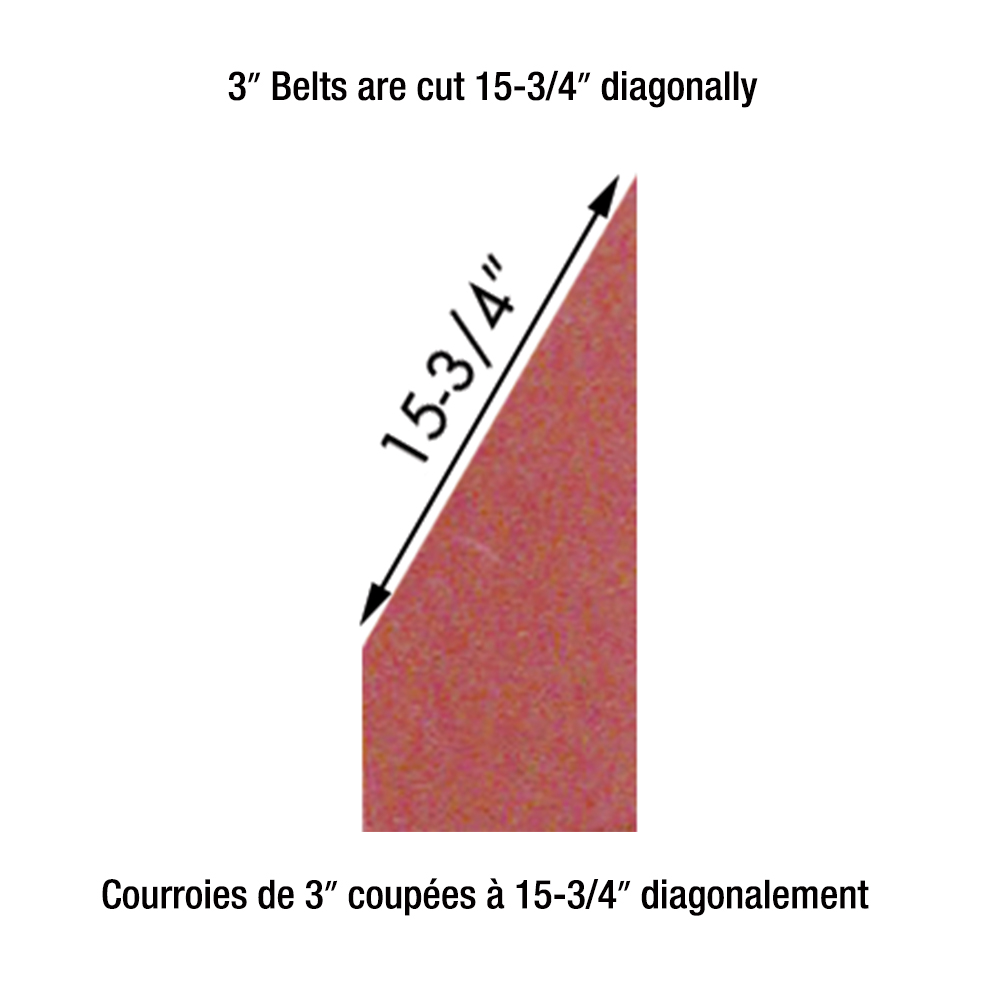

  • belt3" x 127-3/4"
  • feeding speed0-31 SIPM
  • number of sanding drums1
  • drum speed1,720 RPM
  • voltage110V, 60 Hz, 1 phase
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT48" x 43-3/8" x 61-1/2" / 257 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT45-5/8" x 25-5/8" x 26" / 273 lbs
  • UPC7 72995 01672 3
