MODEL: KC-13HPC

13'' PLANER WITH HELICAL CUTTERHEAD

  • Powerful 15 Amp. motor with thermal overload protection

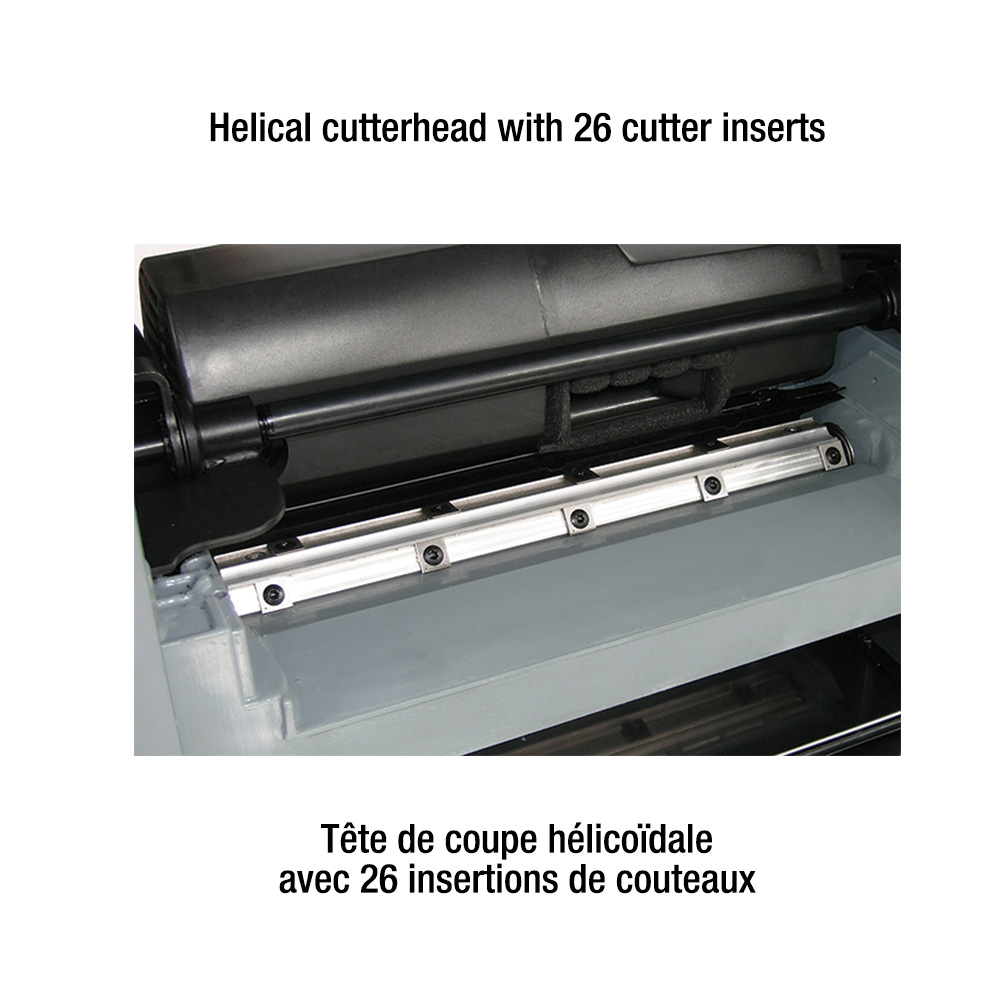

  • Helical cutterhead for a superior finish
  • Cutterhead raises and lowers on four precision ground columns for extra stability
  • Thickness indicator and depth of cut indicator with graduated scale in inches and millimeters
  • Pre-set depth stops for repeat cuts at 1/8", 1/4", 1/2", 3/4", 1", 1-1/4", 1-1/2" and 1-3/4"
  • Exclusive 2 position dust chute. Closed position with 4" and 2-1/2" adapter outlets or open position for free flow chip ejection
  • Comes with convenient side mounted tool storage box, cutter insert adjustment Torx key and adjustment hex. key

Substitute Banks Item
UPC
772995014095

Video

Video



Specification

Specification

  • MAXIMUM PLANING WIDTH13"
  • MAXIMUM PLANING THICKNESS6"
  • NUMBER OF CUTTER INSERTS26
  • FEED RATE26 FPM
  • CUTTERHEAD SPEED10,000 RPM
  • MOTOR15 Amp.
  • VOLTAGE120V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT25-3/4" x 34" x 19-3/4" / 85 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT26-7/8" x 15" x 22-1/2" / 90 lbs
  • UPC7 72995 01409 5
