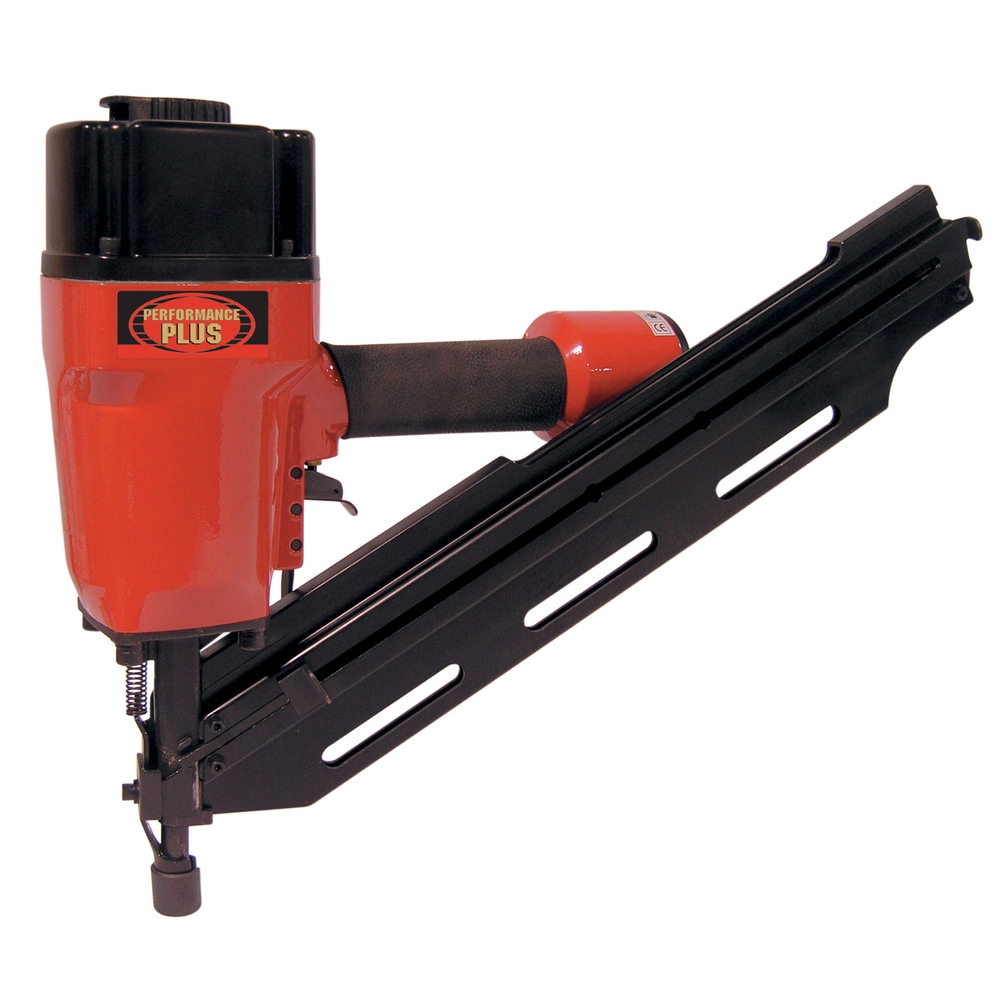

8228N 28 DEGREE CLIPPED HEAD FRAMING NAILER KIT Zoom

MODEL: 8228N

28 DEGREE CLIPPED HEAD FRAMING NAILER KIT

  • Powerful framing nailer drives standard 28° - 30° clipped head nails
  • Serrated nose tip for positive grip when toe nailing
  • Protective nose tip for decking
  • Special hardened driver for long, trouble free performance
  • 360º directional air deflector
  • Trigger for sequential and bump firing modes
  • 1/4" air inlet

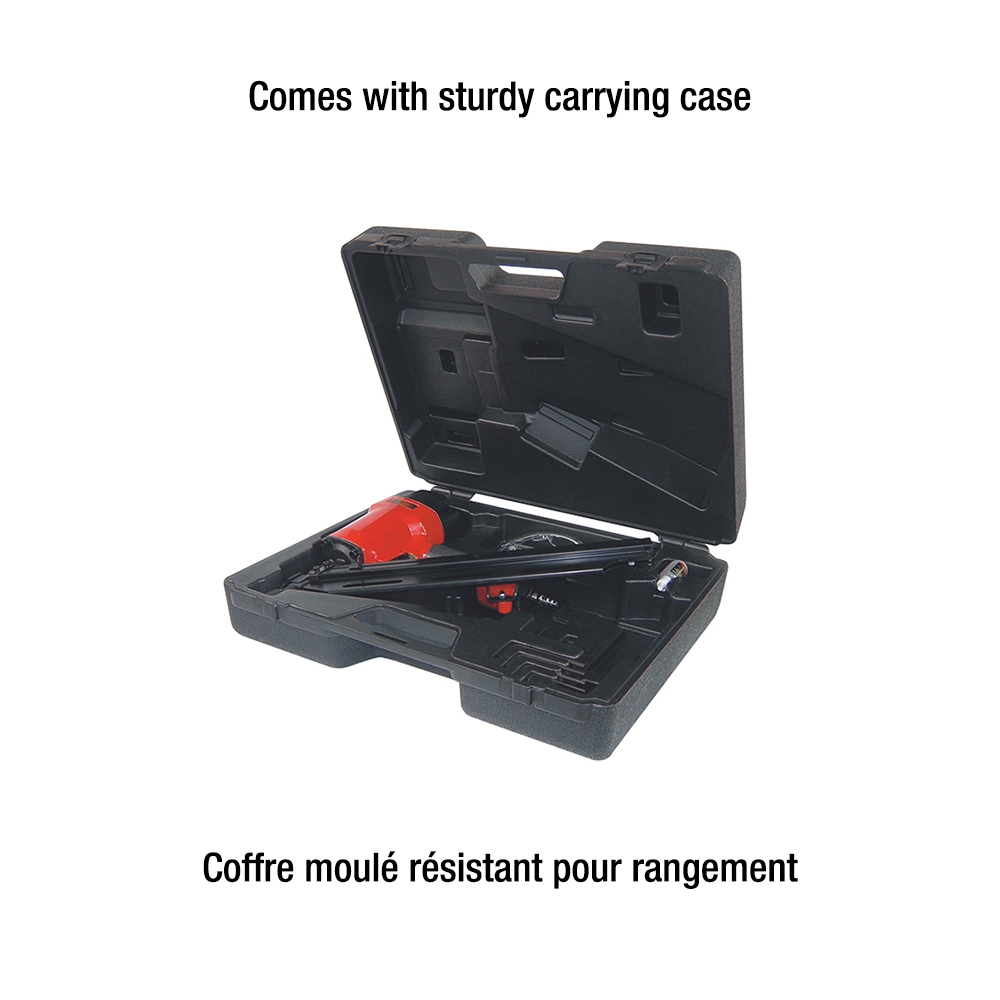

  • Comes with safety glasses, oiler, hex. keys and carrying case
  • It is recommended to use Stanley-Bostitch 28° wire-collated nails or Paslode 30° paper-collated (Prostrip)
Substitute Banks Item
UPC
772995005215
PERFORMANCE PLUS

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • NAIL RANGE28°-30°
  • NAIL SIZE RANGE2-3/16" - 3-9/16"
  • NAIL DIAMETER RANGE.113" - .131"
  • RECOMMENDED NAILSStanley-Bostitch-28° / Porter-Cable-28° / Hitachi-30°
  • RECOMMENDED NAILSPaslode-30° / Senco Frame Pro-30°
  • MAGAZINE CAPACITY100
  • OPERATING PRESSURE70-120 PSI
  • AIR CONSUMPTION5-8 CFM (70-120 PSI)
  • NAILER DISCHARGE RATE120 /min @ 90 PSI
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT19" x 4-1/4" x 14-1/2" / 9.5 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT22" x 7" x 19" / 19 lbs
  • UPC7 72995 00521 5
