MODEL: 8320SC

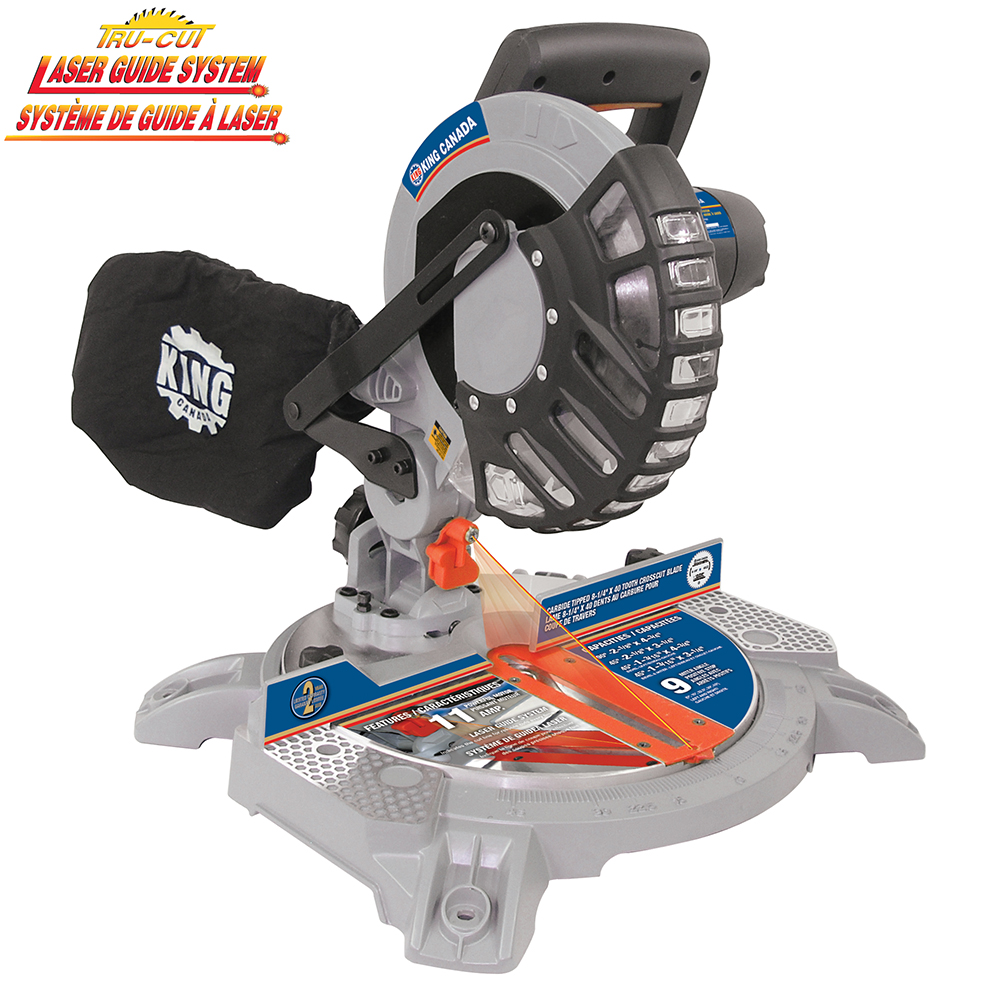

8-1/4" COMPOUND MITER SAW WITH LASER

  • Powerful 11 Amp., 5,500 RPM motor

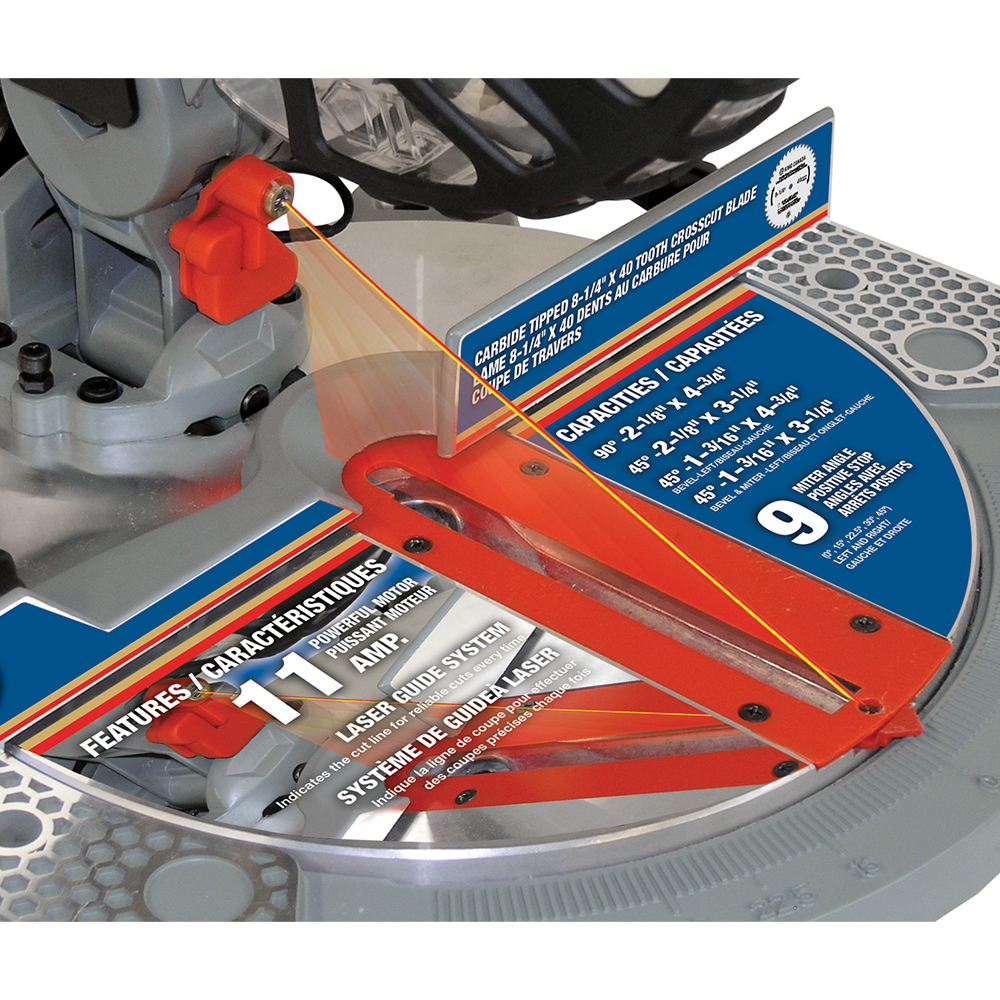

  • Laser guide system indicates the cut line for reliable cuts every time
  • 2-1/8" x 4-3/4" straight cut capacity at 90°
  • Sturdy aluminum die-cast construction
  • Rotating table has 9 positive stops at 0°, 15°, 22.5°, 30° and 45° right and left
  • Bevel positive stops at 90° and 45° left
  • Comes complete with dust bag and blade adjustment hex. key



Substitute Banks Item

UPC
772995009381

Specification

Specification

  • MOTOR11 Amp.
  • VOLTAGE110V, 1 phase, 60 Hz
  • DIAMETER OF ARBOR5/8”
  • BLADE SPEED5,500 RPM
  • MAXIMUM CUTTING HEIGHT2-1/2"
  • CROSSCUT2-1/8" x 4-3/4"
  • MITER 45° RIGHT OR LEFT2-1/8" x 3-1/4"
  • BEVEL 45° LEFT1-3/16" x 4-3/4"
  • COMPOUND 45°1-3/16" x 3-1/4"
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHt14-7/8" x 23" x 16" / 15 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT18-1/2" x 14" x 12-3/4" / 18 lbs
  • UPC7 72995 00938 1
