MODEL: KC-85FX

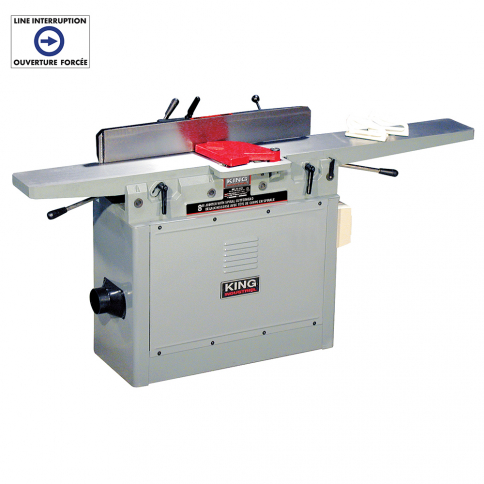

8" INDUSTRIAL JOINTER WITH SPIRAL CUTTERHEAD

  • Powerful 2 HP motor
  • Parallelogram table adjustment system

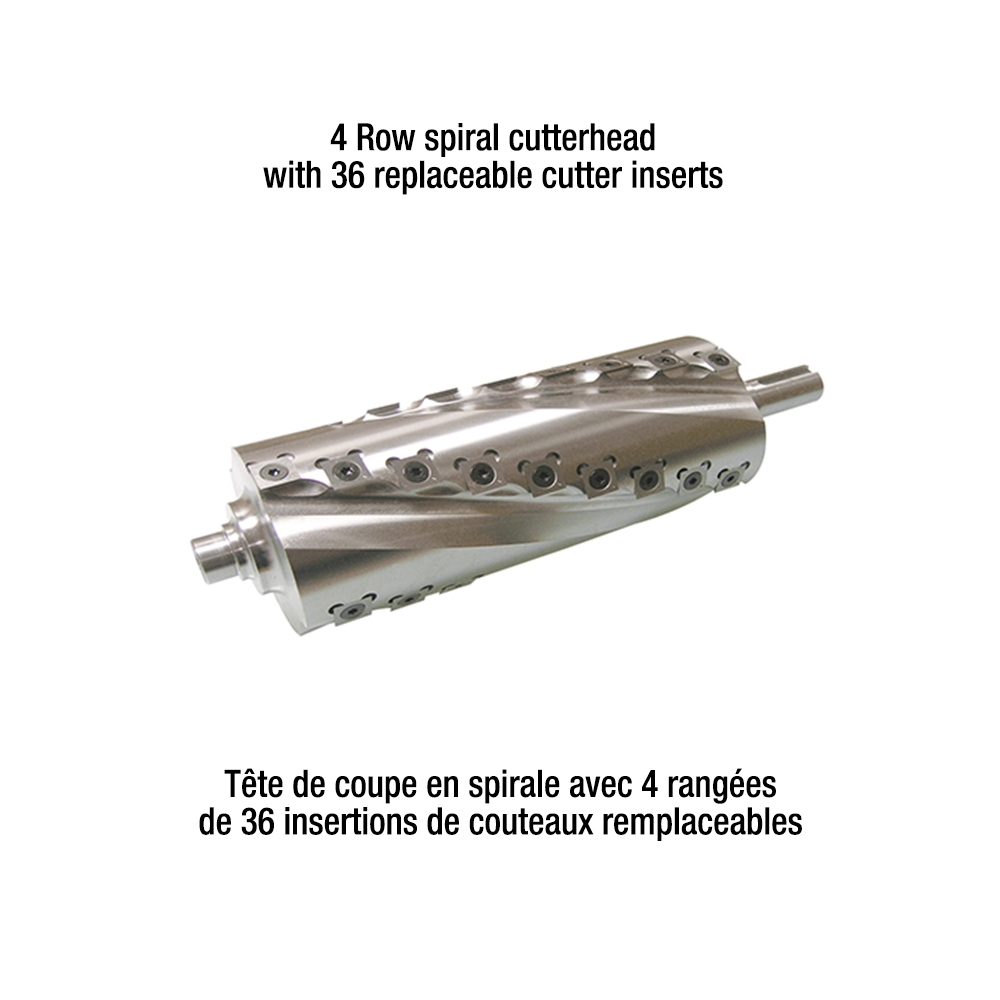

  • A spiral cutterhead makes 50% less noise than a conventional cutterhead
  • Precision ground cast-iron tables
  • One piece welded cabinet stand has built-in 4" dust chute for dust collector hook-up
  • Lever actuated infeed table with lock handle, for quick easy height adjustment
  • Graduated scale located on fence
  • Magnetic safety switch

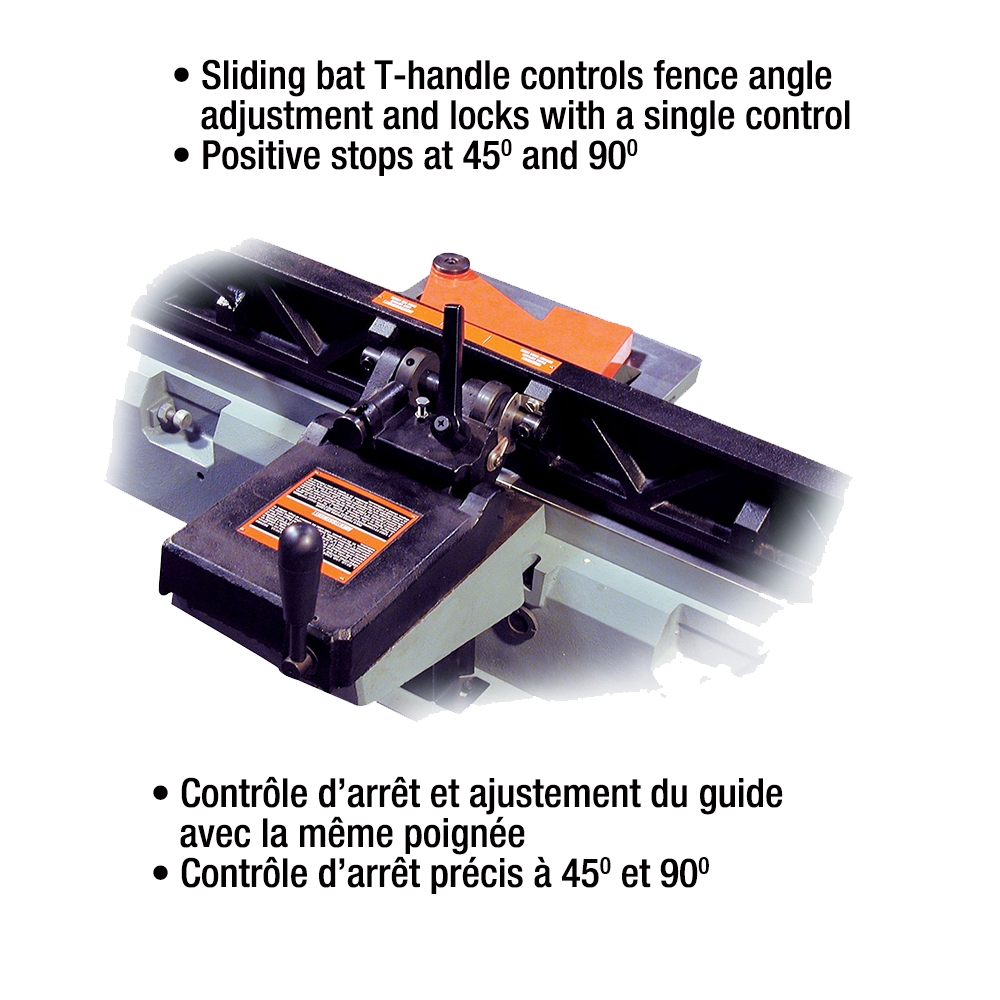

  • Sliding bar T-handle controls fence angle adjustment and locks with a single control
  • Positive stops at 45° and 90°
  • Includes 2 safety push blocks

Substitute Banks Item
UPC
772995007486

Video

Video

Specification

Specification

  • CAPACITY8"
  • CUTTERHEAD SPEED5,500 RPM
  • DIAMETER OF THE CUTTERHEAD3-3/8"
  • RABBETING CAPACITY5/8" x 8-1/16"
  • TABLE SIZE8" x 76-1/2"
  • FENCE SIZE36" x 5"
  • MOTOR9 Amp.
  • VOLTAGE220V, 1 phase, 60 Hz
  • DIMENSIONS (LXWXH) / WEIGHT76-1/2" x 26" x 32" / 394 lbs
  • UPC7 72995 00748 6
