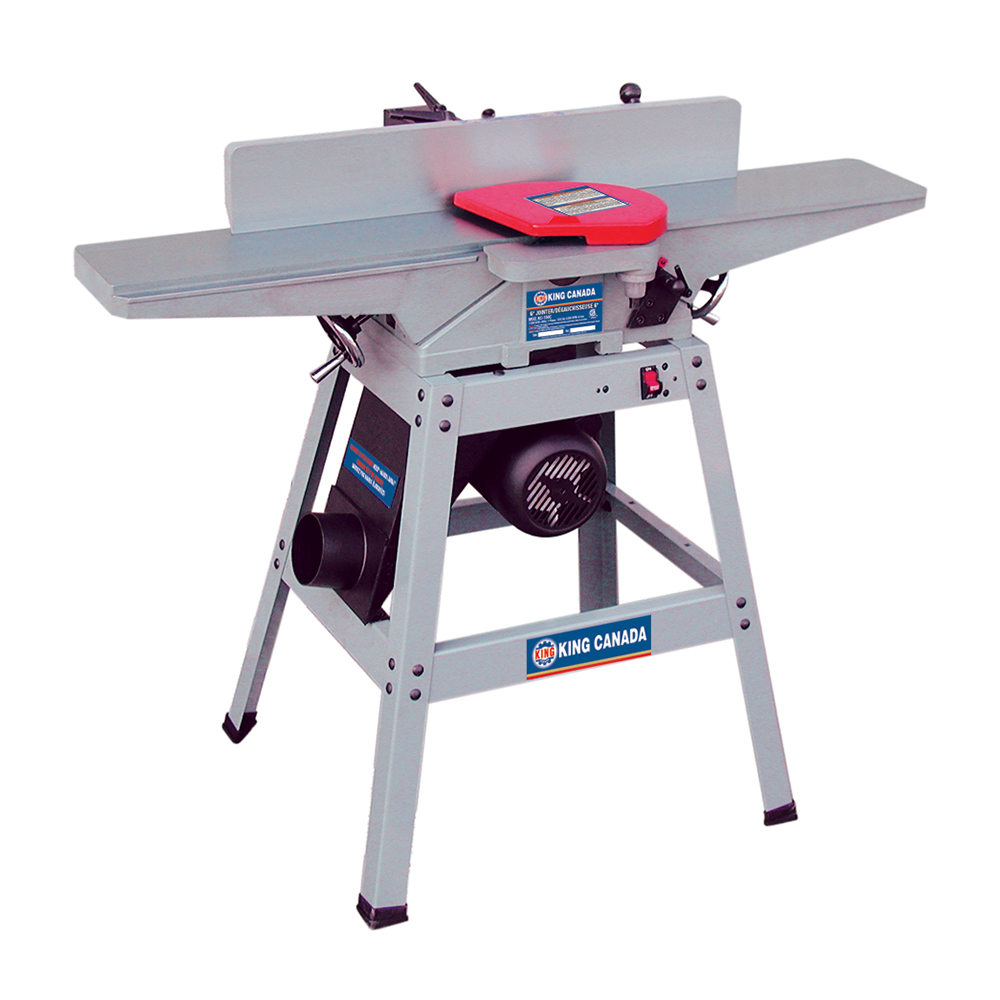

KC-150C 6" JOINTER Zoom

MODEL: KC-150C

6" JOINTER

  • Large surface ground cast-iron tables ensures straight edge accuracy
  • Sturdy metal stand has built-in 4" dust chute for dust collector hook-up
  • Three knifes cutterhead allows rapid cutting while producing a superior finish

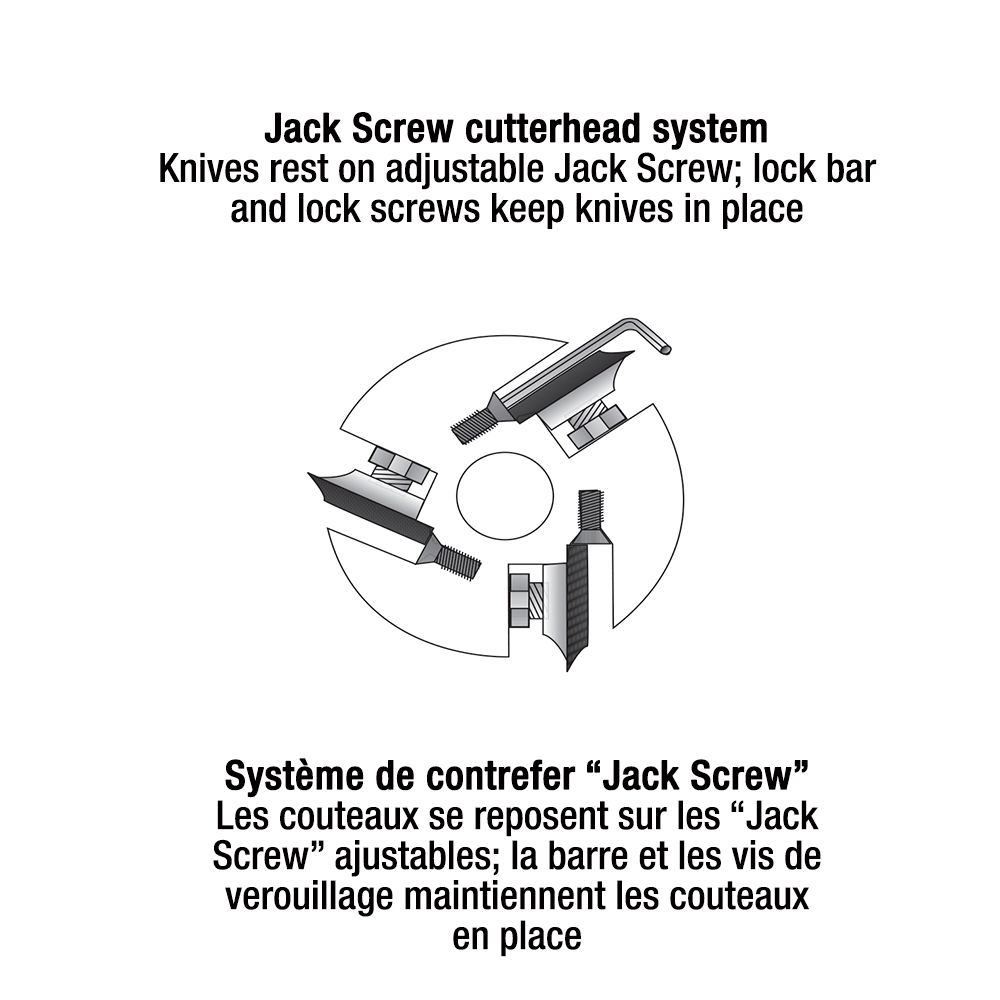

  • Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place

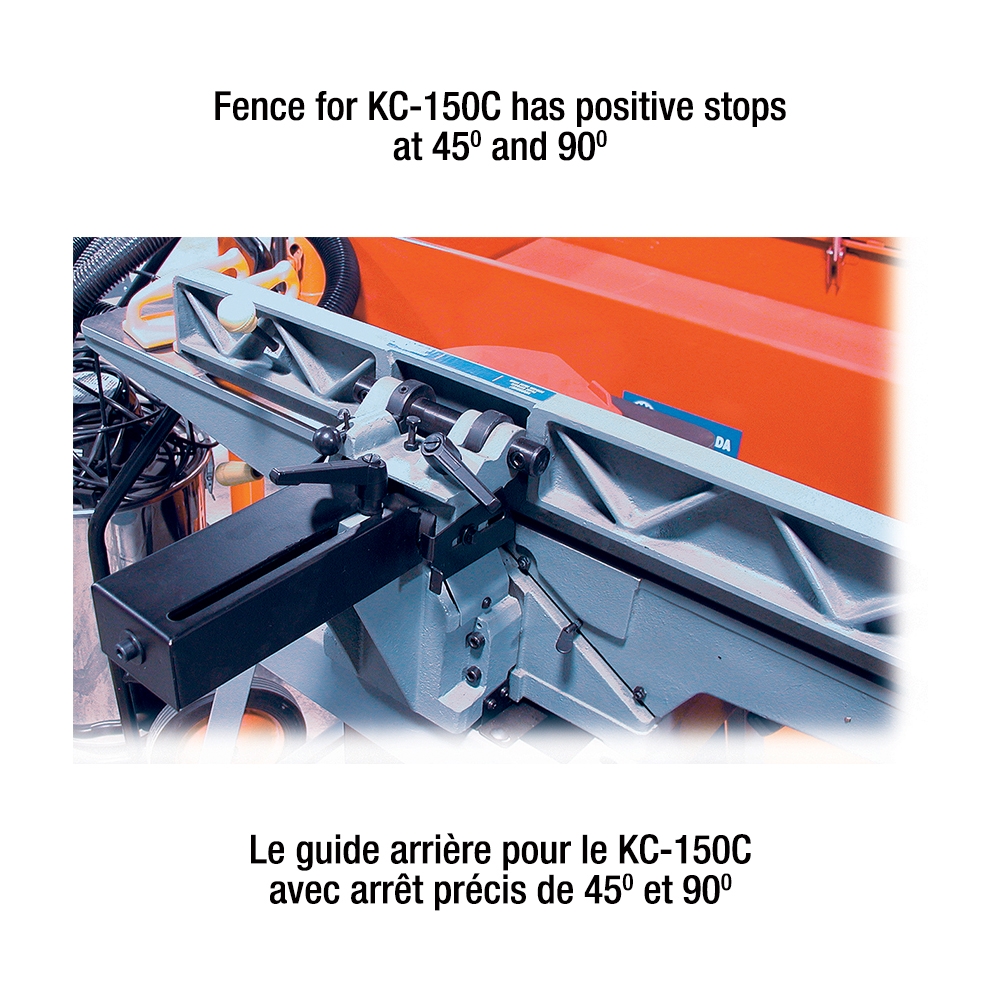

  • Fence for KC-150C has positive stops at 45˚ and 90"
  • Includes 2 safety push blocks

Substitute Banks Item
UPC
772995000722
KING CANADA

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CAPACITY6"
  • CUTTERHEAD SPEED4,800 RPM
  • DIAMETER OF THE CUTTERHEAD2-1/2"
  • RABBETING CAPACITY1/2" x 6"
  • TABLE SIZE6" x 46"
  • FENCE SIZE29-1/2" x 4-1/2"
  • MOTOR13 Amp. @110V, 6.5 Amp. @ 220V
  • VOLTAGE110V/220V, 1 phase, 60 Hz
  • PREWIRED110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT46" x 28" x 39" / 210 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT48-7/8" x 20-3/4" x 14-3/8" / 218 lbs
  • UPC7 72995 00072 2

Accessories
