MODEL: KC-30HS-VS

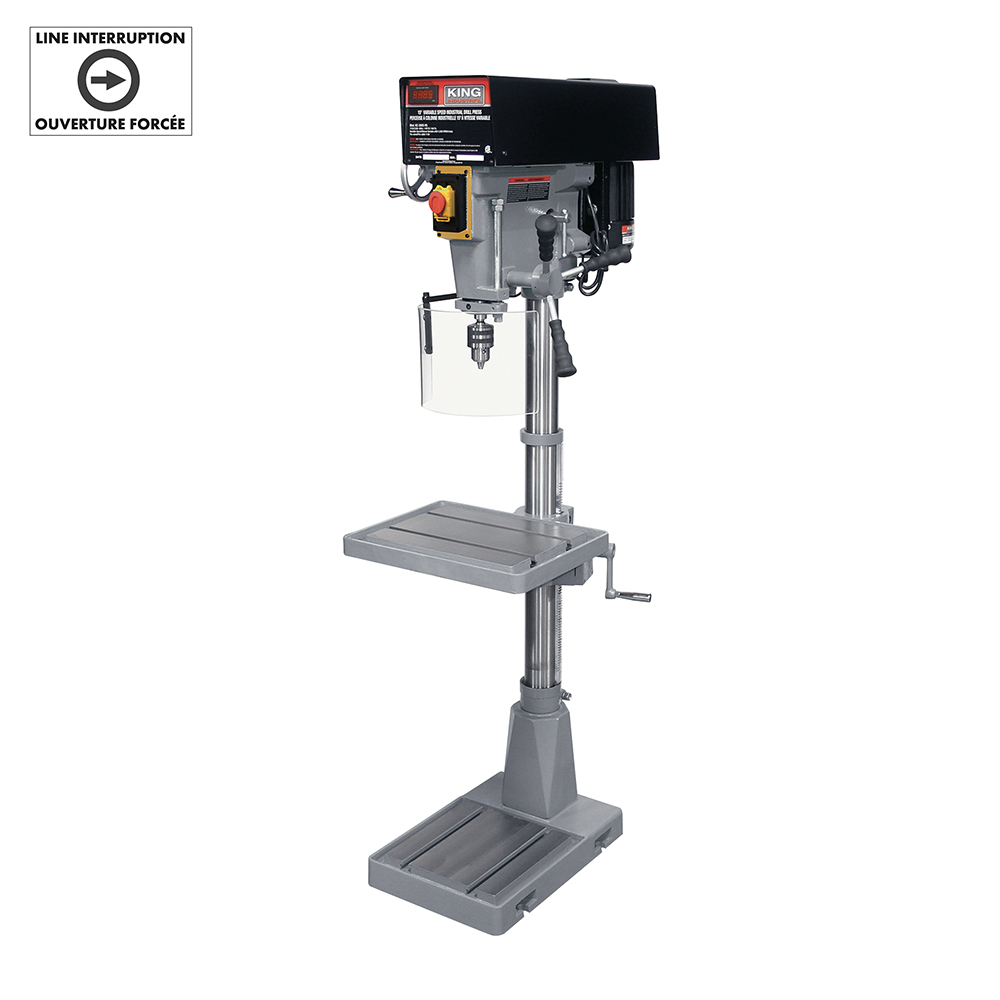

15'' VARIABLE SPEED INDUSTRIAL DRILL PRESS

  • Powerful 1 HP motor
  • Long 6” stroke allows this drill press to drill deeper than most

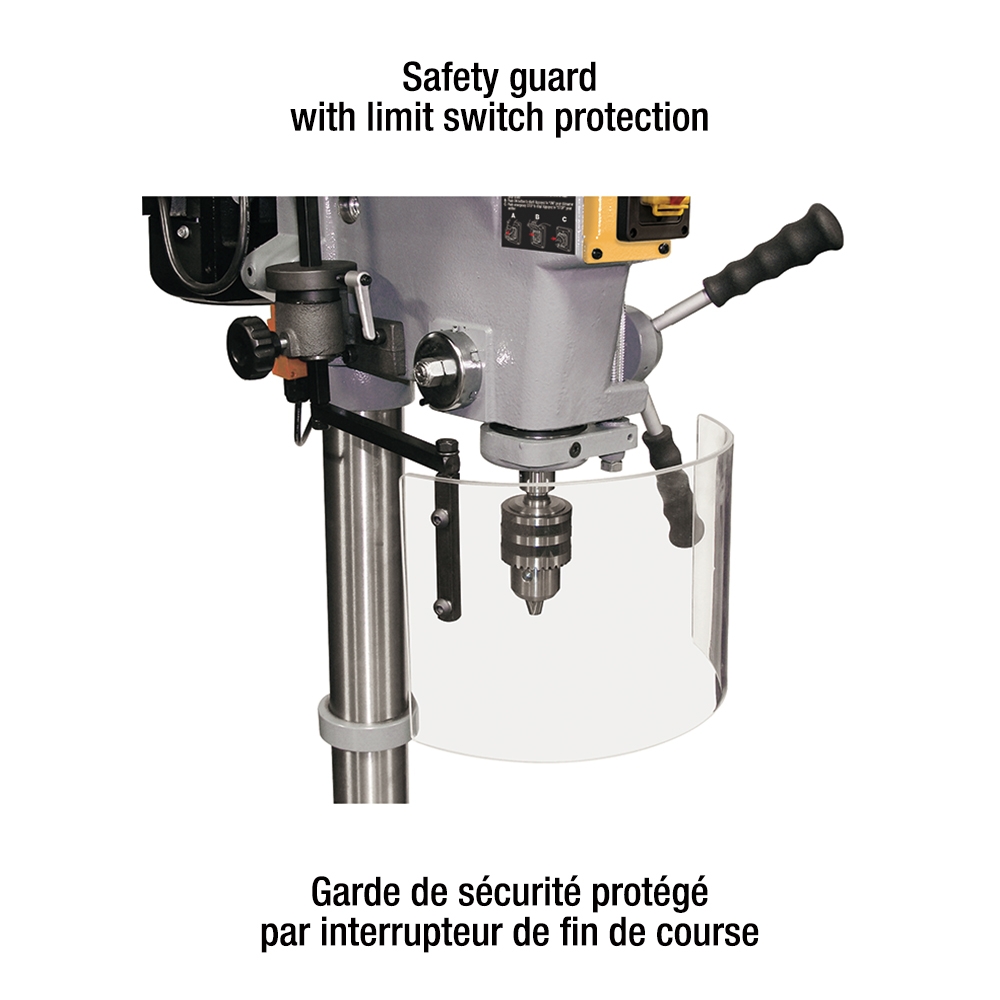

  • Safety guard with limit switch protection
  • E-stop 2 step activation safety switch with line voltage interruption in case of power failure

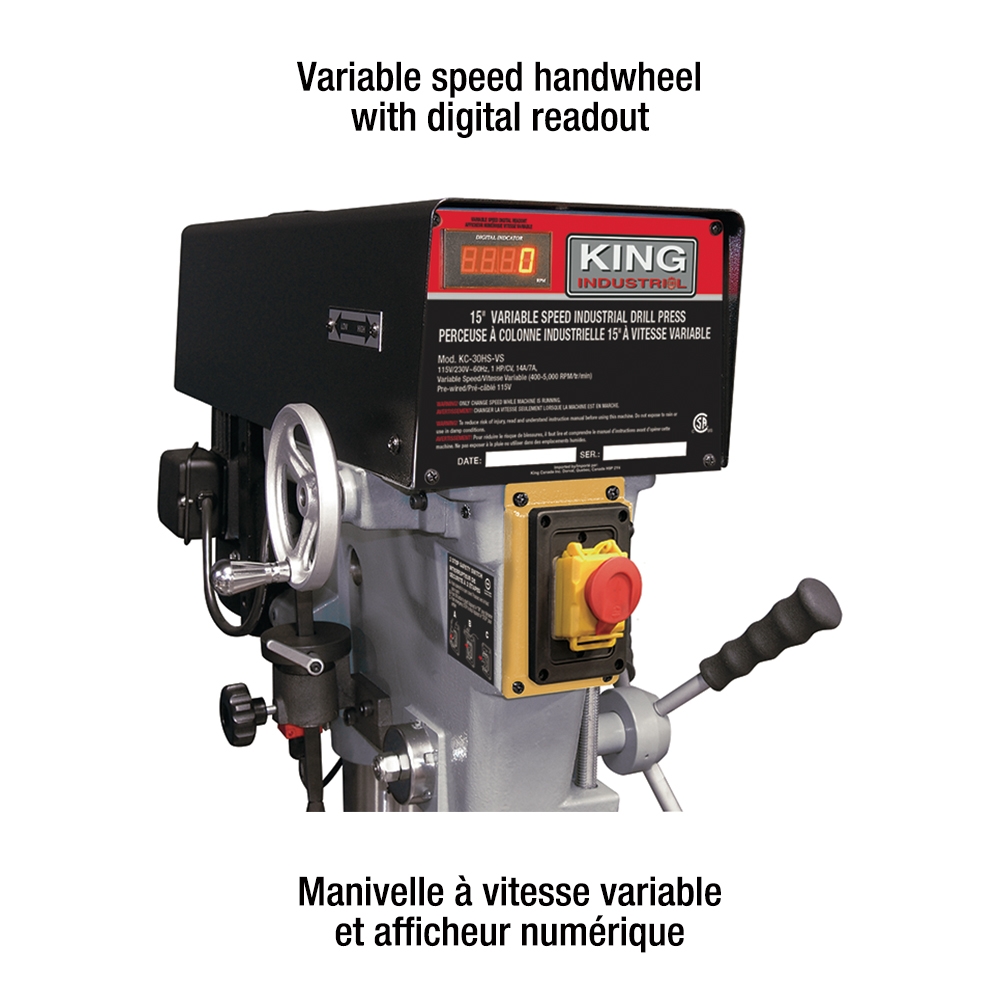

  • Variable speed handwheel sets the spindle speed using asymmetric drive system
  • Digital readout for precise spindle speed

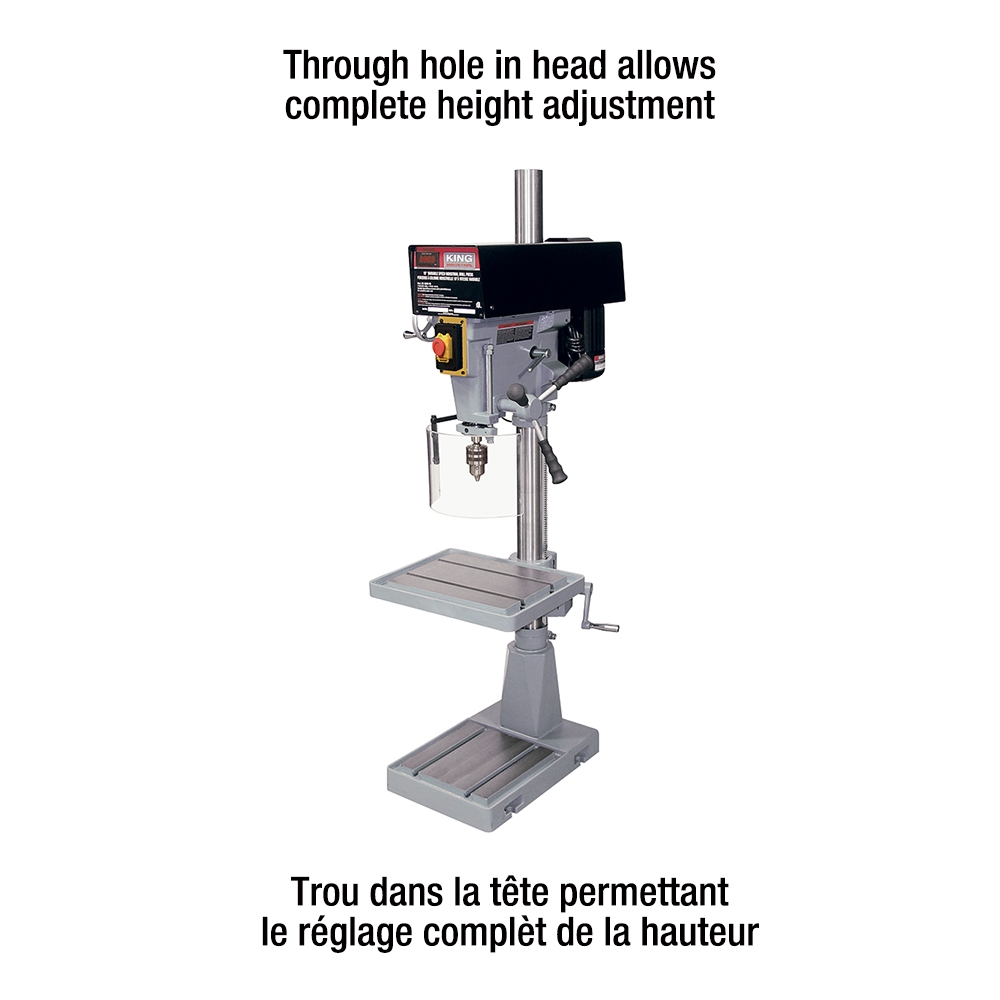

  • Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
  • Massive cast-iron base, table and head for reduced vibrations during operations
  • Machine and balanced cast-iron pulleys
  • Comes with 5/8" drill chuck, chuck key, knock-out wedge and adjustment hex. keys

Substitute Banks Item
UPC
772995014576

Specification

Specification

  • CAPACITY5/8"
  • CHUCK SIZE5/8"
  • SWING15"
  • MAX. DISTANCE CHUCK TO COLUMN7-1/2"
  • MAX. DISTANCE CHUCK TO TABLE27-1/2"
  • STROKE6"
  • TABLE SIZE18" x 14"
  • SPINDLE TAPERJT #3
  • VARIABLE SPEEDS400 - 5,000 RPM
  • TABLE T-SLOTS9/16"
  • MOTOR/VOLTAGE14 Amp. @ 115V, 7 Amp. @ 230V
  • PRE-WIRED115V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT18" x 28" x 71-1/2" / 310 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT22" x 32" x 70" / 375 lbs
  • UPC7 72995 01457 6
