MODEL: KC-1702FXB

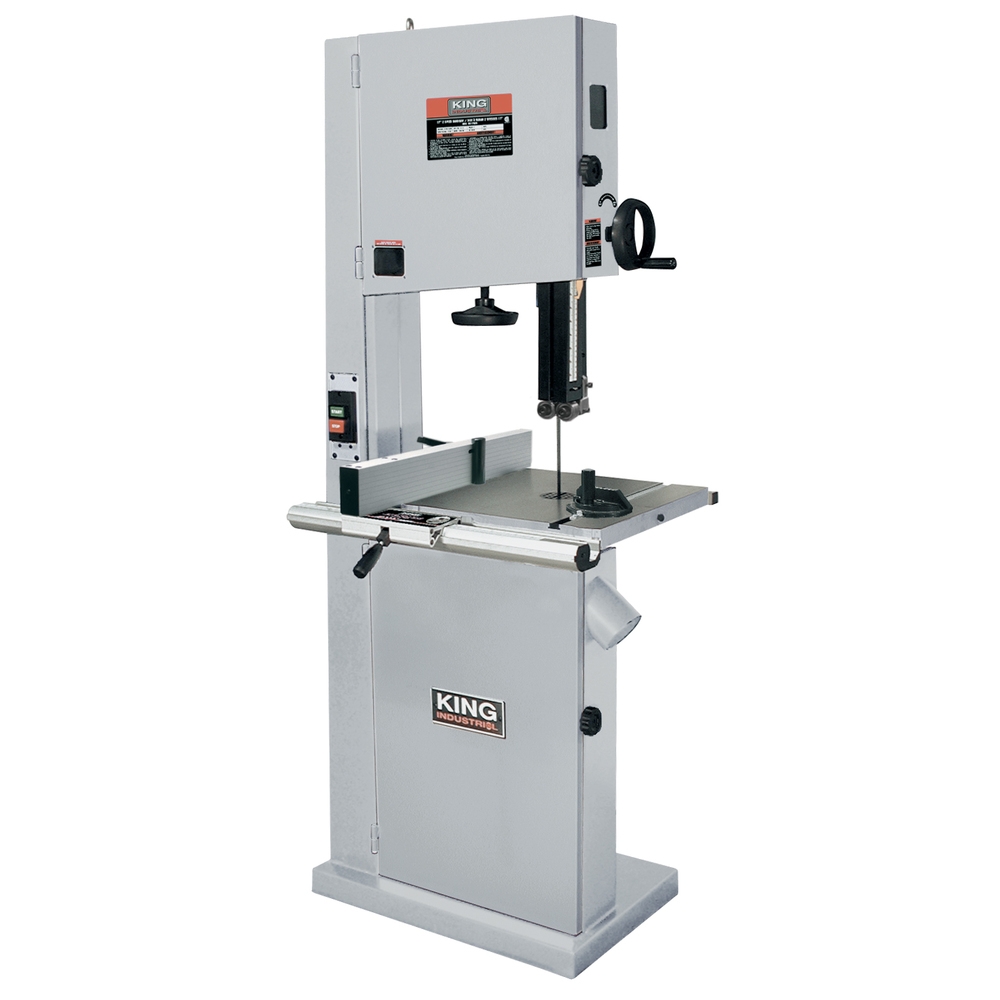

17" WOOD BANDSAW WITH RESAW GUIDE

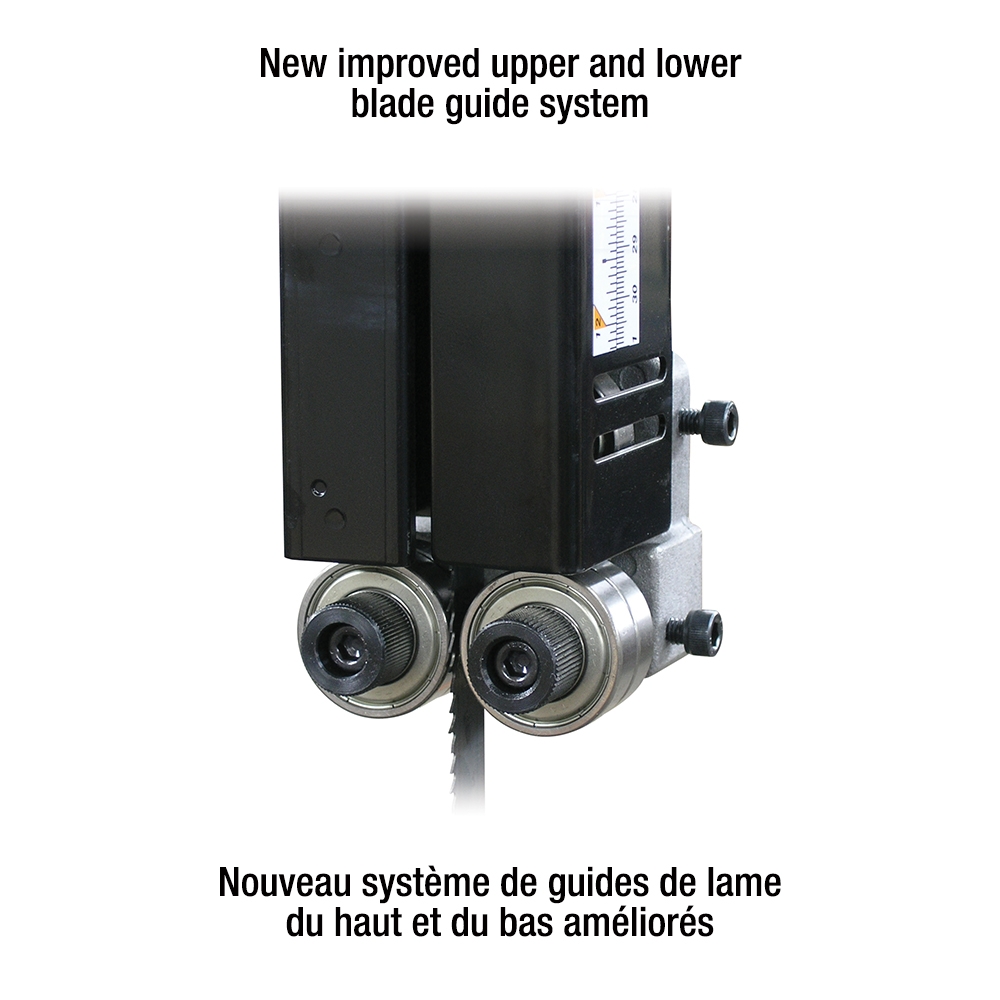

  • Improved adjustable upper/lower ball bearing blade guide system
  • Rack and pinion height adjustment system
  • 2 speeds
  • 2 x 4" dust chutes for dust collector hook-up
  • Quick release blade change lever
  • Cutting height indicator
  • Blade tension meter and tracking can be seen through conveniently placed windows
  • 10° left / 45° right square cast iron tilting table
  • Hinged doors for quick access to the blade
  • Motor, blade, miter gauge and precision "TRU-RIP" aluminum rip fence with resaw guide included

Substitute Banks Item
UPC
772995001910

Video

Video

Specification

Specification

  • CUTTING CAPACITY FRAME TO BLADE16-1/4"
  • TABLE SIZE17” x 17”
  • TABLE HEIGHT FROM FLOOR35-1/2"
  • BLADE SIZE131-5/8" x (1/8" - 1") x 0.025"
  • HEIGHT OF CUT12"
  • MOTOR14 Amp. / 7 Amp.
  • VOLTAGE110V / 220, 1 phase, 60 Hz
  • PRE-WIRED AT110V
  • SPEED2 (1,600-3,300) SFPM
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT32" x 26" x 74" / 325 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT30-1/2" x 21" x 80-1/2" / 359 lbs
  • UPC7 72995 00191 0
