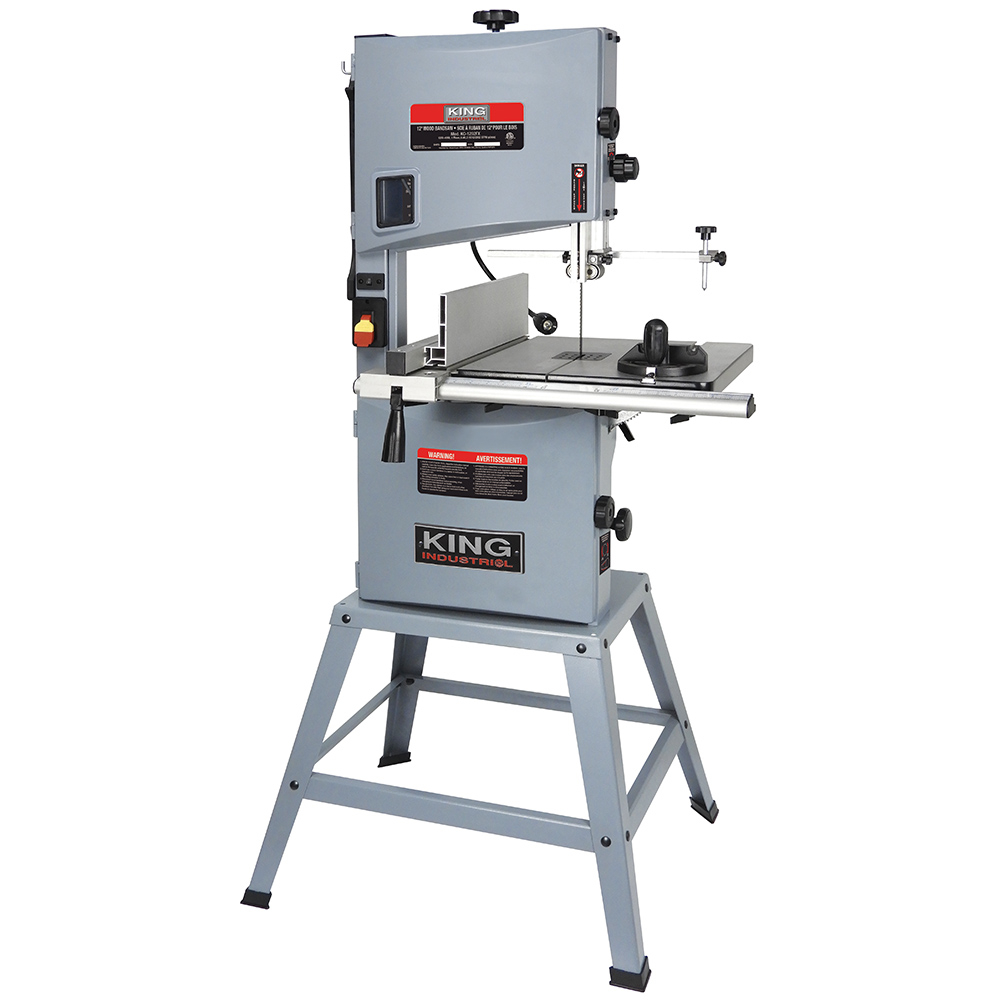

MODEL: KC-1202FX

12'' WOOD BANDSAW

  • Powerful 3/4 HP 120V motor
  • Adjustable upper/lower ball bearing blade guide system
  • Large 18-7/8" x 15-3/8" tilting table with rack & pinion adjustment
  • Flexible LED light increases workpiece visibility

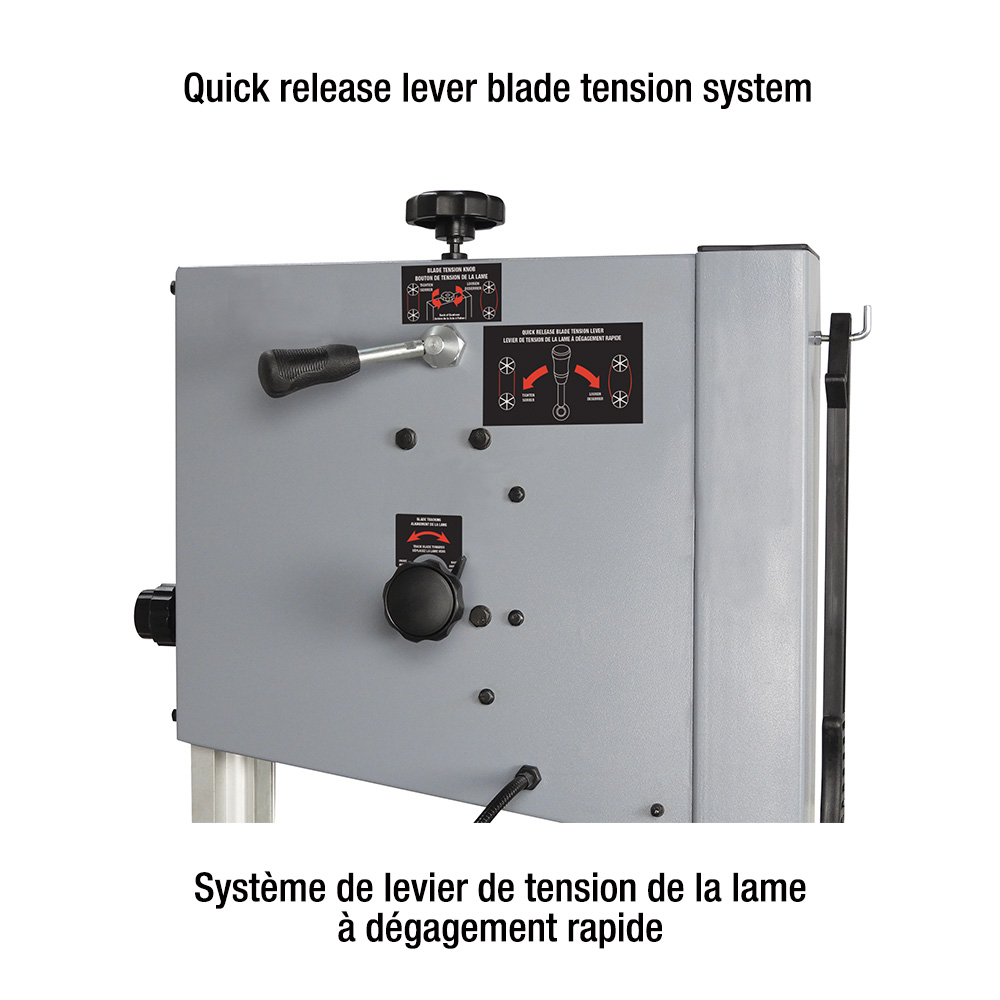

  • Belt tension adjustment knob
  • Rack & pinion height adjustment system
  • Circle cutting guide for diameters up to 23-1/2"
  • Dust chute accepts 2", 3" and 4" dust collector hoses
  • Comes complete with cast aluminum miter gauge, rip fence with 5" high face, push stick, adjustment wrench and hex. keys
Substitute Banks Item
UPC
772995016358

Specification

Specification

  • cutting capacity frame to blade12"
  • maximum depth of cut6-3/4"
  • table size18-7/8" x 15-3/8"
  • table height from floor38-7/8"
  • blade size88-3/16" x (1/8" - 3/4") x 0.025"
  • motor3/4 HP
  • amperage6.4 Amp.
  • VOLTAGE120V, 1 phase, 60 Hz
  • speeds2 (1312, 2952) SFPM
  • assembled dimensions (lxwxh) / weight33" x 24" x 6-1/2" / 106 lbs
  • packaging dimensions (lxwxh) / weight45-5/8" x 21" x 17-3/8" / 110 lbs
  • UPC7 72995 01635 8
