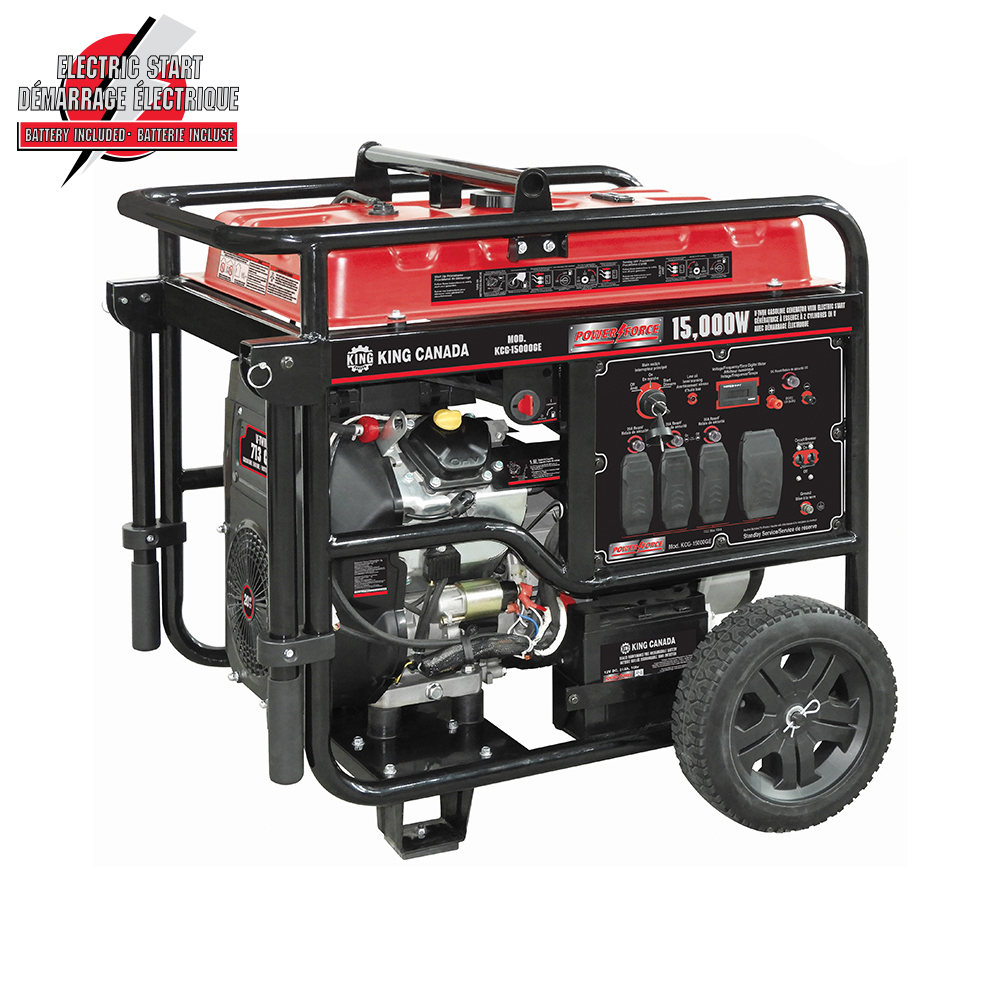

KCG-15000GE 15,000W V-TWIN GASOLINE GENERATOR WITH ELECTRIC START Zoom

MODEL: KCG-15000GE

15,000W V-TWIN GASOLINE GENERATOR WITH ELECTRIC START

  • Powerful 20 HP, V-Twin horizontal shaft 4 stroke air cooled OHV engine
  • Provides dependable power for home, recreation, job sites and emergencies
  • AVR system and electronic ignition

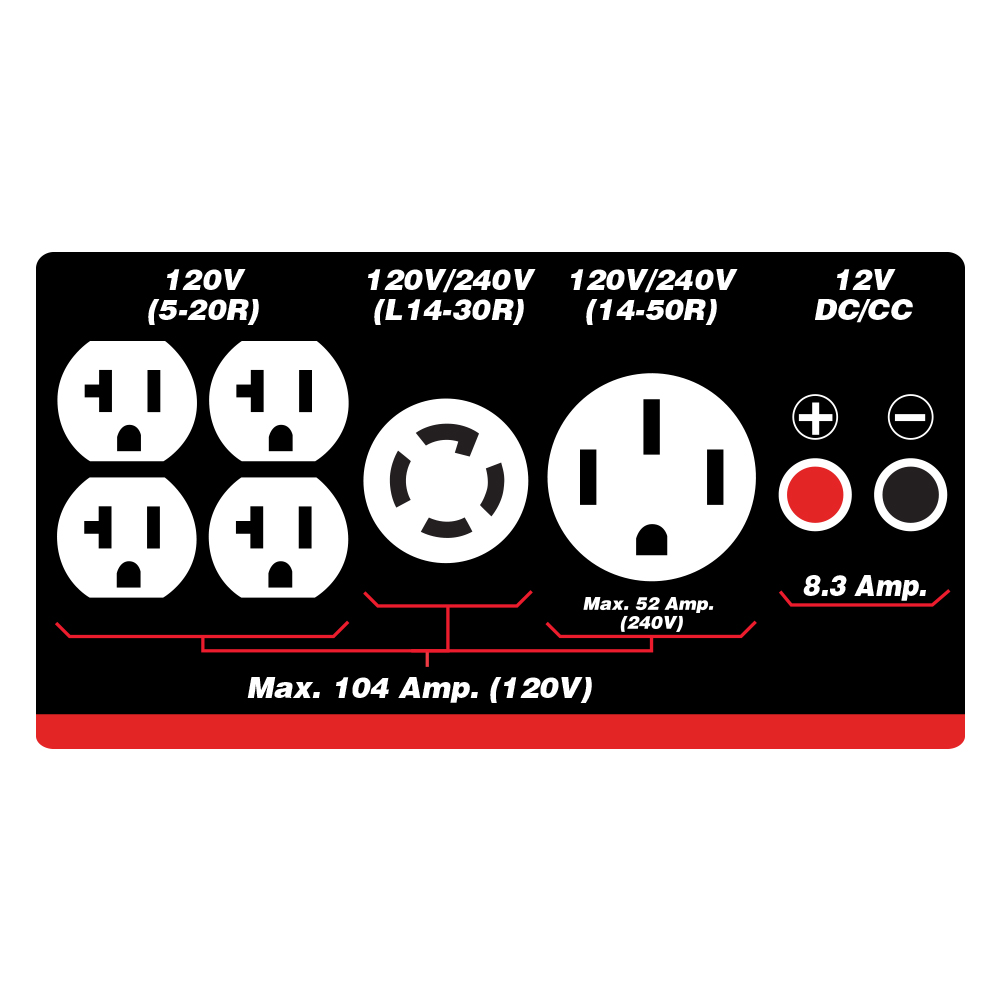

  • Two duplex outlets: 120V/20 Amp. AC
  • Twist lock outlet: 120V/240V/30 Amp. AC
  • Outlet: 120V/240V/50 Amp. AC
  • Keyed electric start
  • AC double throw circuit breaker and resets
  • Terminals: 12V/8.3 Amp. DC with DC reset
  • Voltage/frequency/time digital meter
  • Wheel kit includes 12" wheels and pivot handles
  • Neutral bonded to frame
  • CSA and EPA approved
  • Comes with 12V battery, spark plug socket and funnel
Substitute Banks Item
UPC
772995015566
POWER FORCE

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Video

Video

Specification

Specification

  • PEAK WATTAGE (STARTING)15,000W
  • RUNNING WATTAGE12,500W
  • AC CURRENT (120V/240V)104 Amp. / 52 Amp.
  • ENGINE (OHV)20 HP
  • NO LOAD SPEED3,600 RPM
  • DISPLACEMENT (CC)713
  • FUELUnleaded Gasoline
  • FUEL TANK (L)40
  • OIL CAPACITY (L)1.6
  • RUN TIME8-9 hrs.
  • NOISE LEVEL77 dB(A)
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT34" x 32" x 34-3/4" / 338 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT35-3/8" x 24-3/8" x 38-3/8" / 389 lbs
  • UPC7 72995 01556 6
