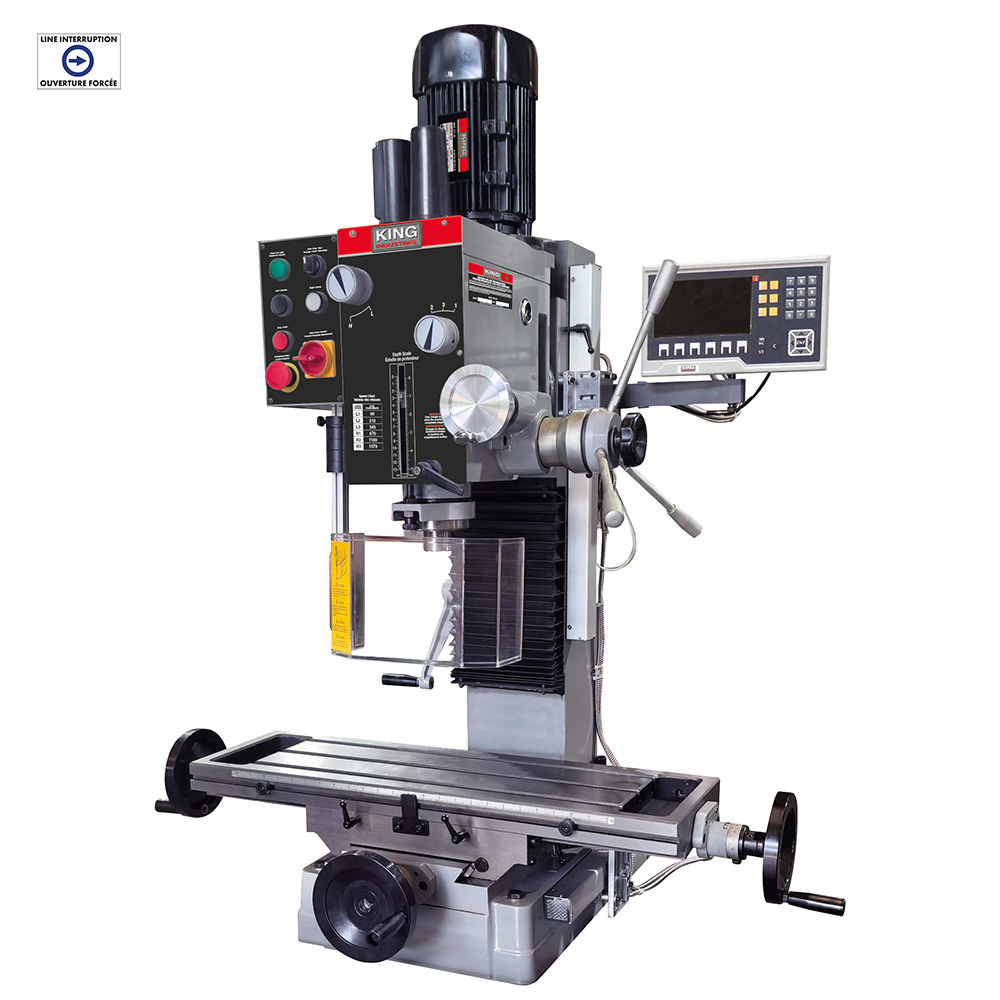

KC-46 MILLING DRILLING MACHINE WITH SAFETY GUARD/DRO Zoom

MODEL: KC-46

MILLING DRILLING MACHINE WITH SAFETY GUARD/DRO

  • Powerful 2 HP 240V motor
  • 3 axis (X, Y, Z) digital readout (DRO) for precise operations and repeatable results
  • Forward and reverse spindle switches and tapping function
  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Head can be tilted and locked anywhere between 45° to the left to 45° to the right
  • Table control hand wheels have large micrometer dials graduated in .001"
  • Comes with B16 1/2" drill chuck & key, B16 with R8 chuck arbor, R8-MT#3 spindle sleeve, MT#3-MT#2 spindle sleeve, drift key, oiler, adjustment wrenches and hex. keys packed in a convenient tool box
Substitute Banks Item
UPC
772995022502
KING INDUSTRIAL

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • Drilling capacity (steel/cast-iron)1-1/4" / 1-3/4"
  • Max. distance spindle nose to table18-1/8"
  • SWING10-1/8"
  • SPINDLE TAPERR8
  • SPINDLE STROKE4-3/4"
  • SPEEDS6 (90-1,970) RPM
  • FACE MILL CAPACITY3-1/8"
  • END MILL CAPACITY1-1/4"
  • MAX. LONGITUDINAL TRAVEL22"
  • MAX. CROSS TRAVEL7-1/2"
  • WORKING AREA OF THE TABLE9-1/2" x 31-1/2"
  • SIZE OF T-SLOT ON TABLE1/2" x 3-1/8" on centre
  • MOTOR8 Amp.
  • VOLTAGE240V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT47" x 30" x 56" / 660 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT33-1/2" x 30" x 45-1/4" / 770 lbs
  • UPC7 72995 02250 2

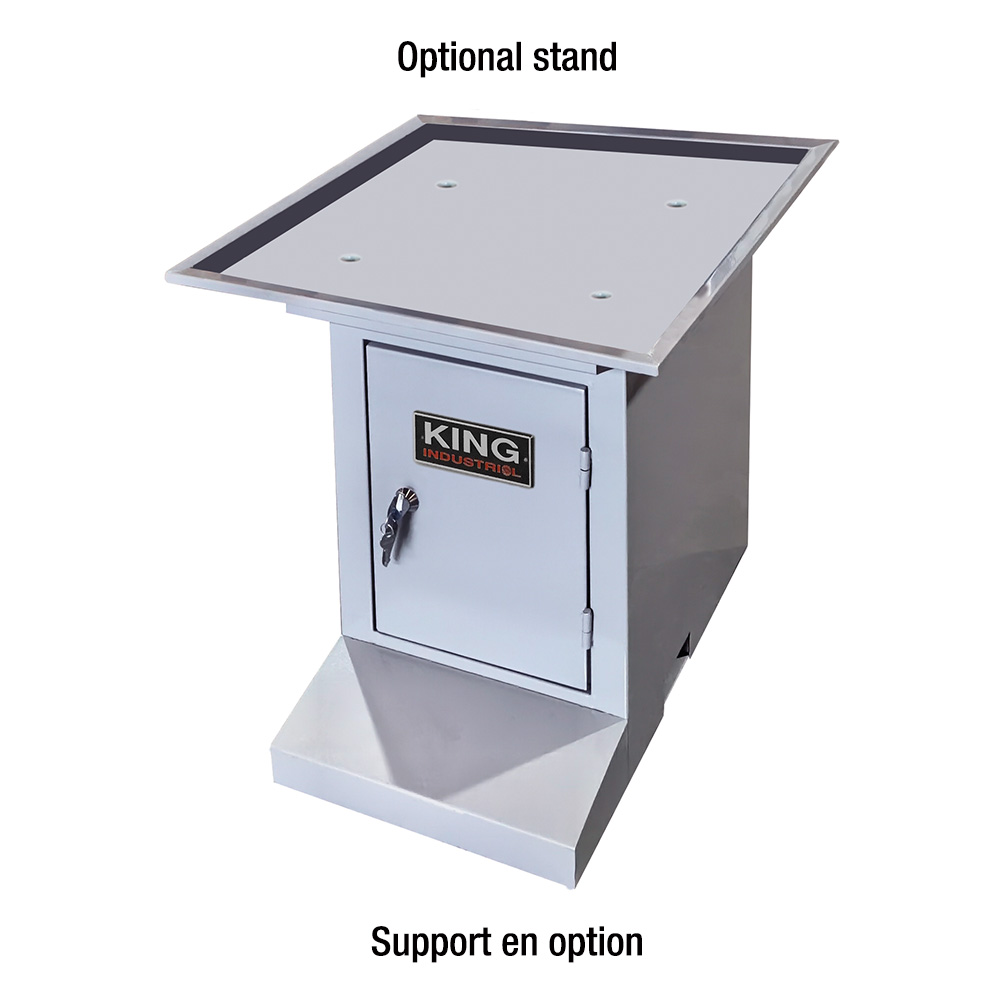

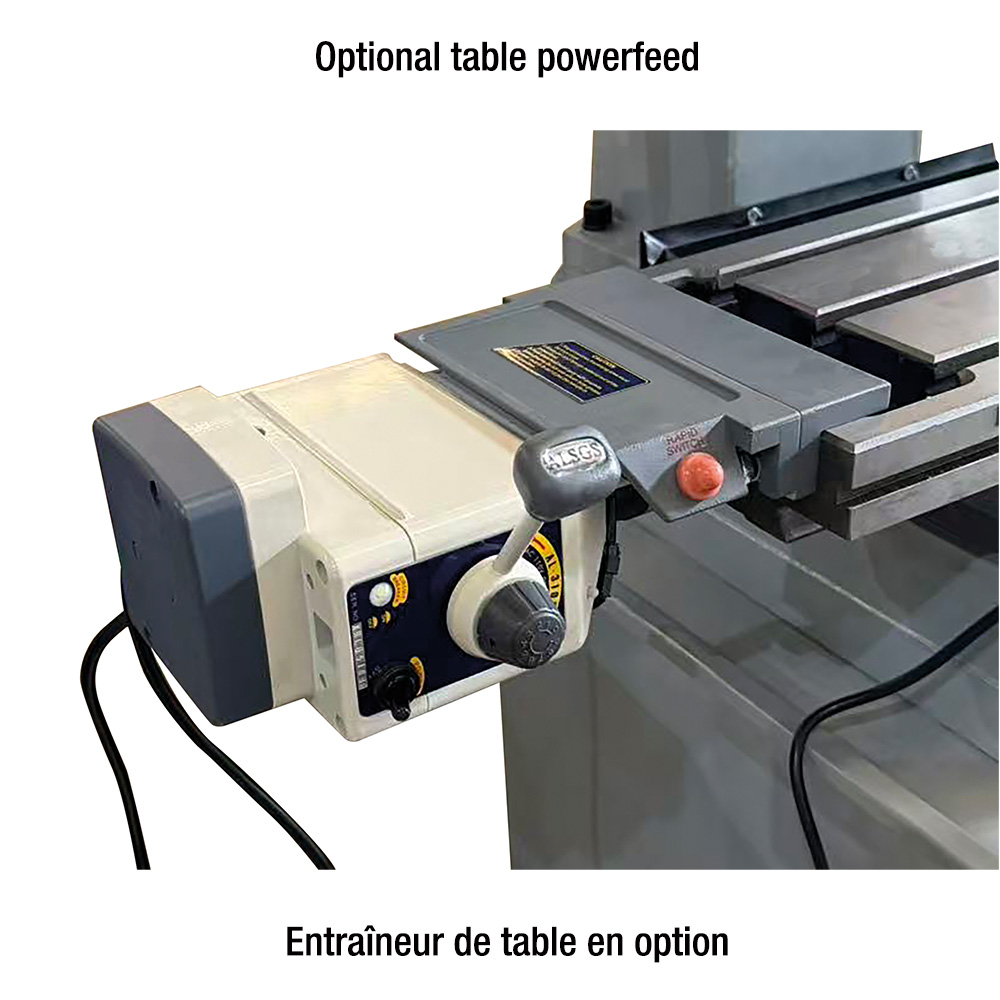

Accessories
