MODEL: KC-1640ML/KM-055

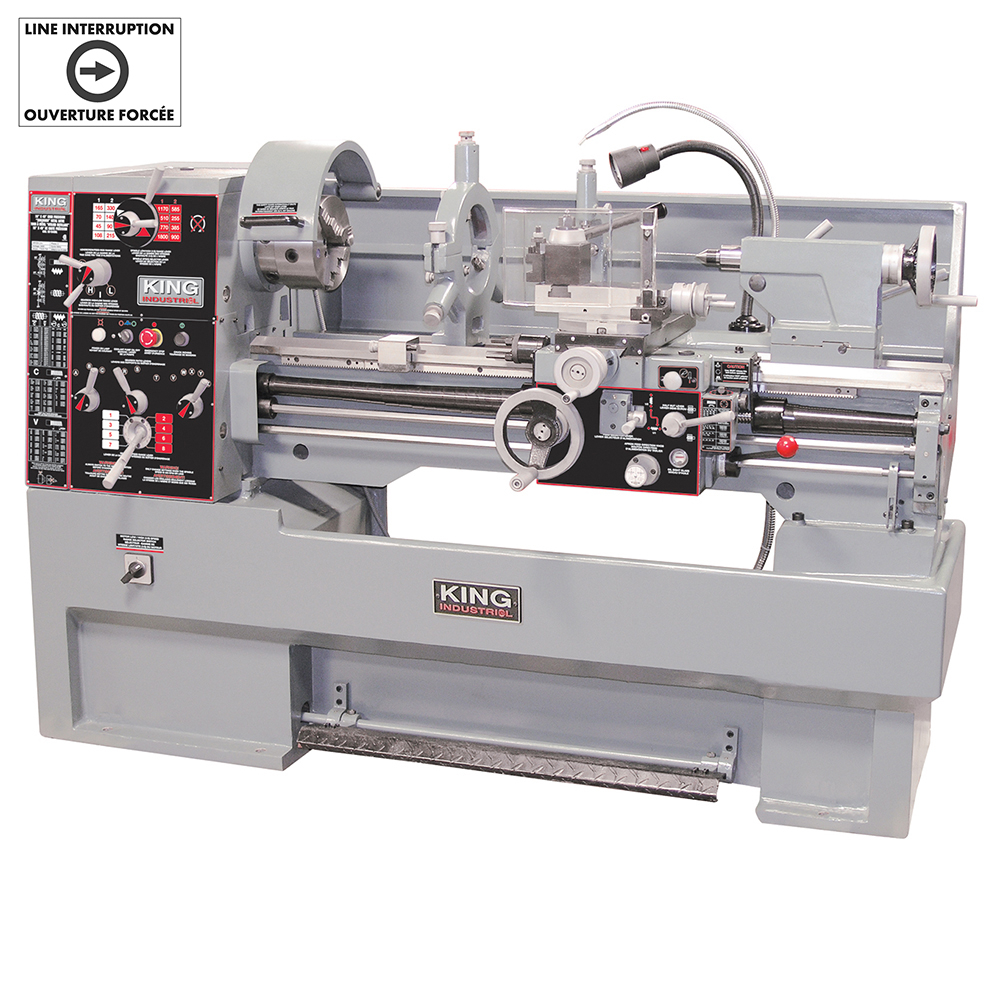

16" x 40" high precision Toolroom metal lathe with taper attachment

  • Powerful 600V, 3 phase, 2 speeds 4 HP motor

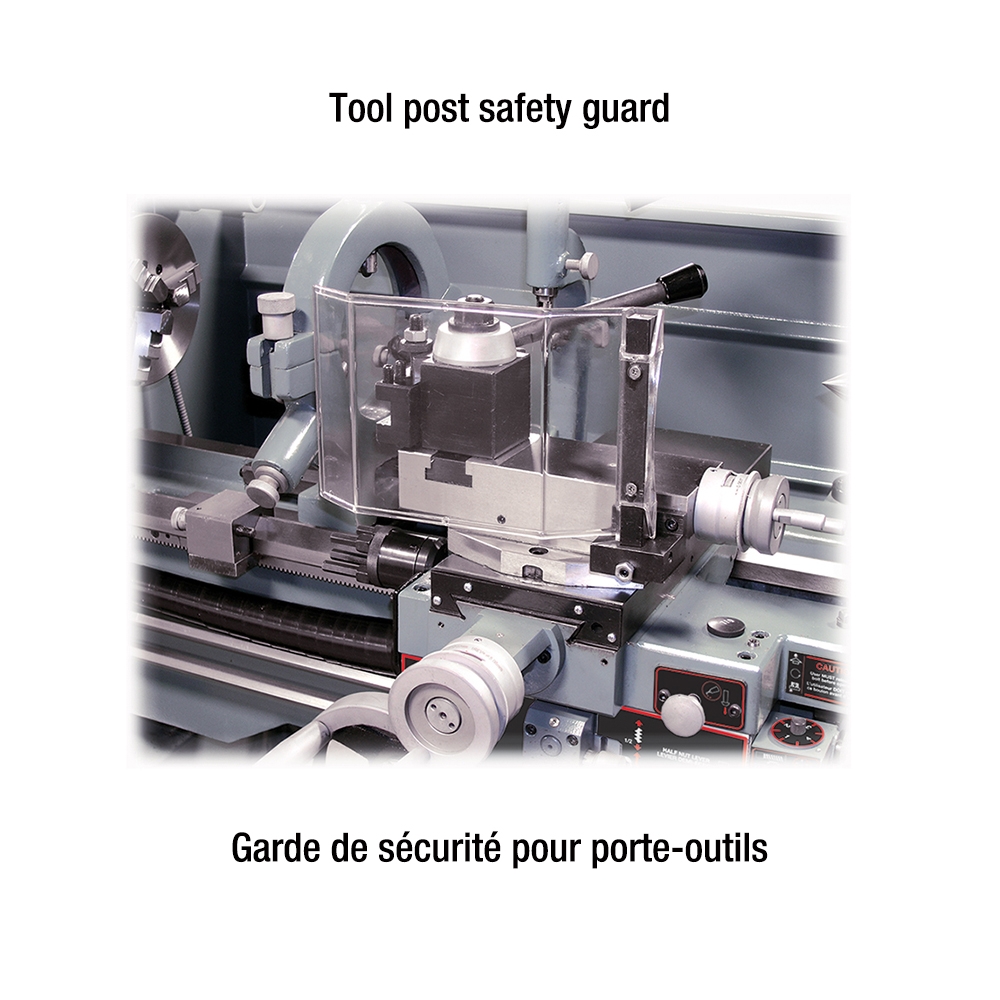

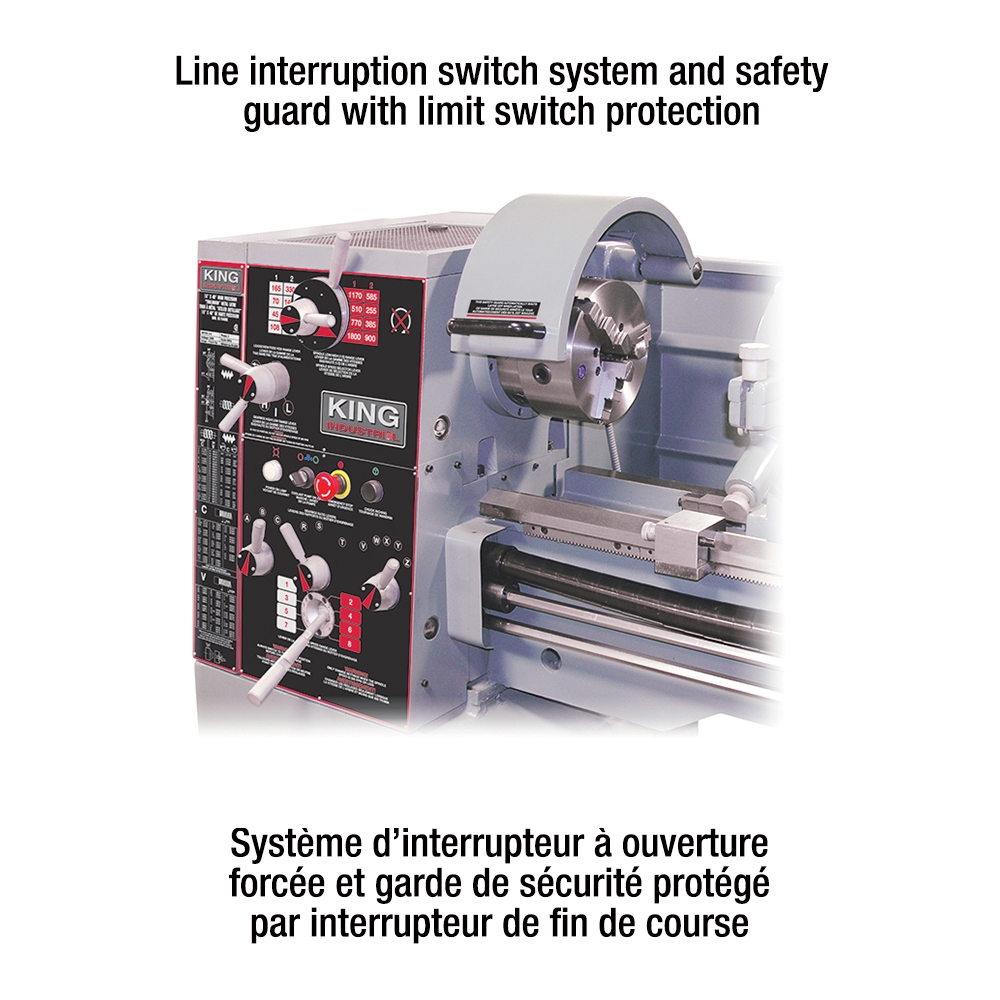

  • Safety features include line interruption switch system, chuck safety guard with limit switch protection, lead screw protectors and tool post safety guard
  • Totally enclosed gearbox allows cutting Inch, Metric, Whitworth, Modular and Diametrical threads
  • Guideway is all induction hardened and precision ground
  • Spindle foot brake incorporated in the full length cabinet stand
  • Comes complete with 8"-3 jaw chuck with inside and outside jaws, 12"-4 jaw chuck, quick change tool post and two 3/4” tool holders, steady and follow rests with roller guides, 14" (D1-6) camlock face plate, MT #4 standard dead centre, MT #4 carbide tipped dead centre, MT #4 to MT #6 spindle sleeve adapter, halogen light, coolant system, full length splash guard, manual micrometer carriage stop, tool box and wrenches

Substitute Banks Item
UPC
772995011742

Specification

Specification

  • SWING OVER BED16"
  • SWING OVER CROSS SLIDE10"
  • DISTANCE BETWEEN CENTERS40"
  • SWING OVER GAP22"
  • WIDTH OF BED10"
  • SPINDLE BORE DIAMETER2"
  • TAPER IN SPINDLE BOREMT #6
  • RANGE OF SPINDLE SPEEDS16 (45-1,800 RPM)
  • NUMBER AND RANGE OF INCH THREADS45 (2-72 TPI)
  • NUMBER AND RANGE OF METRIC THREADS39 (0.2 - 14 mm)
  • NUMBER AND RANGE OF MODULAR PITCHES18 (0.3 - 3.5 MP)
  • NUMBER AND RANGE OF DIAMETRICAL PITCHES21 (8 - 44 DP)
  • LONGITUDINAL FEED RANGE0.002" - 0.067"
  • TRANSVERSAL FEED RANGE0.0011" - 0.038"
  • TAILSTOCK CENTER TAPER/TRAVELMT #4, 4-3/4"
  • MOTOR (2 SPEED)4 HP/ 5 Amp., 600V, 3 phase, 60 Hz
  • COOLANT PUMP MOTOR1/8 HP/ 600V, 3 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT76-3/8" x 33-1/2" x 51-1/4" / 2,975 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT82" x 33" x 65" / 3,250 lbs
  • UPC7 72995 01174 2
