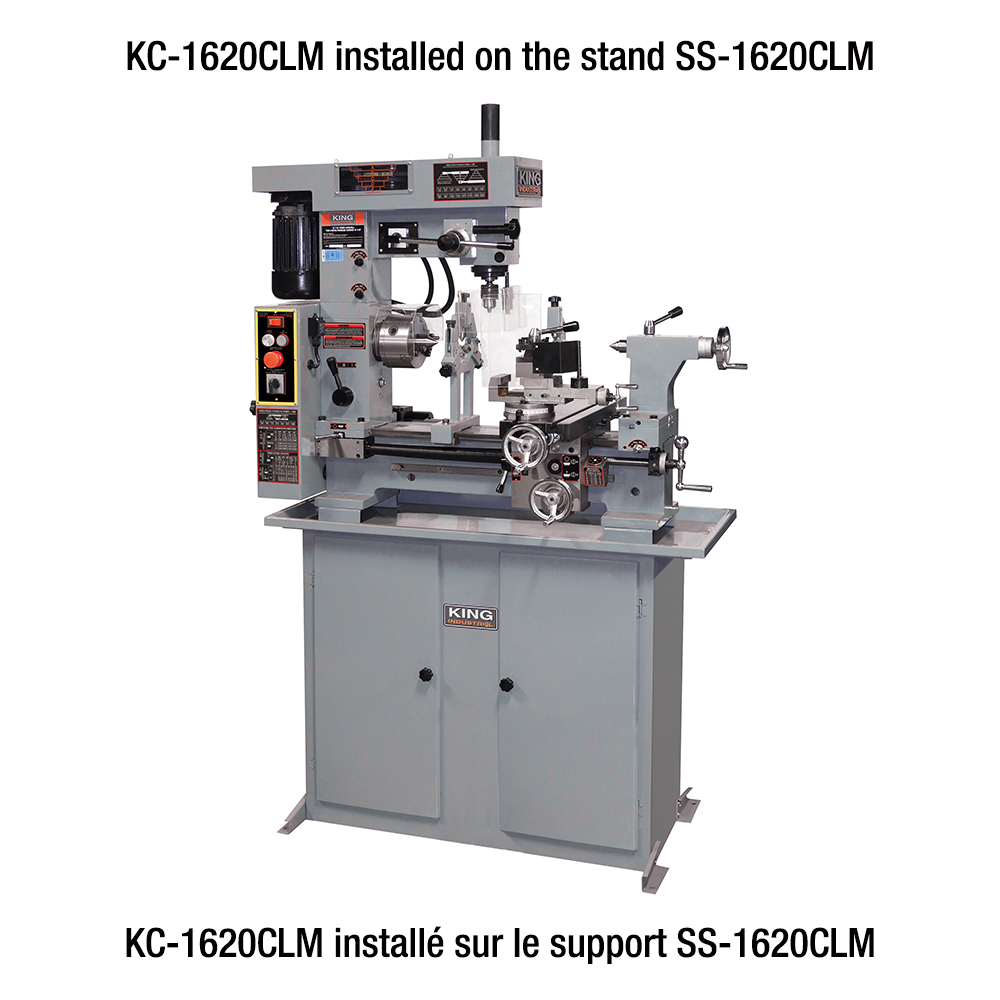

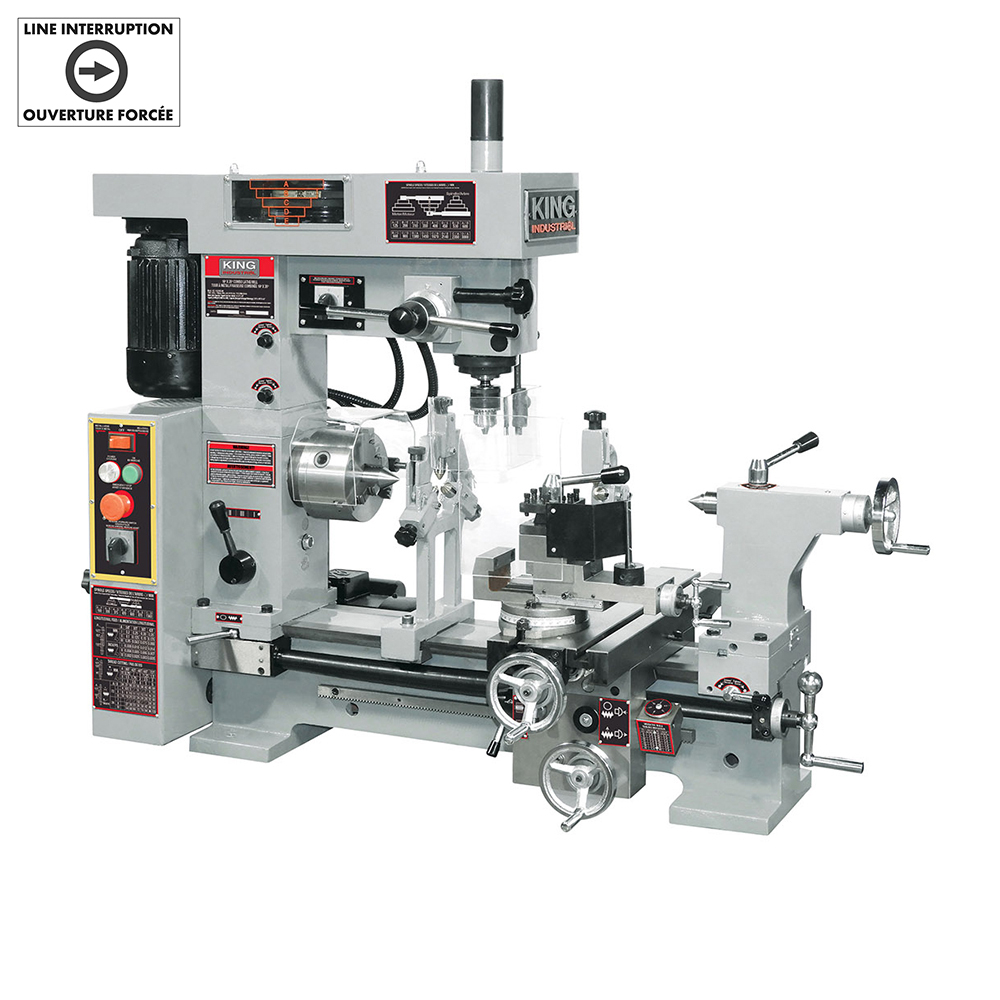

KC-1620CLM 16" X 20" COMBO LATHE/MILL Zoom

MODEL: KC-1620CLM

16" X 20" COMBO LATHE/MILL

  • Two powerful 3/4 HP 110V motors
  • Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
  • Easily change from Lathe mode to Mill mode
  • Forward/reverse switch for both operating modes
  • Bedways are hardened and precision ground
  • Comes with 5"- 3 jaw chuck, imperial and metric change gears, tool post, steady rest, follow rest, thread chasing dial indicator, MT#3 and MT#4 dead centres, 1/2" drill chuck and tool box with adjusting tools

Substitute Banks Item
UPC
772995015405
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • DISTANCE BETWEEN CENTRES20"
  • SWING OVER BED and carriage16-1/2" / 11-1/2"
  • SPINDLE BORE1-1/8"
  • HEADSTOCK/TAILSTOCK TAPERSMT#4 / MT#3
  • drill press Quill taperMT#3
  • cross slide travel8"
  • lathe spindle sppeds7 (160 - 1,360) RPM
  • thread cutting range36 (4-120 TPI) 22 (0.2-6 mm)
  • automatic feeding range0.002 - 0.014" / 0.05 - 0.35 mm
  • drilling/face mill/end mill capacities7/8" / 1-1/8" / 3-1/8"
  • max. distance spindle nose to milling table12
  • drilling speeds16 (120 - 3,000) RPM
  • motors (lathe/mill)3/4 HP, 110V, 9 Amp., 1 phase, 60 Hz
  • assembled DIMENSIONS (LXWXH) / WEIGHT43" x 19-1/2" x 38" / 515 lbs
  • package dimensions (lxwxh) / weight45" x 23" x 42" / 615 lbs
  • upc7 72995 01540 5
