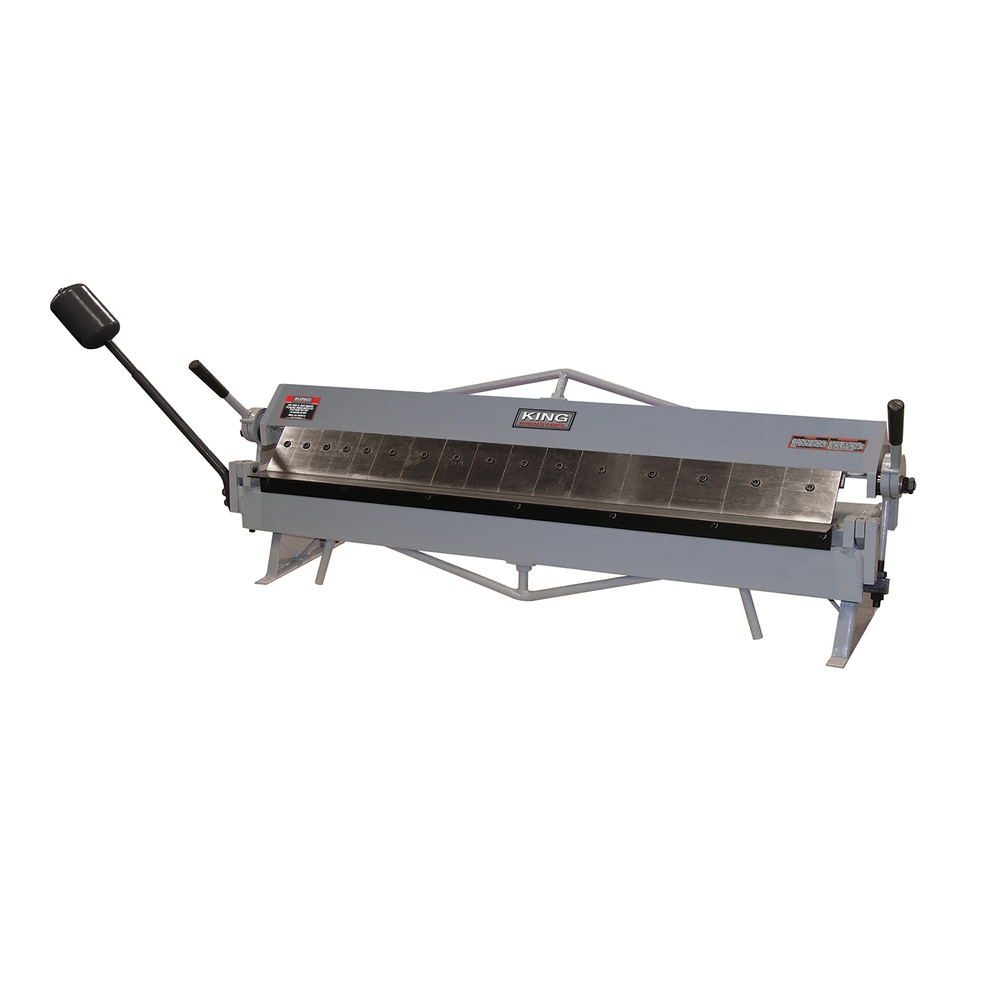

KC-BP4816 48" X 16 GA. BOX & PAN BRAKE Zoom

MODEL: KC-BP4816

48" X 16 GA. BOX & PAN BRAKE

  • Incorporates all the features of our standard handbrakes, but with greater range of applications
  • Sectioned fingers are easily removed for box bending and special forming operations
  • Wide assortment of finger widths allow greater versatility in the shop

Substitute Banks Item
UPC
772995012879
KING INDUSTRIAL

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CAPACITY (MILD STEEL)16 Gauge
  • BENDING LENTH48"
  • MAXIMUM LIFT OF BEAM1-1/2"
  • MINIMUM REVERSE BEND1/2"
  • MINIMUM FLANGE (MILD STEEL)5/16"
  • MAXIMUM DEPTH OF BOX3"
  • FINGER WIDTHS4 x 3", 3 x 4", 5 x 5"
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT72" x 15" x 28-3/4" / 315 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT62" x 17-1/2" x 23" / 355 lbs
  • UPC7 72995 01287 9
