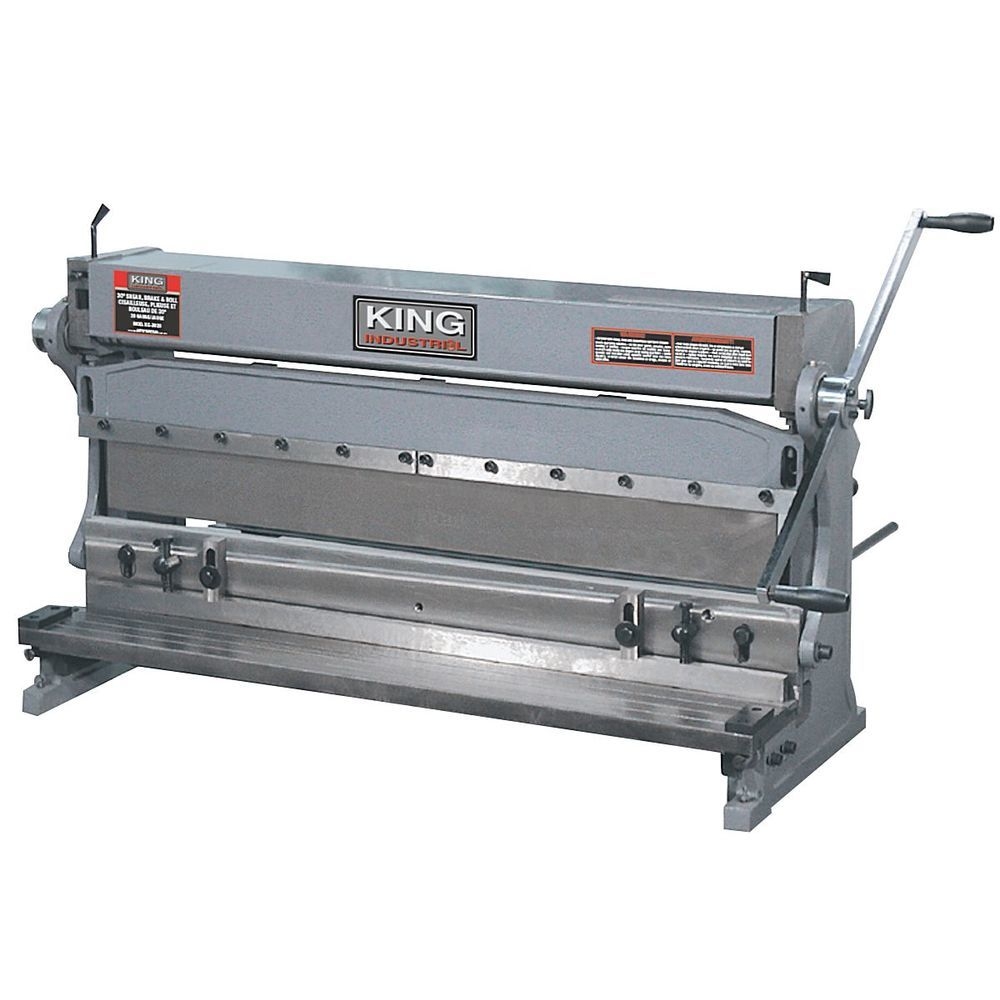

KC-3020 30" X 20 GA. 3 IN 1 SHEAR, BRAKE & ROLL Zoom

MODEL: KC-3020

30" X 20 GA. 3 IN 1 SHEAR, BRAKE & ROLL

  • Sturdy cast-iron frame
  • Bed is precision ground for an accurate working surface
  • Dual edge, reversible shear blade
  • One female "V” shaped die
  • Slip rolls are precision turned, ground and polished with wire grooves
  • Includes adjustable length stop, height stop block and extension bars with 90° angles

Substitute Banks Item
UPC
772995012848
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • SHEAR
  • MAXIMUM THICKNESS (MILD STEEL)20 Gauge
  • MAXIMUM LENGTH30"
  • MATERIAL STOP RANGE3-1/4" - 19-1/2"
  • BRAKE
  • MAXIMUM THICKNESS (MILD STEEL)20 Gauge
  • SHUT HEIGHT5-1/8"
  • MATERIAL STOP RANGE3-1/4" - 19-1/2"
  • MALE DIE SIZES10", 8", 6", 3", 2", 1"
  • SLIP ROLL
  • NUMBER OF ROLLS3
  • MAXIMUM THICKNESS (MILD STEEL)20 Gauge
  • MAXIMUM LENGTH29"
  • ROLLER DIAMETER1-1/2"
  • MINIMUM ROLL DIAMETER1-1/2" ID
  • MINIMUM RADIUS3/4"
  • WIRE GROOVE DIAMETERS5/32", 13/64", 7/32"
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT40" x 30" x 22" / 300 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT39" x 16" x 26" / 337 lbs
  • UPC7 72995 01284 8
