MODEL: KC-7300C

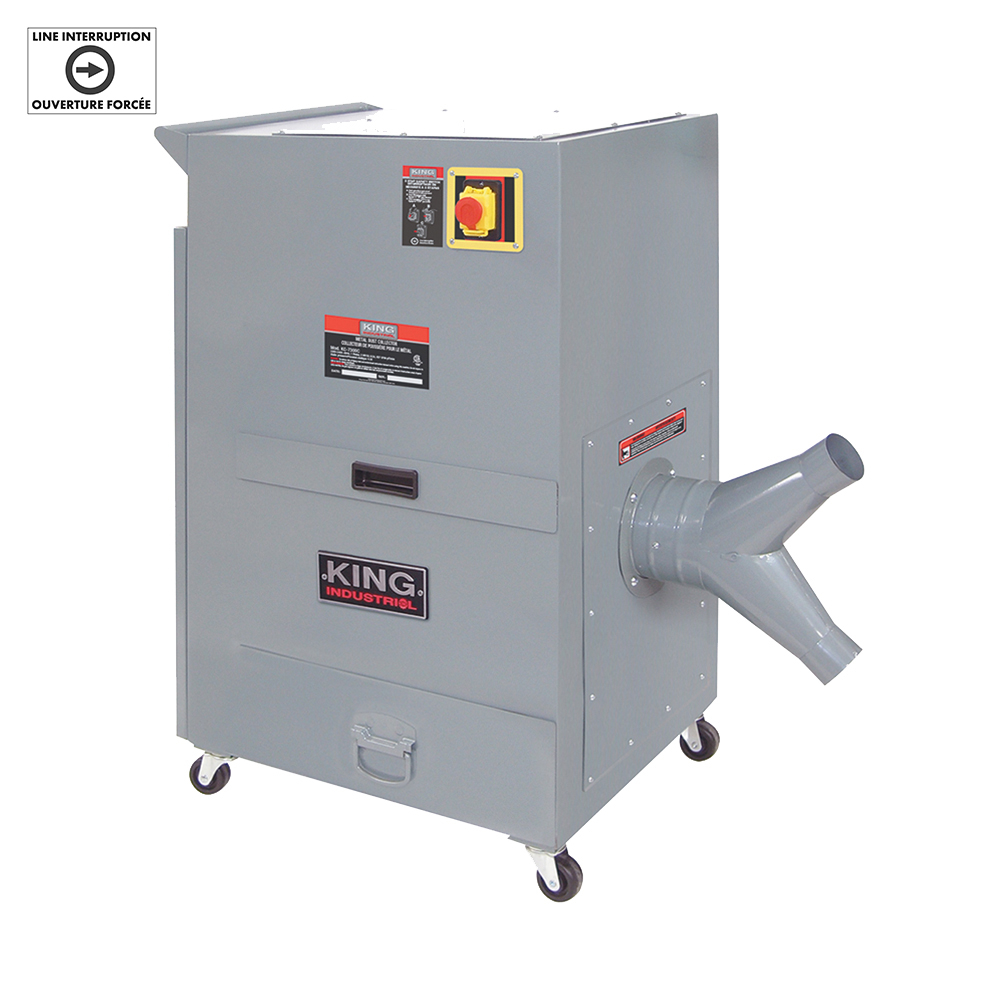

2 HP METAL DUST COLLECTOR

  • Powerful 2 HP, 220V motor
  • 2 Step activation safety switch with line voltage interruption in case of power failure
  • Ideal for collection of metal chips and abrasive dust produced by metal sanders, grinders, cold cut saws, deburring and chamfering machines
  • Large metal chips colection drawer is easy to access and clean
  • 6” inlet with Y-inlet adapter with two 3" dust inlets allowing up to connect up to two metalworking machines
  • Comes with large paper filter and iron activated carbon filter

Substitute Banks Item
UPC
772995014705

Specification

Specification

  • MAXIMUM AIR SUCTION CAPACITY937 CFM
  • STATIC PRESSURE (INCH OF WATER)9.32
  • NOICE LEVEL READING AT 60"81 dB
  • FILTER SIZES (PAPER/CARBON)19-3/8" x 15-3/8" x 7/8" and 25" x 16" x 1"
  • FILTER EFFICIENCY99% @ 5 Micron
  • DUST PORT INLET / Y ADAPTER INLETS SIZE6" / 2 x 3"
  • MOTOR2 HP / 9 Amp.
  • VOLTAGE220V, 1 phase, 60Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHt40-1/4" x 22-1/2" x 43-3/4" / 222 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT28-1/2" x 24" x 40-1/2" / 225 lbs
  • UPC7 72995 01470 5
