MODEL: KC-118FC

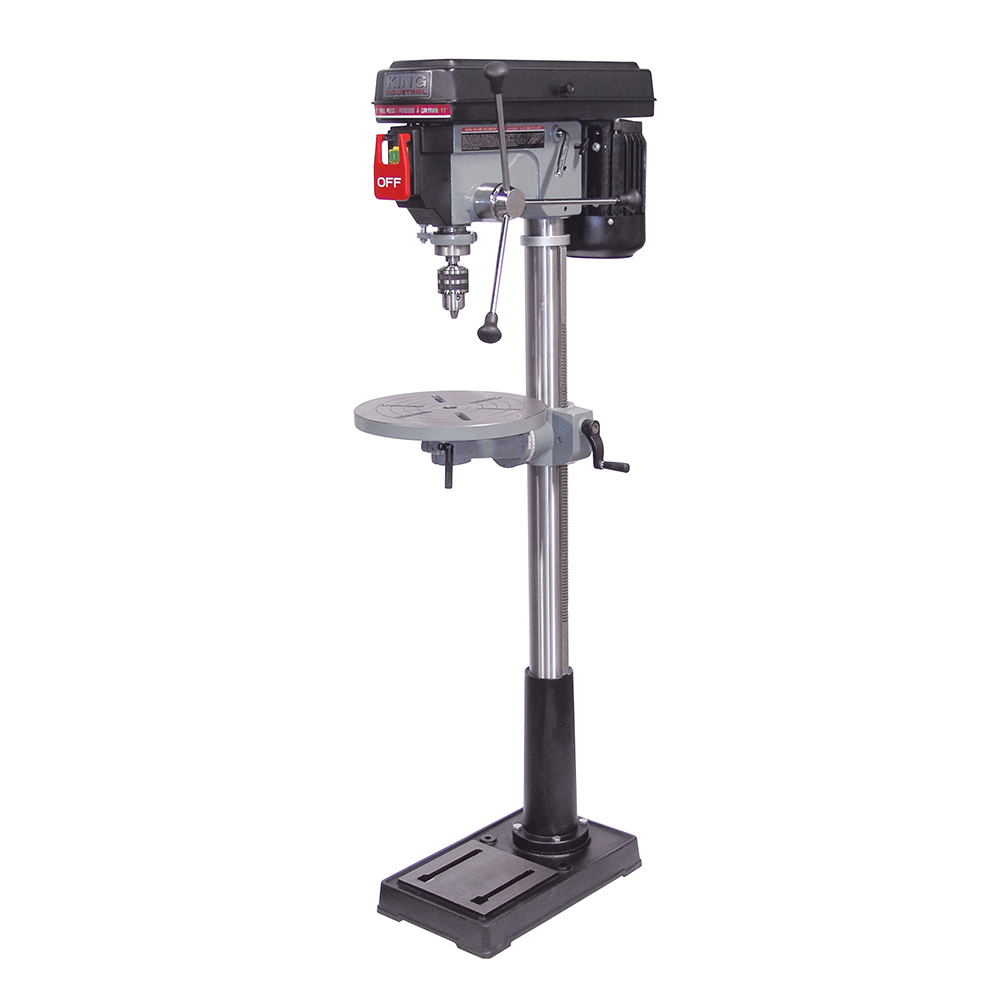

17" DRILL PRESS

  • Powerful 1 HP motor

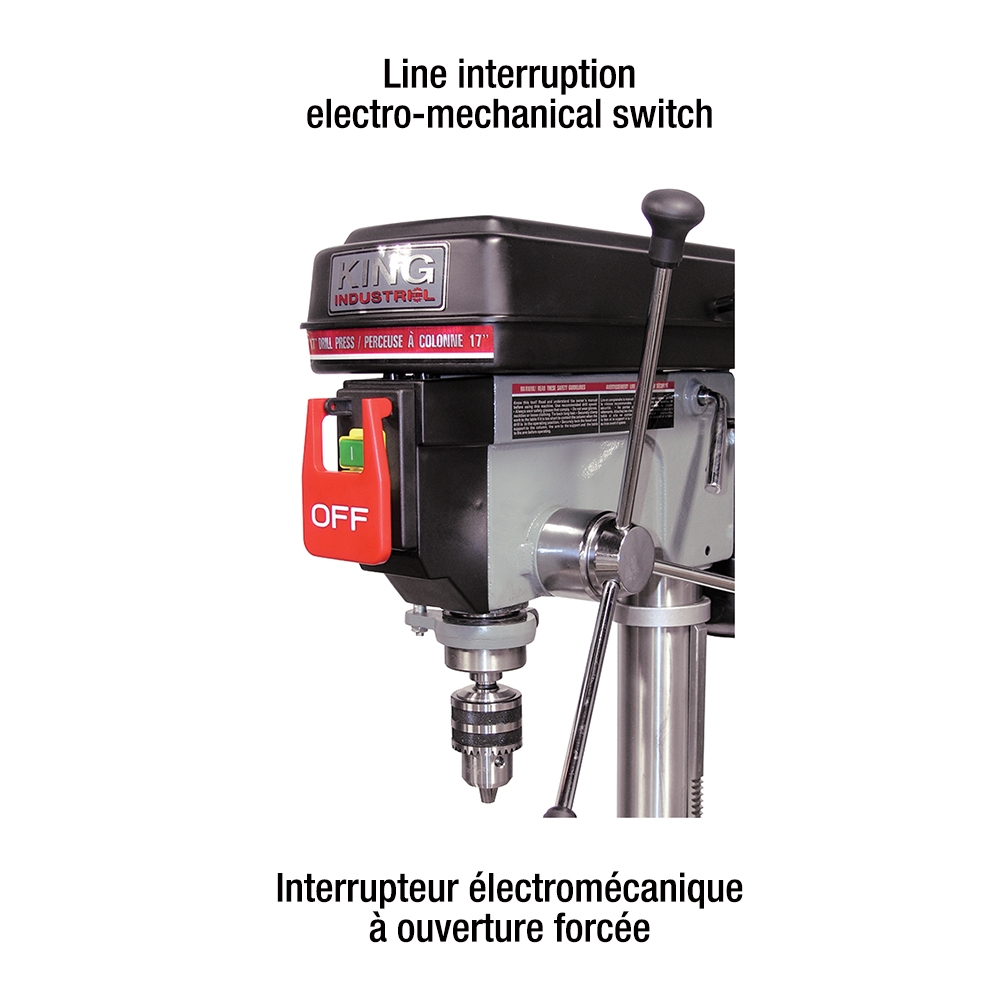

  • Line interruption electro-mechanical switch needs a restart after a power failure
  • Spindle is supported by high quality ball bearings
  • Cast-iron pulleys reduce vibrations
  • 45° tilting table for angular drilling
  • Non-slip rubber feed handles
  • 16 speeds
  • Light socket incorporated into drill press head (standard light bulb not included)

Substitute Banks Item
UPC
772995002559

Video

Video

Specification

Specification

  • CAPACITY3/4"
  • CHUCK SIZE5/8"
  • SWING17"
  • STROKE3-1/4
  • MAX. DISTANCE FROM CHUCK TO TABLE23-3/4"
  • MAX. DISTANCE FROM CHUCK TO BASE44"
  • TABLE SIZE13-3/4"
  • SPINDLE TAPERMT #2
  • QUILL DIAMETER65 mm
  • SPEEDS16 (240-3,400) RPM
  • MOTOR12.5 Amp.@110V, 6.25 Amp.@220V
  • VOLTAGE110V/220V, 1 phase, 60Hz
  • PRE-WIRED AT110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT13-3/4" x 25" x 64" / 185 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT54-3/4" x 21" x 11" / 200 lbs
  • UPC7 72995 00255 9
