MODEL: 83702

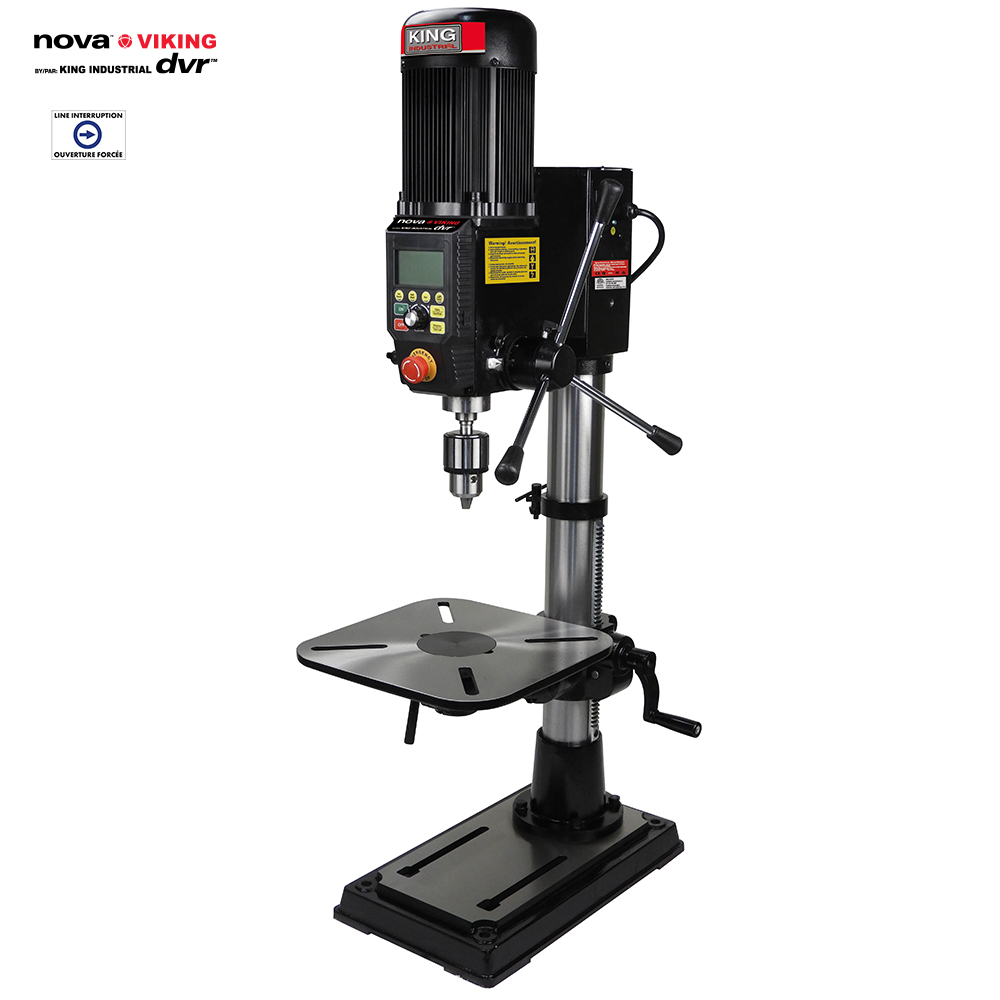

16" NOVA VIKING DVR BENCHTOP DRILL PRESS

  • Smart drill press combines common drill press features with state of the arttechnology
  • Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration

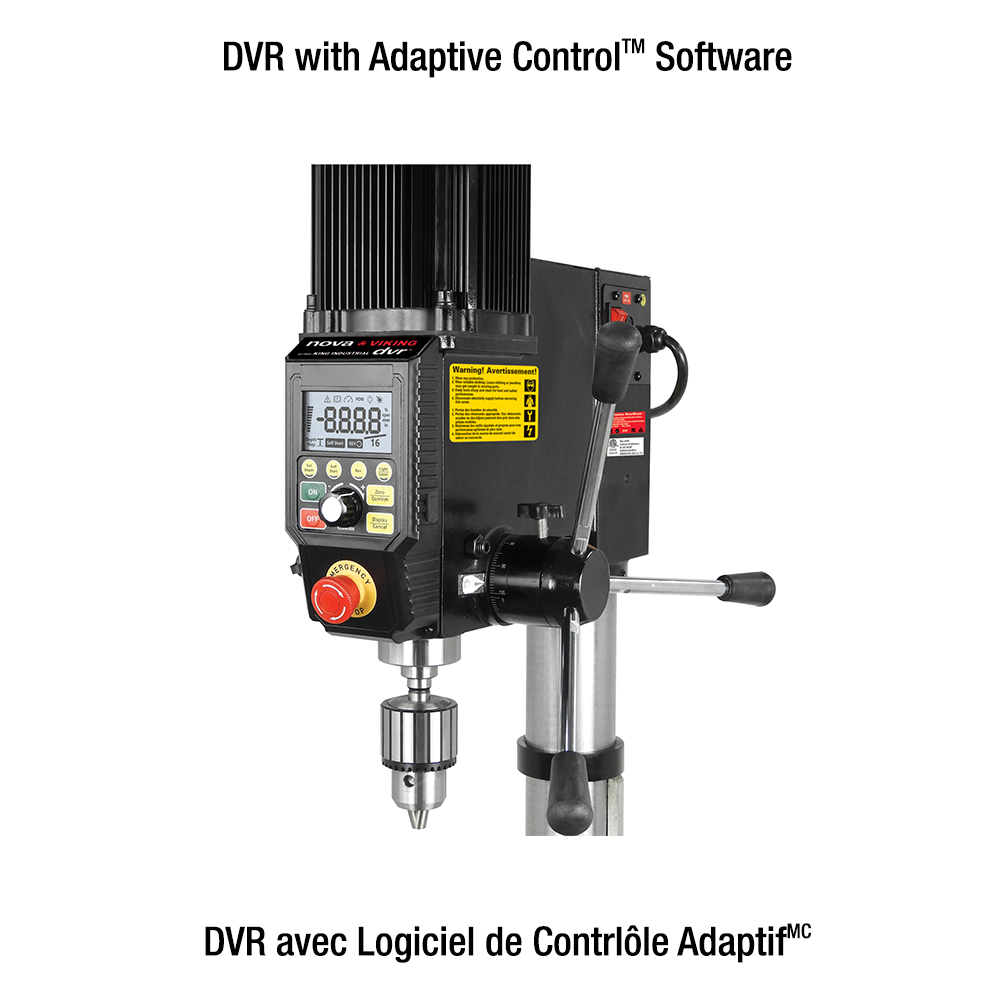

  • Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive ControlTM Software which works for you to produce optimum results in wood, metal, plastic and glass
  • Constant torque under load, depth and vibration sensors and emergency stop
  • Intelligent speed selection and dial knob for precise speed adjustments
  • Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
  • Electronic braking and forward/reverse
  • Convenient LED light and twin laser guide system
  • Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
Substitute Banks Item
UPC
772995021253

Specification

Specification

  • CAPACITY5/8"
  • CHUCK SIZE5/8"
  • SWING16"
  • MAX. DISTANCE CHUCK TO TABLE12-5/8"
  • MAX. DISTANCE CHUCK TO BASE22-5/8"
  • STROKE4-1/2"
  • TABLE SIZE12-5/8" x 12-5/8"
  • SPINDLE TAPERMT #2
  • QUILL DIAMETER60 mm
  • VARIABLE SPEED RANGE (OPTIONAL SETTING)150 - 3,000 RPM (3,000 - 6,000)
  • MOTOR1 HP, 15 Amp.
  • VOLTAGE120V, 60 Hz, 1 phase
  • ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT12-5/8" x 20" x 44-3/4" / 154 lbs
  • PACKAGE DIMENSIONS(LXWXH) / WEIGHT45-1/2" x 21" x 44-3/4" / 164 lbs
  • UPC7 72995 02125 3
