59012DS 7" X 12" NOVA DVR DUAL SWIVEL METAL CUTTING BANDSAW Zoom

MODEL: 59012DS

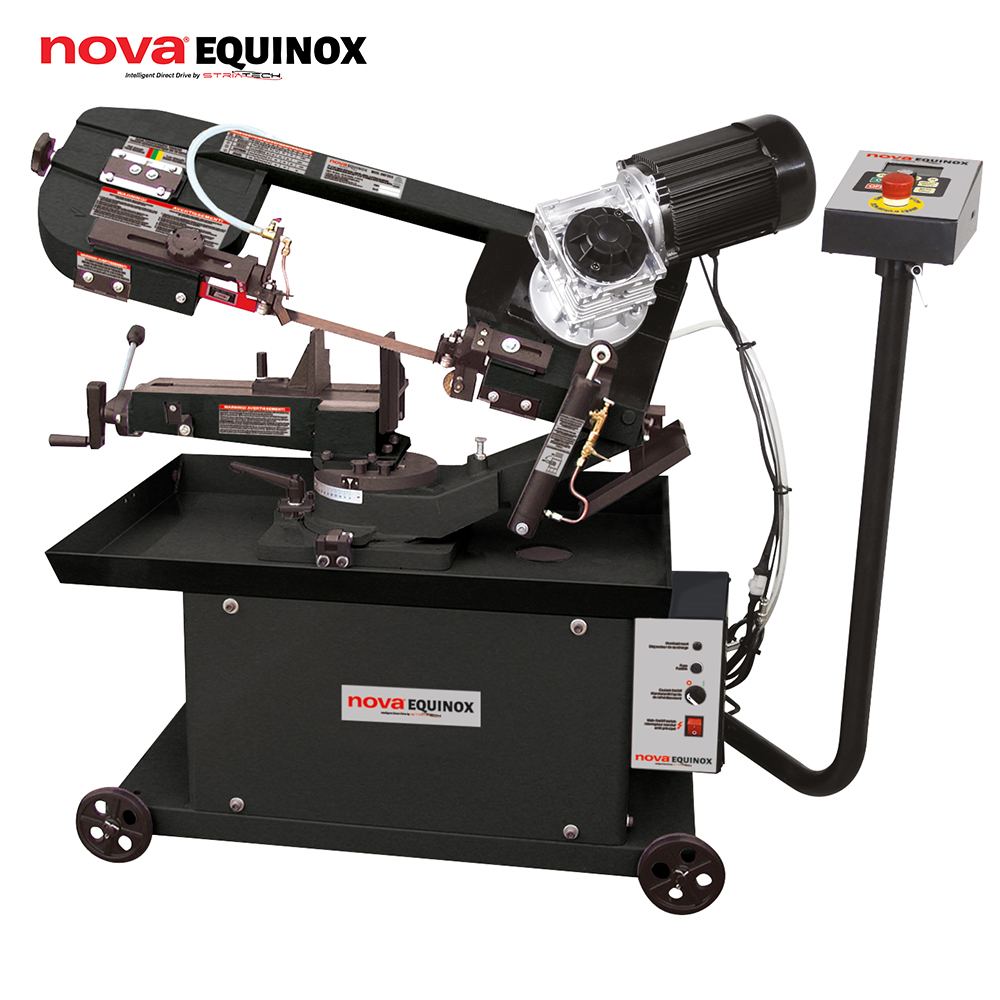

7" X 12" NOVA DVR DUAL SWIVEL METAL CUTTING BANDSAW

  • Smart metal bandsaw combines common bandsaw features with state of the art technology
  • Powerful direct drive 1 HP high torque brushless motor with no pulleys or belts to cause vibration
  • Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive ControlTM Software which works for you to produce optimum results for a superior finish
  • Constant torque under load and electronic braking emergency stop

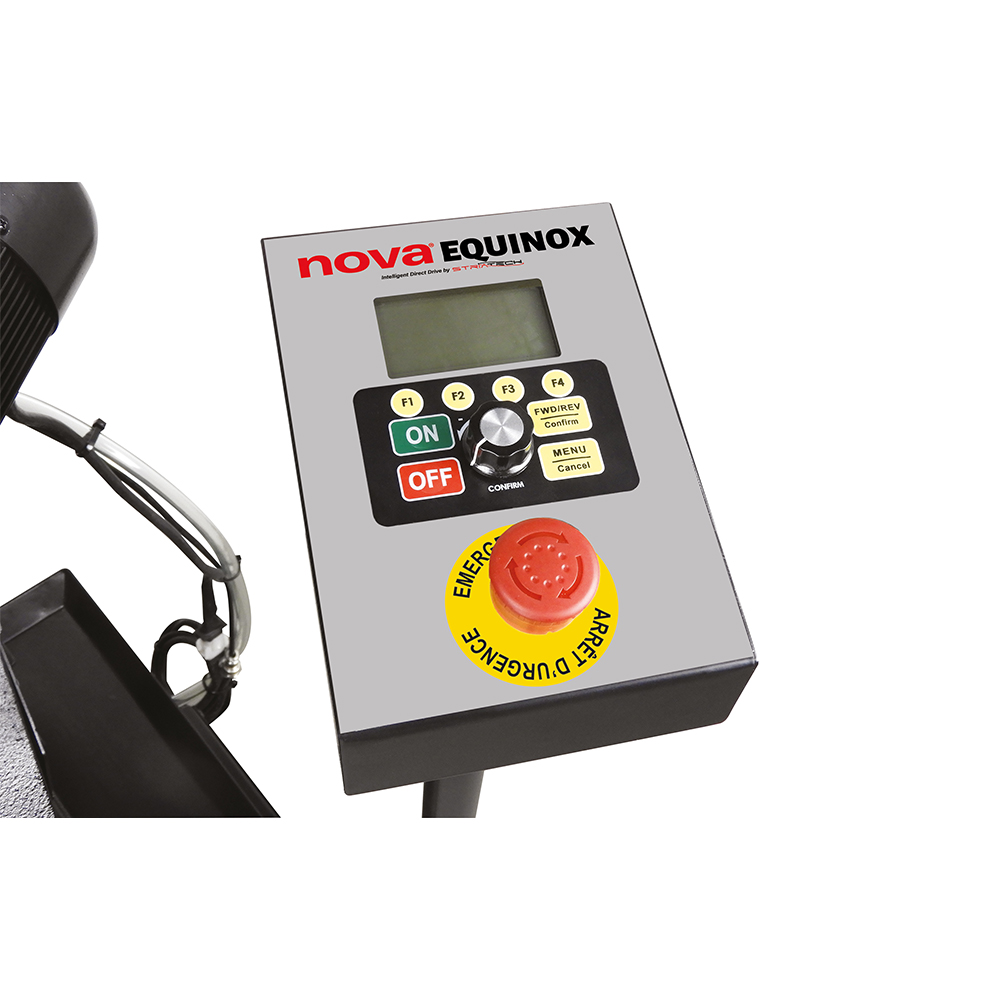

  • Intelligent material speed selection and dial knob for precise speed adjustments

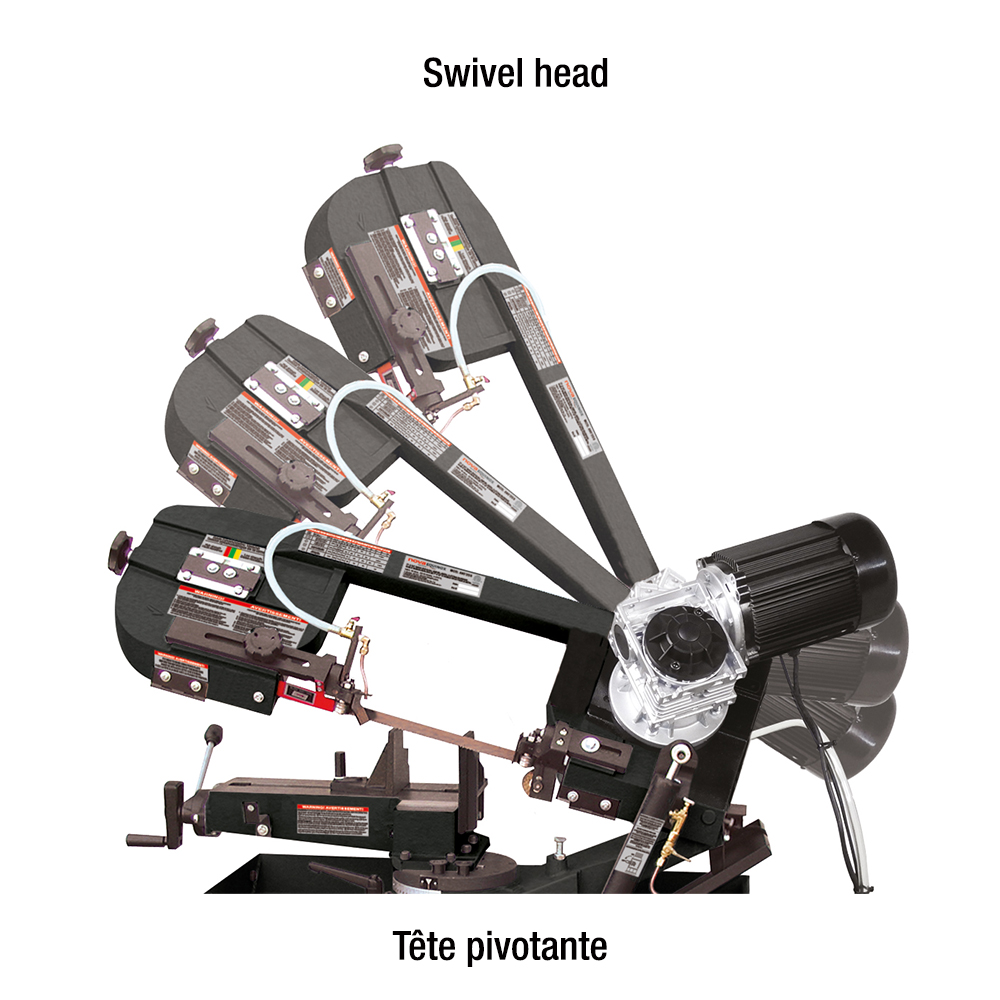

  • Head swivels 0°- 45° to the right and left
  • Adjustable hydraulic downfeed control
  • Comes with blade, workstop, firmware USB cable and adjustment wrenches
Substitute Banks Item
UPC
669762590121
NOVA EQUINOX

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • cutting capacity at 90°Rect. 7" x 12" • Diam. 7"
  • cutting capacity at 45°Rect. 3-1/2" x 5-1/2" • Diam. 5"
  • speeds80 - 340 FPM
  • blade93" x 3/4" x 0.032"
  • MOTor12 Amp. @ 120V / 7.5 Amp. @ 240V
  • VOLTAGE120V, 1 phase, 60 Hz
  • table height from floor28"
  • assembled dimensions (lxwxh) / weight50" x 26" x 44" / 320 lbs
  • package dimensions (lxwxh) / weight52" x 27-1/2" x 43" / 365 lbs
  • UPC6 69762 59012 1
