KC-8314 14" METAL CUTTING CHOP SAW Zoom

MODEL: KC-8314

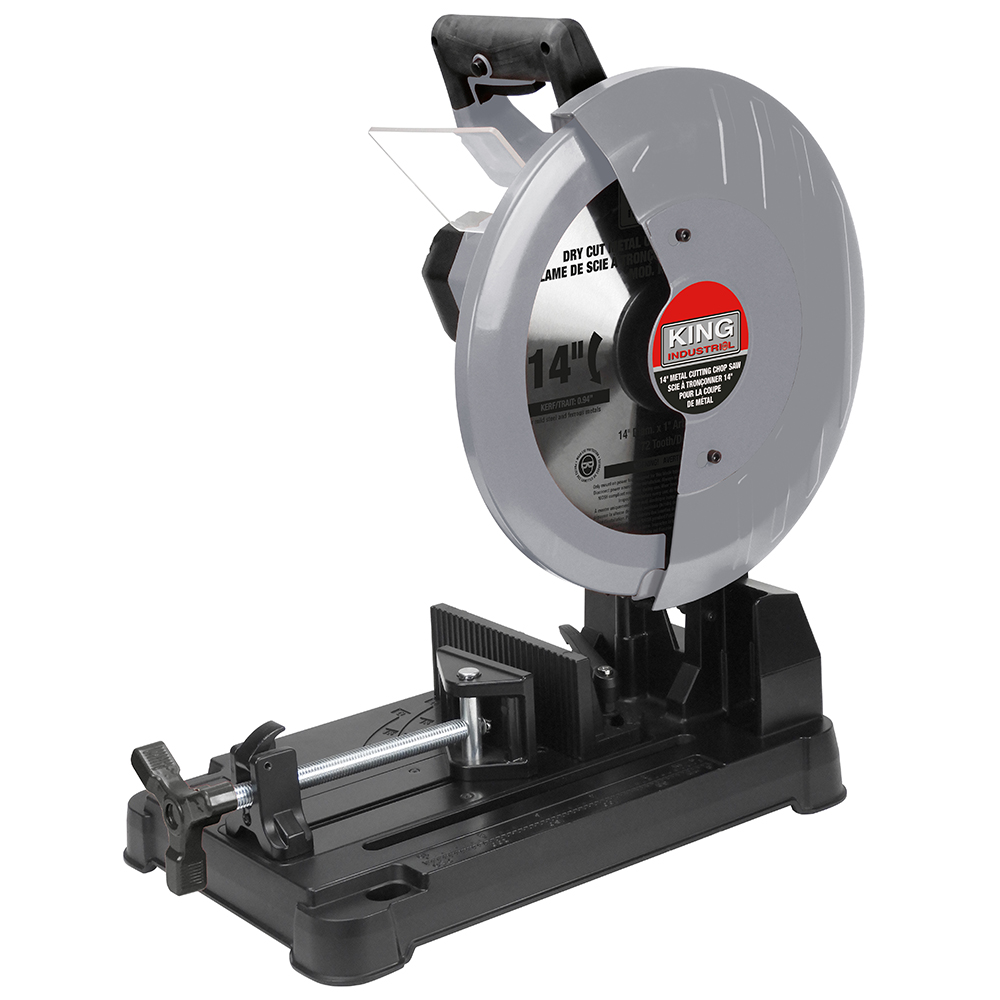

14" METAL CUTTING CHOP SAW

  • Powerful 15 Amp., 1,450 RPM motor
  • High quality 14" TCG/FTG Chop Saw blade included for cutting mild steel and ferrous metals
  • Produces low spark, smooth, burr-free cuts
  • High torque gearbox

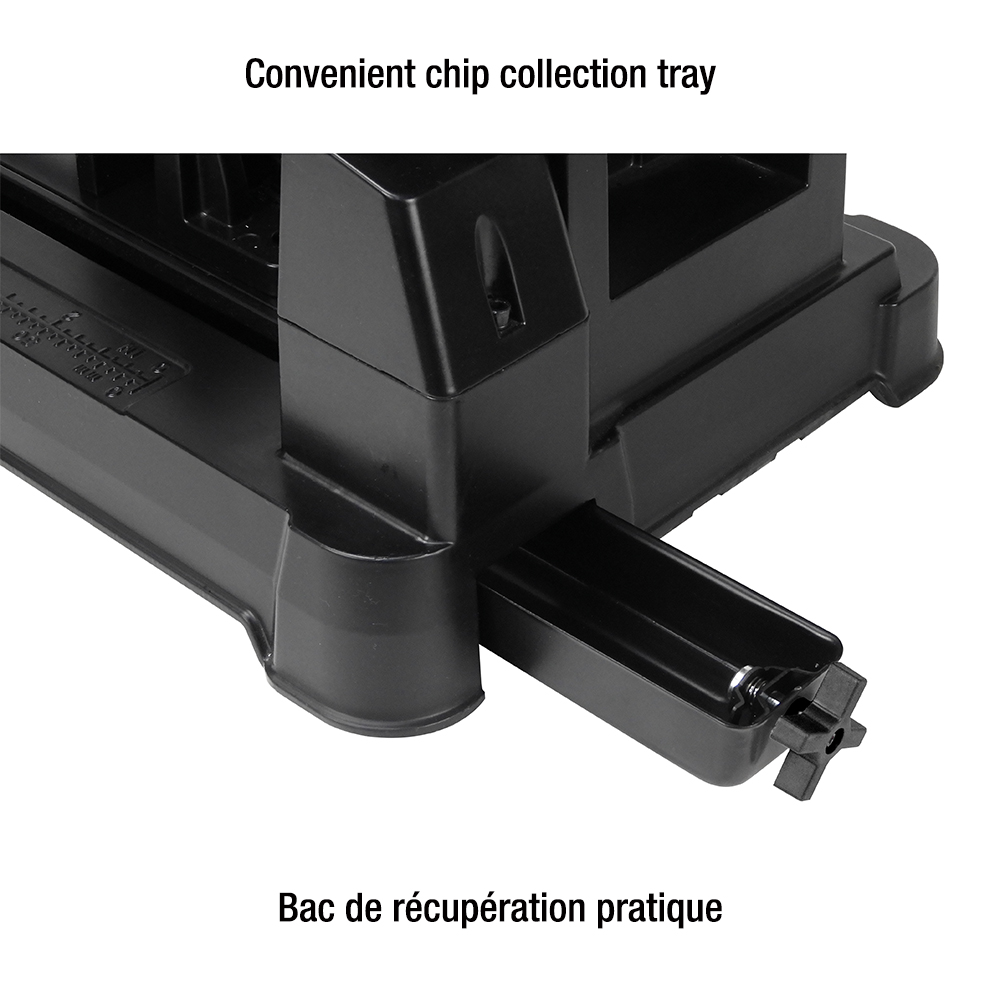

  • Spark deflector and convenient chip collection tray
  • Large D-shaped safety trigger switch
  • Heavy-duty steel base

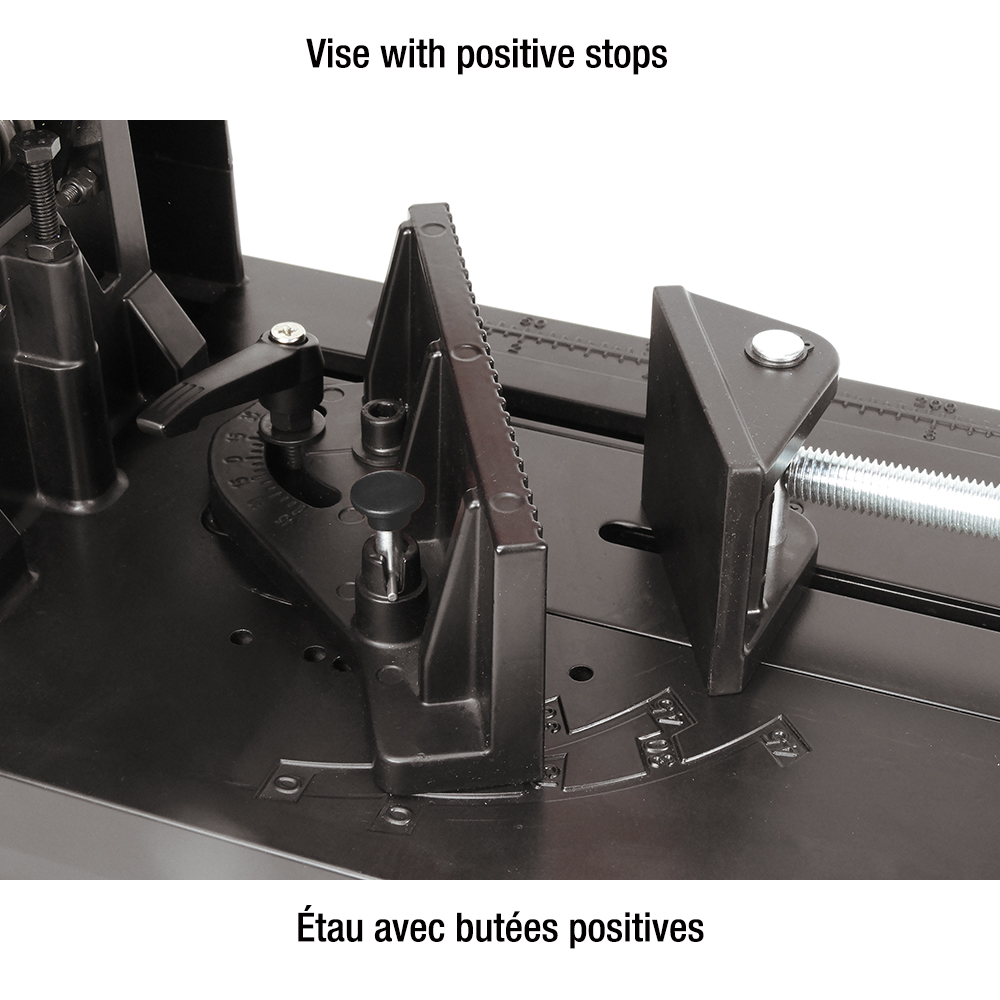

  • Quick release vise with adjustable positive stops at 00, 150, 300 and 450
  • Comes with 14" X 72 carbide tooth TCG/FTG Chop Saw blade and adjustment hex. keys
Substitute Banks Item
UPC
772995022052
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • Motor15 Amp.
  • Voltage120V, 1 phase, 60 Hz
  • Diameter of arbor1”
  • Blade speed1,450 RPM
  • Max. square4-1/8"
  • Max. depth of cut4-3/4"
  • Max. width of cut7-1/4"
  • Assembled dimensions (LxWXH) / weight23" x 14" x 24" / 45 lbs
  • Package dimensions (LxWXH) / weight22-1/2" x 15-1/2" x 18" / 50 lbs
  • UPC7 72995 02205 2
