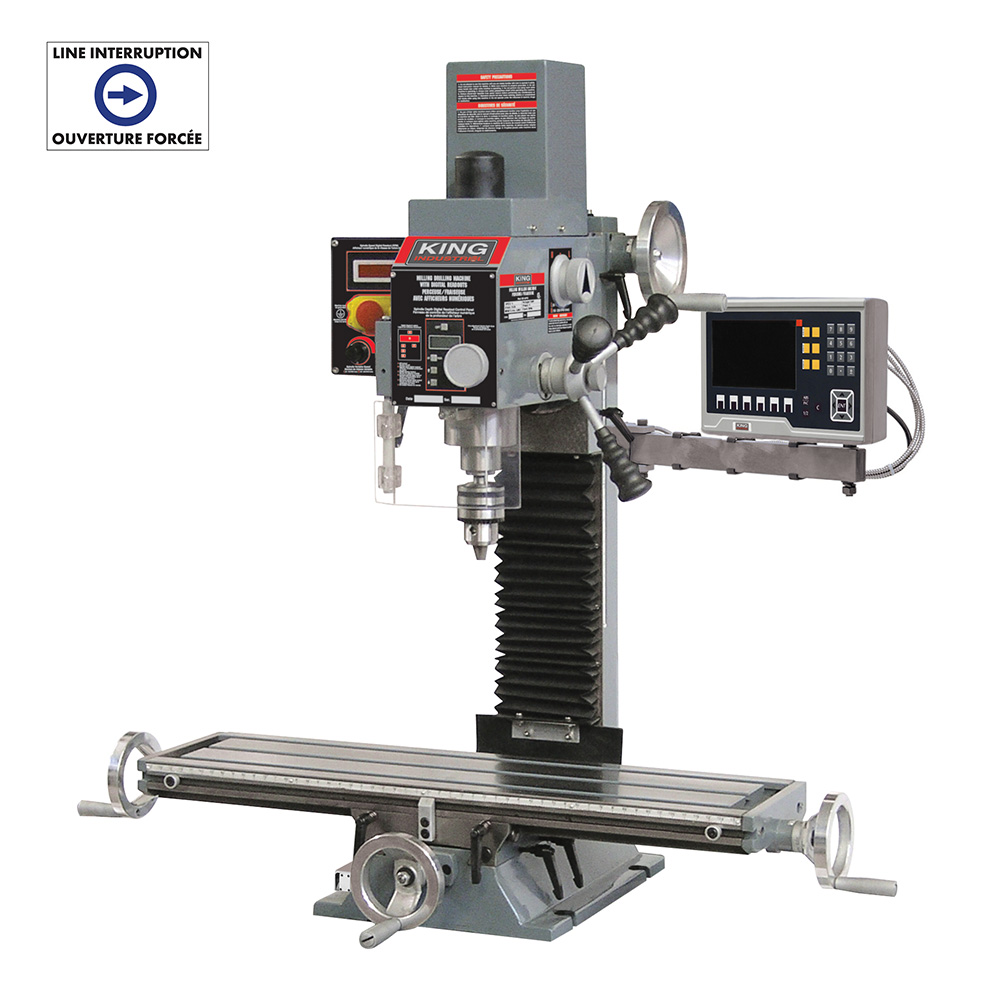

KC-20VS-2/DRO MILLING DRILLING MACHINE WITH 3 AXIS DIGITAL READOUT Zoom

MODEL: KC-20VS-2/DRO

MILLING DRILLING MACHINE WITH 3 AXIS DIGITAL READOUT

  • Powerful 1 HP, 120V single phase DC motor
  • 3 axis (X, Y, Z) digital readout (DRO) for precise operations and repeatable results

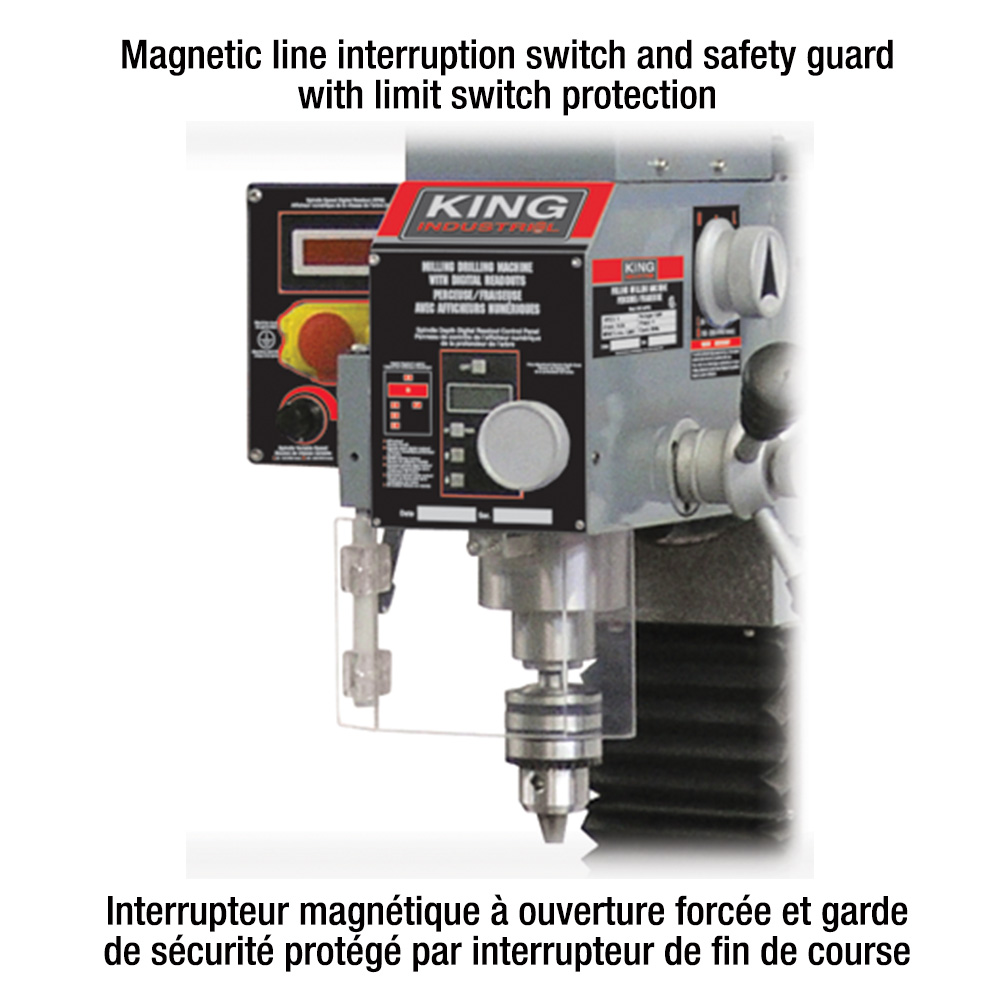

  • Safety guard with limit switch protection
  • Spindle depth digital readout and control panel with metric and imperial readings
  • Spindle RPM digital readout & spindle depth fine feed knob
  • Forward/reverse switch and variable speed selector dials
  • Coolant trough in table
  • Comes with 1/2" chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box
Substitute Banks Item
UPC
7-72995-02230-4
KING INDUSTRIAL

DEALER LOCATORPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • DRILLING CAPACITY IN CAST-IRON3/4"
  • DRILLING CAPACITY IN STEEL5/8"
  • MAX. DISTANCE SPINDLE NOSE TO TABLE13"
  • SWING13"
  • SPINDLE TAPERR8
  • SPINDLE STROKE2"
  • VARIABLE SPEEDS2 (50-1,125 / 100-2,250) RPM
  • FACE MILL CAPACITY2-1/2"
  • END MILL CAPACITY3/4"
  • MAX. LONGITUDINAL TRAVEL18-7/8"
  • CROSS TRAVEL6-7/8"
  • WORKING AREA OF THE TABLE7-1/16" x 27-1/2"
  • SIZE OF T-SLOT ON TABLE1/2"
  • MOTOR4.8 Amp., 2,250 RPM
  • VOLTAGE120V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT35-1/2” x 24” x 36-1/4” / 304 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT17-1/2” x 16-1/2” x 32-1/2” / 348 lbs
  • UPC7 72995 02230 4
