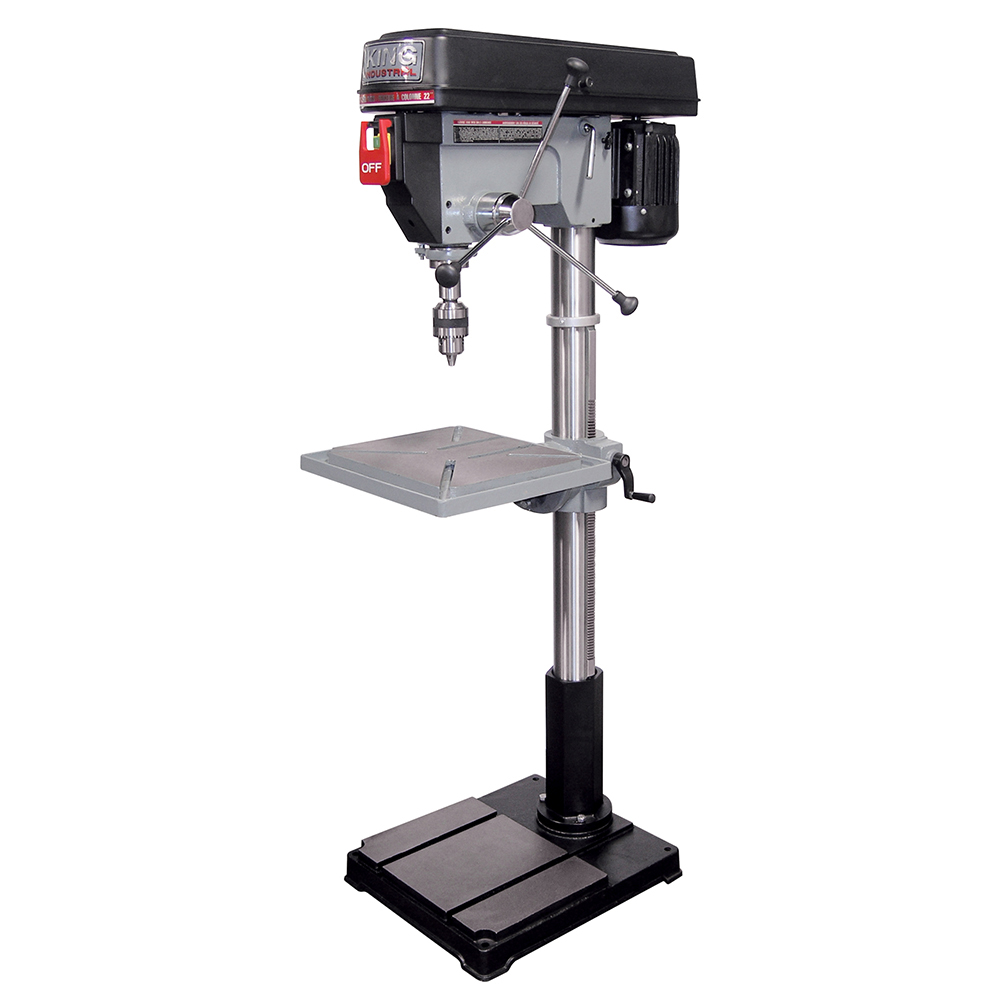

KC-122FC 22" DRILL PRESS Zoom

MODEL: KC-122FC

22" DRILL PRESS

  • Powerful 1 HP motor

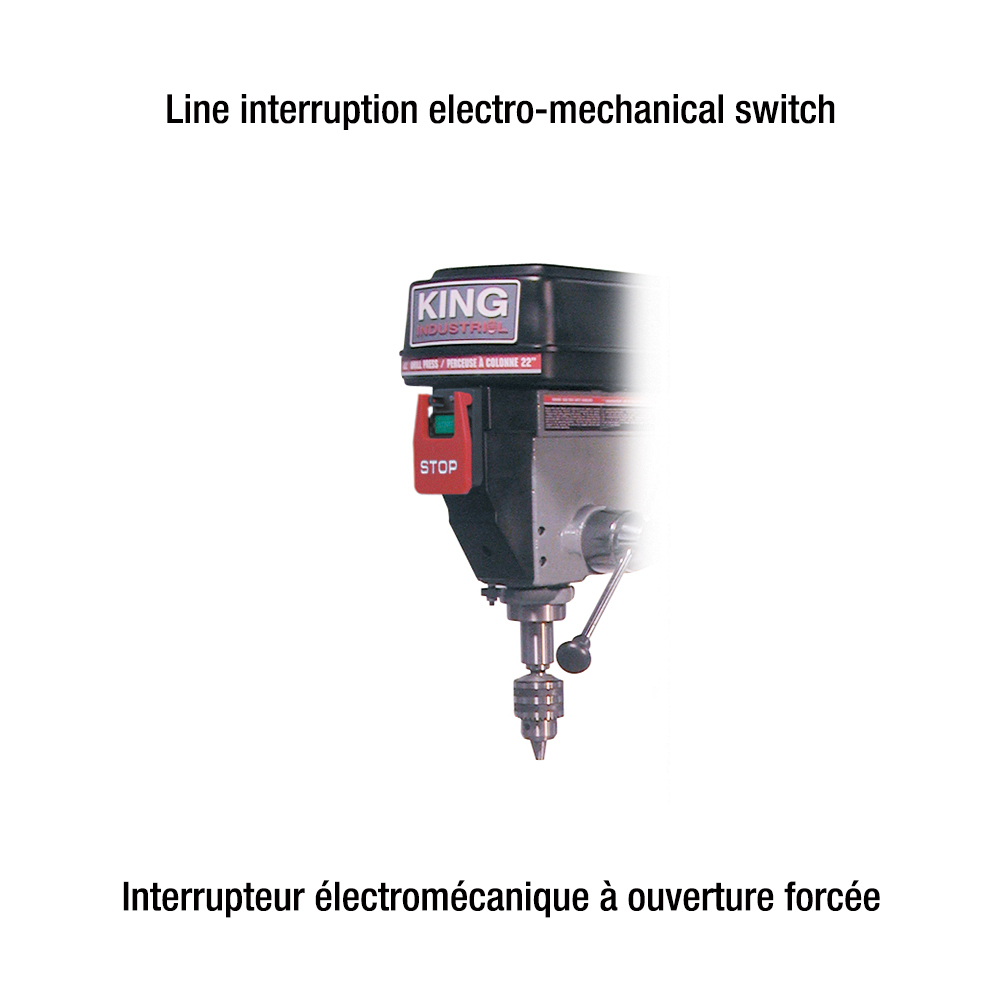

  • Line interruption electro-mechanical switch needs a restart after a power failure
  • Spindle is supported by high quality ball bearings
  • Cast-iron pulleys reduce vibrations
  • 45° tilting table for angular drilling
  • Non-slip rubber feed handles
  • 12 speeds
  • Light socket incorporated into drill press head (standard light bulb not included)

Substitute Banks Item
UPC
772995002566
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Video

Video

Specification

Specification

  • CAPACITY1-1/4"
  • CHUCK SIZE3/4"
  • SWING22"
  • STROKE4-3/4"
  • MAX. DISTANCE FROM CHUCK TO TABLE21-3/4"
  • MAX. DISTANCE FROM CHUCK TO BASE41-7/8"
  • TABLE SIZE18-3/4" x 16-1/4"
  • SIZE OF T-SLOT ON TABLE5/8"
  • SPINDLE TAPERMT #4
  • QUILL DIAMETER75 mm
  • SPEEDS (RPM)12 (180 - 4,200)
  • MOTOR12.5 Amp.@110V, 6.25 Amp.@220V
  • VOLTAGE110V/220V, 1 phase, 60Hz
  • PRE-WIRED AT110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT18-3/4" x 33" x 69" / 320 lbs
  • UPC7 72995 00256 6
