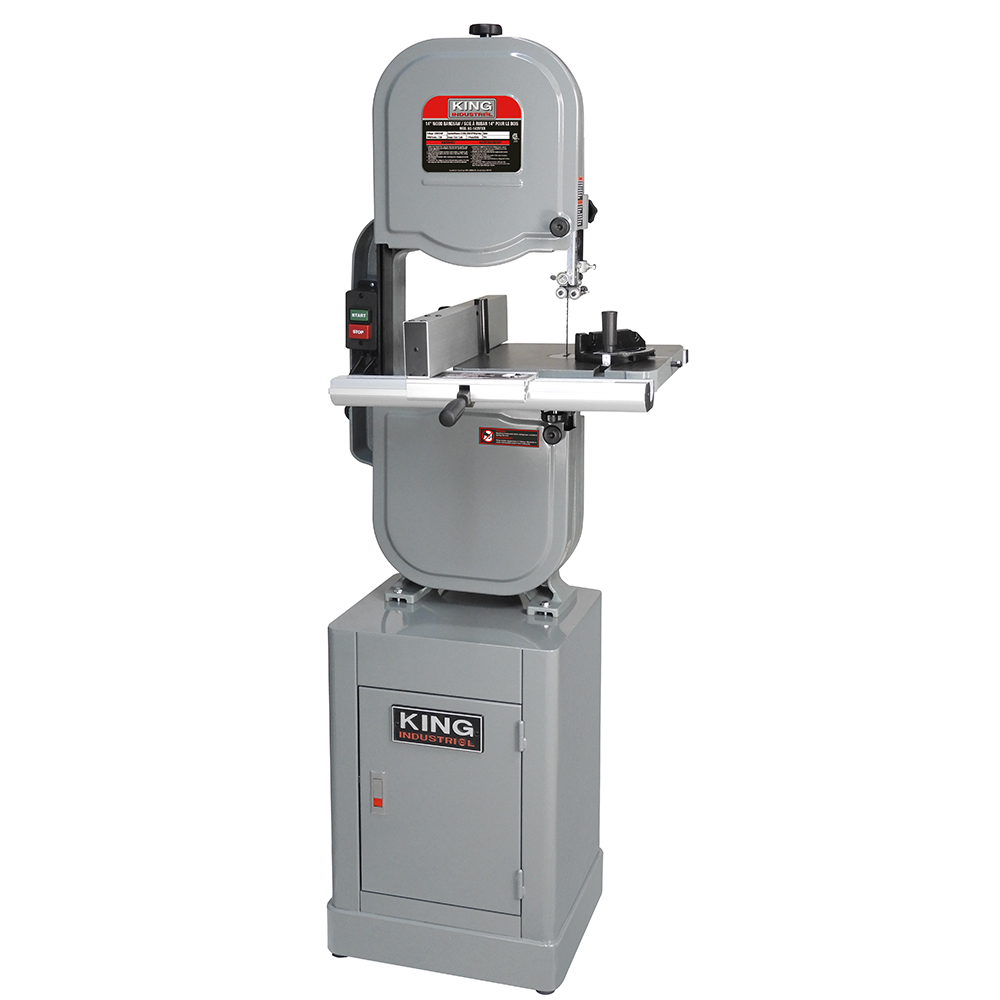

KC-1435FXR 14” WOOD BANDSAW WITH RESAW GUIDE Zoom

MODEL: KC-1435FXR

14” WOOD BANDSAW WITH RESAW GUIDE

  • Powerful 1 HP motor, pre-wired 115V

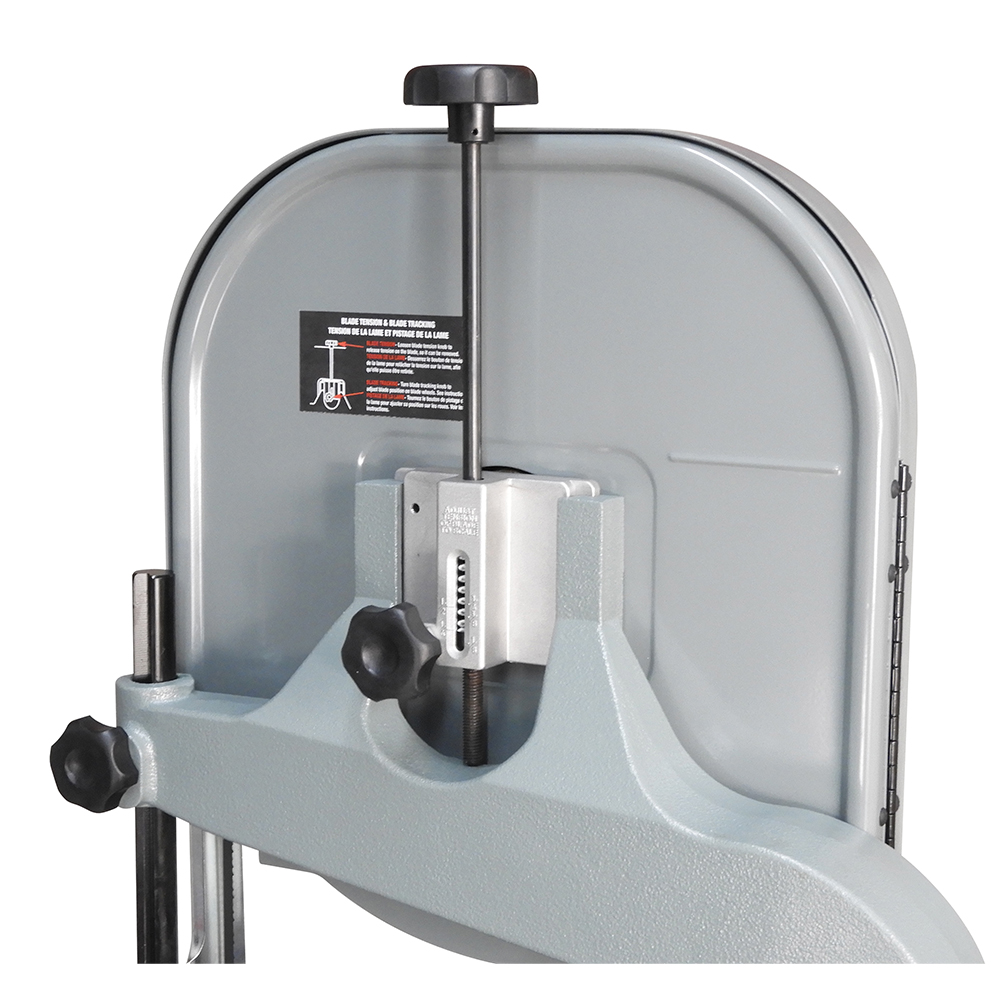

  • Adjustable upper/lower ball bearing blade guide system
  • Excellent for cutting curves and compound angles
  • Two speeds (1,690 & 2,950 SFPM)
  • Square tilting table tilts 15° to the left and 45° to the right
  • Hinged doors for quick access to the blade
  • Built-in brush cleans drive wheel during operation
  • Comes complete with induction motor, blade, miter gauge, enclosed cabinet stand and rip fence with resaw guide
Substitute Banks Item
UPC
772995022250
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CUTTING CAPACITY FRAME TO BLADE13-1/2"
  • MAXIMUM DEPTH OF CUT6"
  • TABLE SIZE14" x 14"
  • TABLE HEIGHT FROM FLOOR44-1/2"
  • BLADE SIZE93" x (1/8" - 3/4") x 0.025"
  • MOTOR7.5 Amp. @ 115 / 3.75 Amp. @ 230V
  • VOLTAGE115V/230V, 1 phase, 60 Hz
  • PRE-WIRED AT115V
  • SPEED2 (1,690, 2,950) SFPM
  • DIMENSIONS (LXWXH) / WEIGHT225" x 29" x 68" / 205 lbs
  • UPC7 72995 02225 0
