MODEL: KC-27FXT/H50X/50

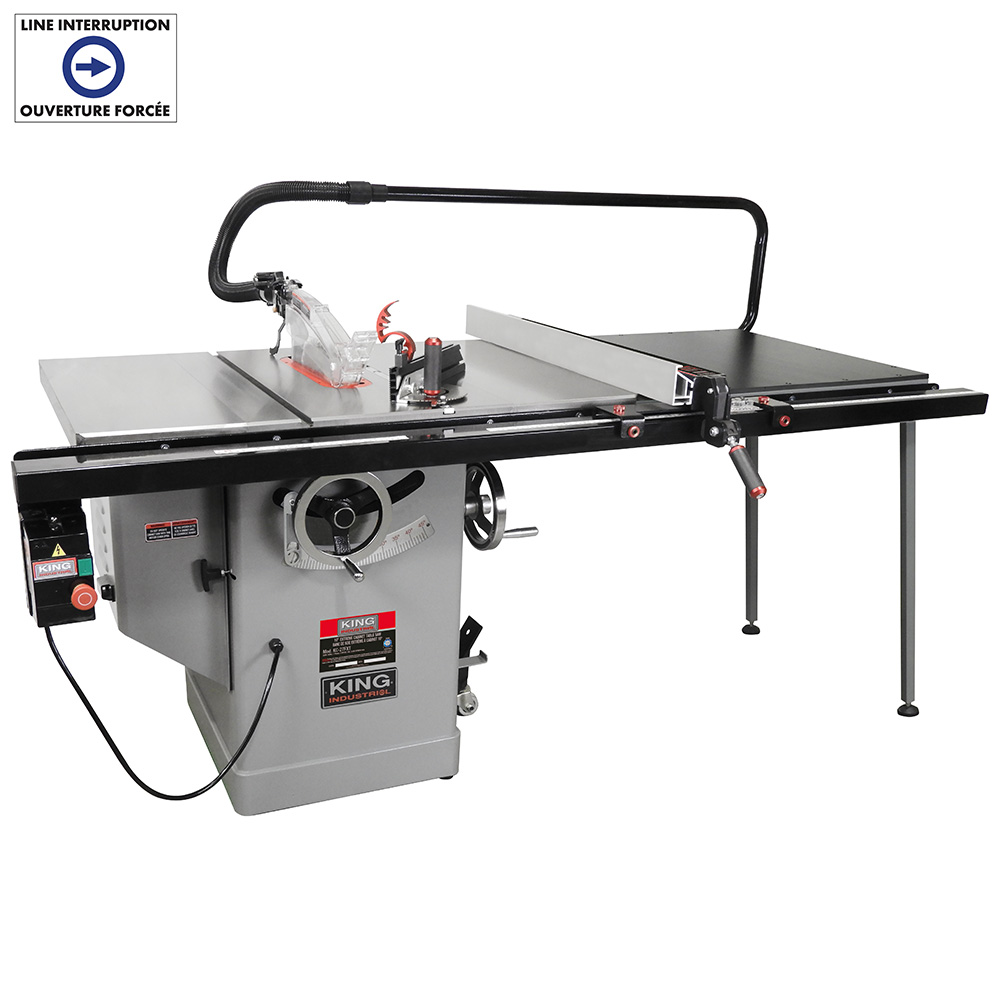

10” EXTREME CABINET TABLE SAW- 50” RIP FENCE & EXTENSION TAB

  • Powerful 3 HP, 220V motor
  • Heavy-duty cast-iron table and extension tables are double ground for accuracy and finish
  • Riving knife system for maximum operator safety
  • Table has "T" slots for miter gauge and beveled front edge
  • Magnetic safety switch

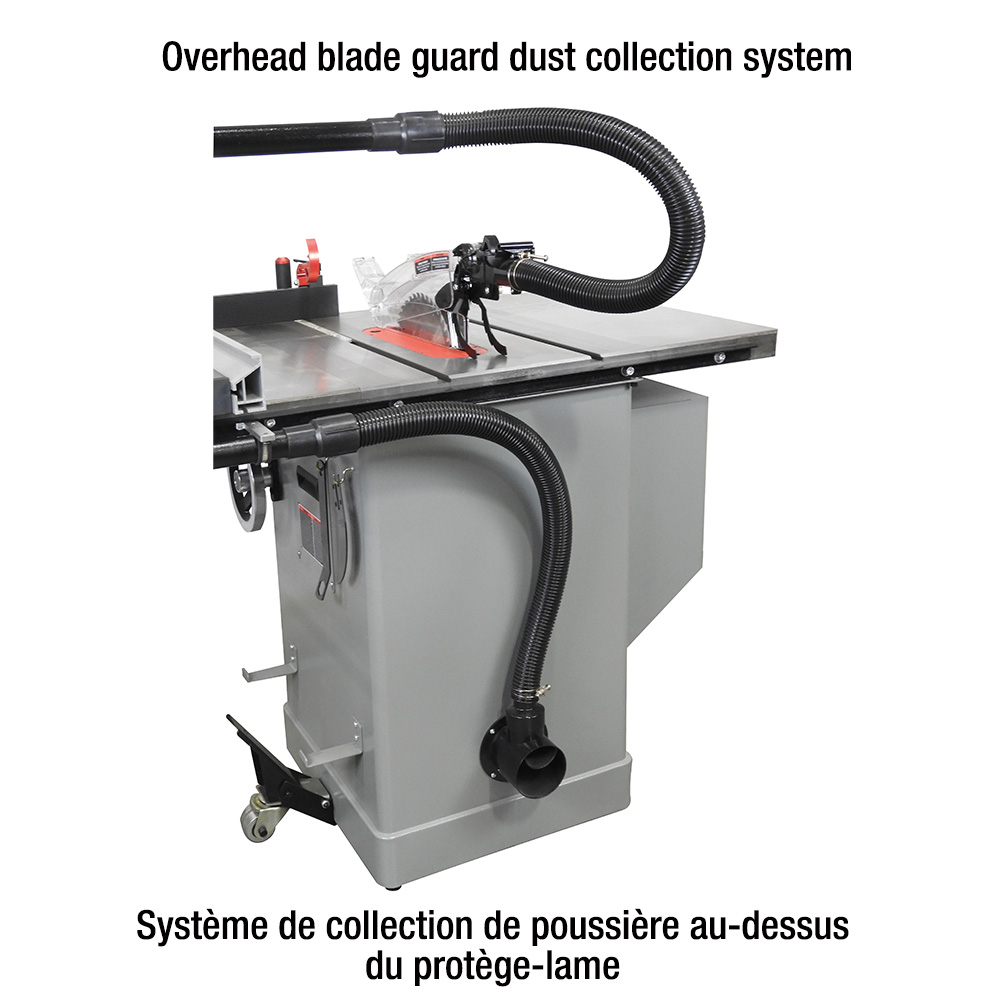

  • Overhead blade guard dust collection system with 4" dust chute
  • Comes with 10" x 40 tooth carbide tipped saw blade, foot lever mobile base with steel wheel,extreme miter gauge, standard and dado table inserts, push stick, storage hooks and hex. keys
  • Choice of extreme rip fence systems with horizontal or vertical position aluminum guide, 50" max rip capacity with 50” melamine extension table
Substitute Banks Item
UPC
772995022380

Specification

Specification

  • Blade diameter10”
  • Blade tiltsLeft
  • Depth of cut at 45°2-1/4"
  • Depth of cut at 90°3"
  • Table size with extensions42-1/8" x 29"
  • Diameter of arbor5/8"
  • Arbor speed4,470 RPM
  • Motor3 HP, 12.5 Amp.
  • Voltage220V, 1 phase, 60 Hz
  • WEIGHT555 lbs
  • UPC7 72995 02238 0
