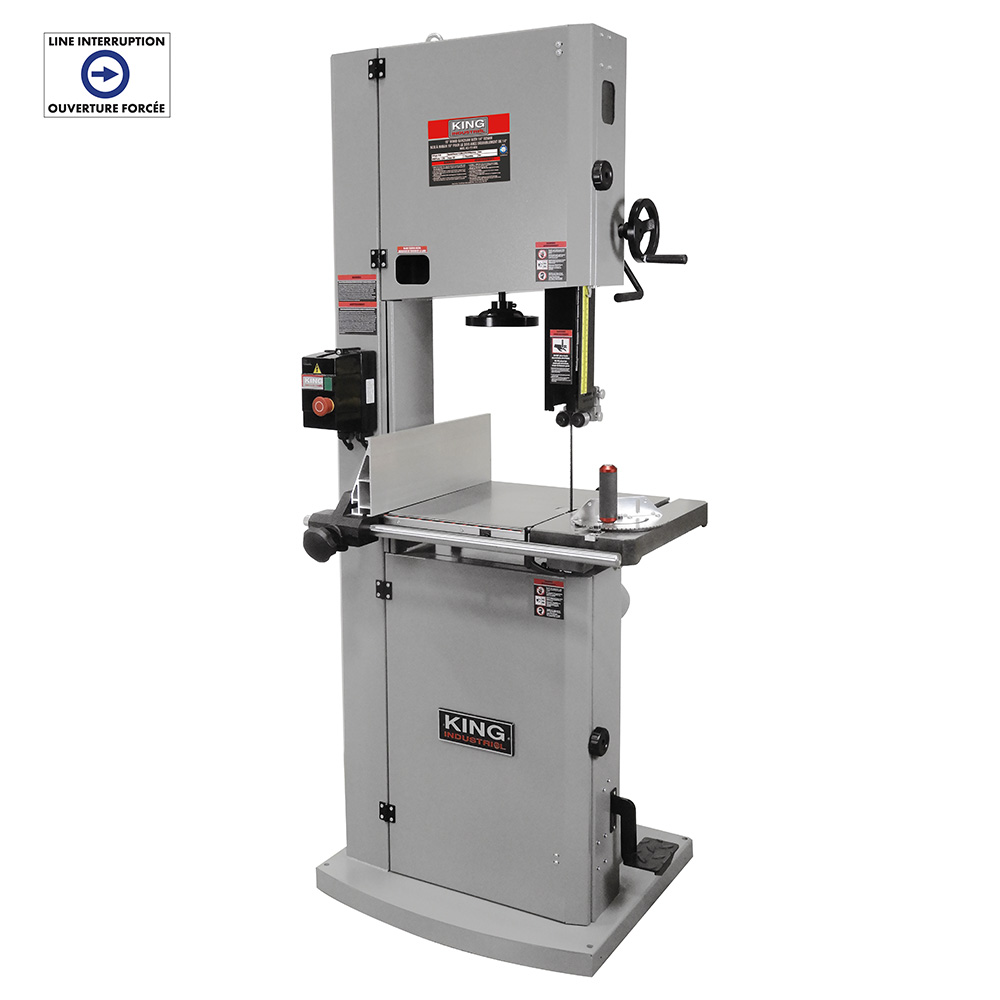

KC-1514FX 15” WOOD BANDSAW WITH 14” RESAW Zoom

MODEL: KC-1514FX

15” WOOD BANDSAW WITH 14” RESAW

  • Powerful 2 HP 120V/240V motor, prewired for 120V
  • Adjustable upper/lower ball bearing blade guide system
  • Rack and pinion height adjustment system
  • Two speeds (1,880 & 3,760 SFPM)

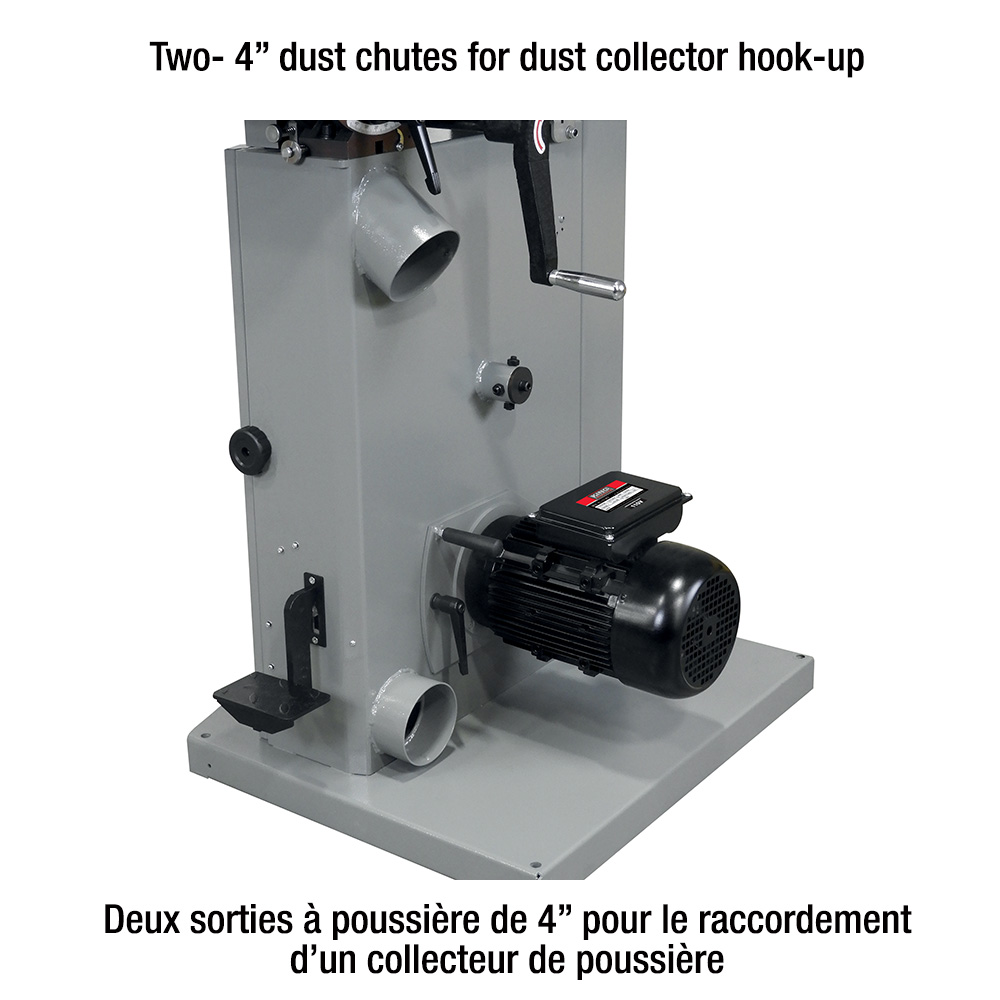

  • Two- 4" dust chutes
  • Quick release blade change lever
  • Square cast-iron table tilts 50 to the left 450 to the right
  • Magnetic switch
  • Hinged doors for quick access to the blade
  • Built-in brush cleans drive wheel during operation

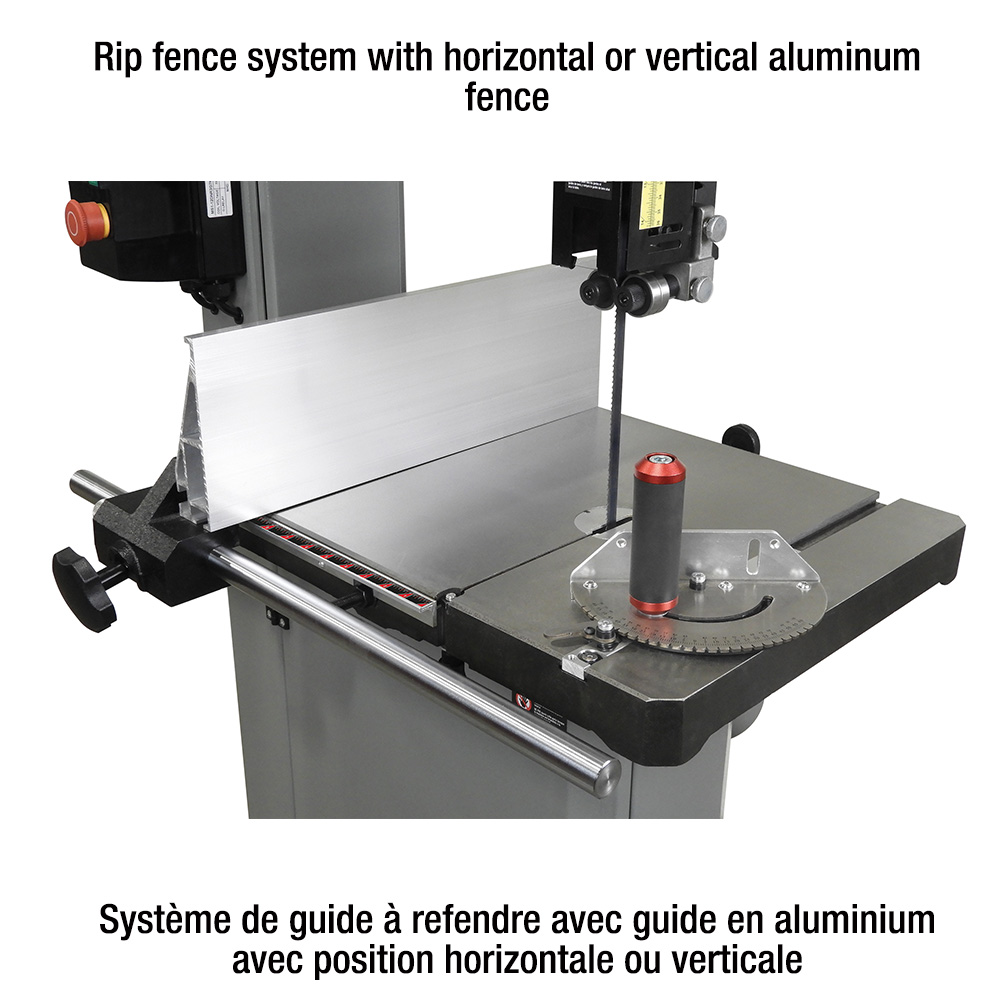

  • Comes complete with motor, blade, aluminum miter gauge and precision rip fence with horizontal or vertical position aluminum guide
Substitute Banks Item
UPC
772995022335
KING INDUSTRIAL

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • Cutting capacity frame to blade15"
  • Table size16" x 21"
  • Table height from floor35"
  • Speeds2 (1,880 / 3,760) SFPM
  • Blade size132-3/4" x (1/8" - 1") x 0.025"
  • Height of cut14"
  • Motor12.5 Amp. / 6.25 Amp.
  • Voltage120V/240V, 1 phase, 60 Hz
  • Voltage120V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT29-1/4" x 29-3/4" x 73" / 377 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT33" x 32" x 80" / 445 lbs
  • UPC7 72995 02233 5
